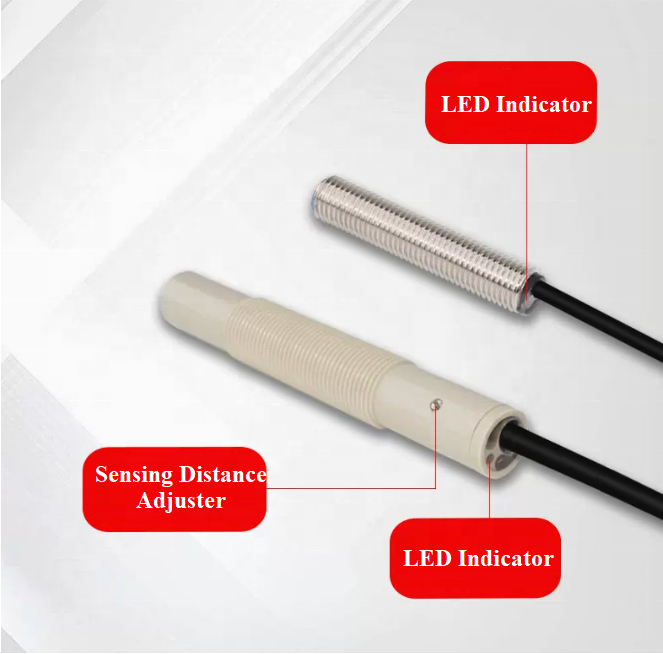

M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric
M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric
M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric
M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric
M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric
M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric
M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric
M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric
M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric
M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric
Specifications
Place of Origin :
Guangdong, China
Brand Name :
BOJKE
MOQ :
1
Model Number :
CR series
Certification :
CE
Price :
$10~$14.6
Payment Terms :
T/T
Supply Ability :
150k
Delivery Time :
5~8 work days
Packaging Details :
kraft paper box with carton box;
Product name :
Capacitive Proximity Sensor
Mounting type :
Non Flush
Description :
High Sensitivity Sensor
Usage :
Detection plastic glass fabric
Output :
NPN Normally closed/Normally open
Power supply :
10~30v DC
Description

M18 M12 M8 Cylindrical Capacitive Proximity Switch Detection Plastic Glass Fabric

Product Description
Product Name Capacitive Sensor
Material stainless steel & PBT
Function Detection
Package Plastic box + inner box

M18 M12 M8 Cylindrical Capacitive Proximity Switch For Detection Plastic Glass Fabric
Model No NPN NO CR12-08NON
NPN NC CR12-08NCN
Product Picture
Mounting Type Unshielded
Sensing Range 8mm adjustable
Repeat Accuracy <5%(Sr)
Hysteresis (Tolerance Distance) <20%(Sr)
Standard sensing object iron 50 x 50 x 1 mm
Response Frequency 100Hz
Operation Voltage DC 12~24V ±10%
Residue Voltage (Voltage Drop) <1.5V
Max Load Current 200mA
Consumption (no-load) Current <15mA
Temperature Drift <15%
Ambient Temperature Operation:-25℃~70℃；Storage:-30℃~80℃,no freezing
Ambient Humidity 35%~85% RH, no condensation
Protection Circuit polarity reversal protection/surge protection/short circuit protection
Protection Level IP65
Material sensing surface/case: ABS
Vibration Resistance 10～55Hz,,dual amplitude 1.0mm, 30 minunts each in X/Y/Z directions
Impact Resistance 300m/S2, X,Y,Z direction each 3 times
Indicator Light when detection object: Yellow
Connection Type 2 meter 3-wire standard cable, length can be customized

Model No PNP/NPN NO CR18-15NON
PNP/NPN NC CR18-15NCN
Mounting Type Unshielded
Sensing Range 2~8mm adjustable
Repeat Accuracy <5%(Sr)
Hysteresis (Tolerance Distance) <20%(Sr)
Response Frequency 100Hz
Operation Voltage DC 10~30V ±10%
Residue Voltage (Voltage Drop) <1.5V
Max Load Current 200mA
Consumption (no-load) Current <15mA
Temperature Drift <15%
Ambient Temperature Operation:-25℃~70℃；Storage:-40℃~85℃,no freezing
Ambient Humidity 35%~85% RH, no condensation
Protection Circuit polarity reversal protection/surge protection/short circuit protection
Protection Level IP65
Material sensing surface/case: PBT
Vibration Resistance 10～55Hz,,dual amplitude 1.0mm, 30 minunts each in X/Y/Z directions
Impact Resistance 300m/S2, X,Y,Z direction each 3 times
Indicator Light when detection object: Yellow
Connection Type 2 meter 3-core standard cable, length can be customized
