Specifications
Place of Origin :
Guangdong, China
Brand Name :
BOJKE
MOQ :
1
Model Number :
BS-401
Certification :
CE
Price :
$65
Payment Terms :
T/T
Supply Ability :
150k
Delivery Time :
5~8 work days
Packaging Details :
kraft box with carton box;
Supply power :
12~24V DC
Usage :
color recognition
Theory :
optical sensing
Output :
NPN/PNP
Detection distance :
18 ~ 28mm
Warranty :
1 Year
Protection :
IP 65
Connection :
2m Cable
Description

High-Speed Optical Color Mark Sensor For Color Detection Identification Different Colors

Product Description
Product Name
Color Mark Sensor
Material
PBT and PC
Function

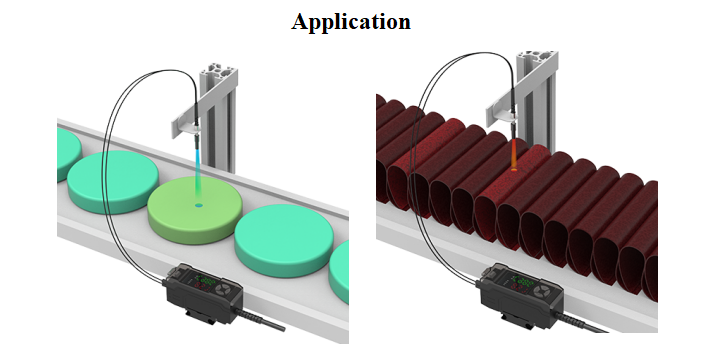

color detection and color recognition
Package
kraft box

High Speed Optical Color Mark Sensor For Color Detection Identification Different Colors
Model # BS-401
Output mode: NPN open collector model, 1 channels output
Detection distance: 18~28 mm
Supply Voltage: 12~24 DC ± 10%
Consumption(no-load) current ≤ 20mA
Light source: red/green/blue 4-element LED
Detection mode mark mode and color mode switchable
Response time: < 130μs
Response frequency: 1000Hz
Input current: < 100mA
Residue voltage: <1.0V
Switch mode L. On (light input operation)/D. on (shading operation) can be switched
Ambient illumination: incandescent lamp ≤3000Lux sunlight ≤10,000Lux
Ambient temperature operation:-10℃~ 55℃ , storage:-25℃~ 75℃ No freezing
Ambient humidity: operation:35%~85% RH, storage:35%~95% RH ,No coagulating
Circuit protection reverse polarity protection, short circuit protection, surge protection.
Protection degree: IP 65
Connection cable: 2 meter/3 core cable
Housing material: ABS+PC
Withstand voltage AC 500V, 50/60Hz, 1 min.
Vibrate resistance: 10-55Hz, complex amplitude 1.5mm, X.Y.Z direction each 2 times
Impact resistance: 500m/s²,X,Y,Z direction each 10 times.
Insulation impedance >20MΩ (DC 500V megger)

FAQ
Q : What is the MOQ?
A : 1pcs for our own available designs
Q : Can I customize a special sensor?
A : Sure
Q : Can I get a lower price if I order large quantities?
A : Yes, Cheaper prices with bigger quantities orders
Q : Can I get a sample?
A : Of course, but you need to pay the sample fee
Q : When will you ship my order?
A : 3 day shipping guarantee for stock item and within 15 days for non-stock items.
Q : How about the quality guarantee period ?
A : Our warranty period is one year since from shipping date.
Q : Can I add or delete items from my order if I change mind?
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
