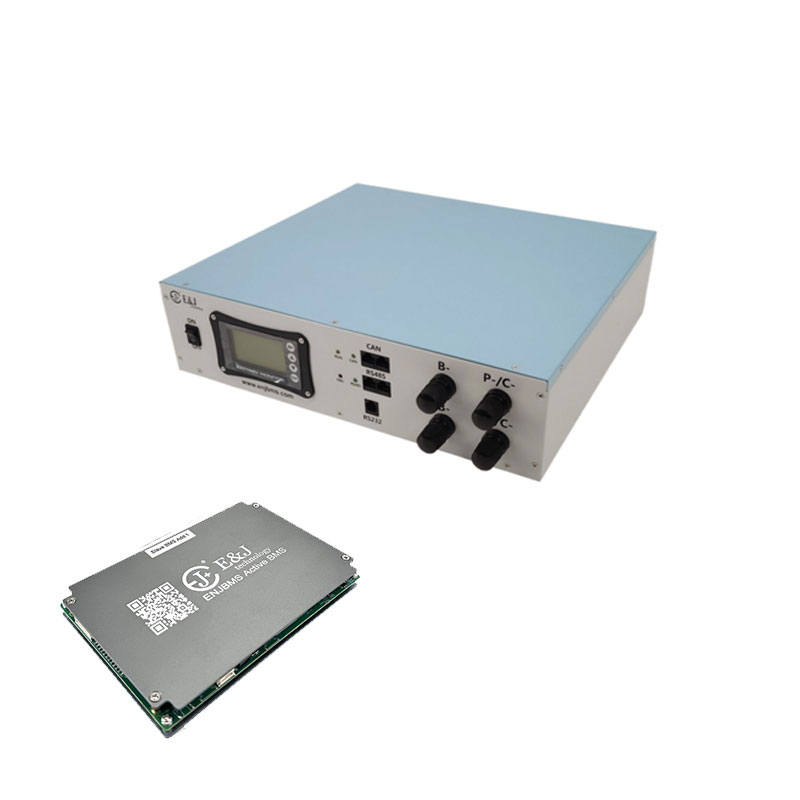

Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
Specifications
Place of Origin :
Guangdong, China
MOQ :
2
Voltage :
80V 96V 144V 156V 400V 800V 1000V
Balancing type :
active balance
Application :
Solar Energy Storage Systems, Industrial
Model Number :
ENJBMS2A24SR
Battery type :
LFP NCM LTO Sodium Li-ion
Price :
$239-255
Brand Name :
ENJ
Communication :
RS485/CANbus/UART/BT/WIFI
Description

Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System

Technical indicators Product number
EJBMS2A24SR200 EJBMS2A24SR500
Number of LFP strings 4~24 4~24
Balanced approach Active balance
Balanced current 0~2A 0~2A
Continuous discharge current 200A 500A
Maximum discharge current (adjustable) 400A 1000A
Overcurrent protection (adjustable) 500A 1200A
Outlet method Common Port
Overcharge protection voltage (adjustable) 3.75V or 4.2V (adjustable)
Overcharge release voltage (adjustable) 3.60V
Overcurrent release time (adjustable) 1S
Over-discharge protection voltage (adjustable) 2.50V
Over-discharge recovery voltage (adjustable) 3.00V
Maximum number of temperature detections 4 pcs
Short circuit protection YES
coulomb meter YES
Display interface Optional
RS485 communication interface Optional
RS232 communication interface Optional
CAN communication interface Optional
Temperature interface Optional
Heating interface Optional
Bluetooth interface Optional

Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery SystemMaster Slave High Voltage BMS Active Balance BMS For Energy Storage Battery SystemMaster Slave High Voltage BMS Active Balance BMS For Energy Storage Battery SystemMaster Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
http://www.enjpower.com/productview_138.htm

Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery SystemMaster Slave High Voltage BMS Active Balance BMS For Energy Storage Battery SystemMaster Slave High Voltage BMS Active Balance BMS For Energy Storage Battery SystemMaster Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System
Master Slave High Voltage BMS Active Balance BMS For Energy Storage Battery System

What are the key features that a ENJBMS should have?

Safety: ENJBMS have features to ensure the safe operation of the lithium battery, such as over-charge protection, over-discharge protection,over-temperature and short-circuit protection.
Accuracy: ENJBMS provide accurate voltage, current, and temperature readings to allow for proper battery monitoring and management.
Flexibility: ENJBMS support various types of lithium battery chemistries(like LiFePO4, LTO, NMC Li-ion) and be adaptable to different battery configurations and sizes.
Reliability: ENJBMS have a robust design and be able to operate consistently and accurately over an extended period of time.
Communication: ENJBMS have a reliable communication interface, such as Bluetooth or RS232, WiFi, I2C, CAN, or RS485, to allow for easy integration with other system components and monitoring software.
Scalability: ENJBMS can scalable to accommodate future growth and changes in battery requirements. Support further software upgraded by bluetooth or ENJBMS PC software.
Cost-effectiveness: ENJBMS have a good balance between performance and cost, and be a cost-effective solution for the specific battery application.
These are the main characteristics that a top-performing Lithium Battery Management System should have.
