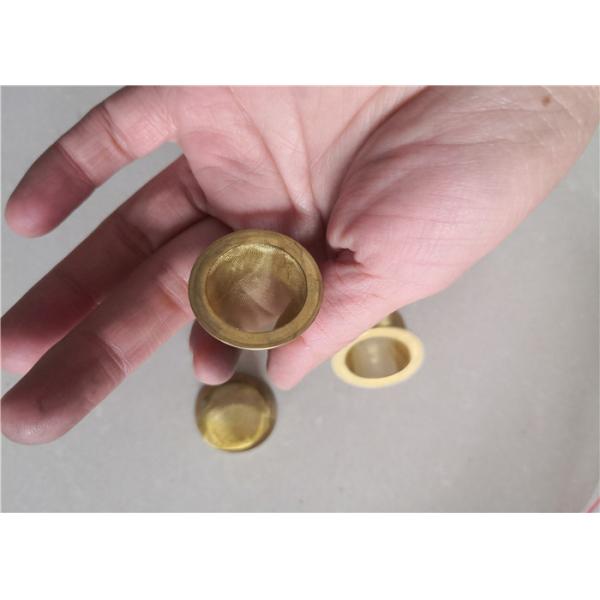

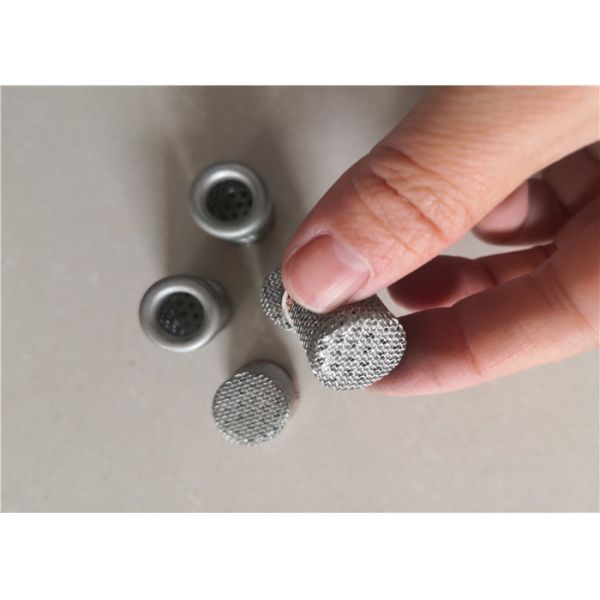

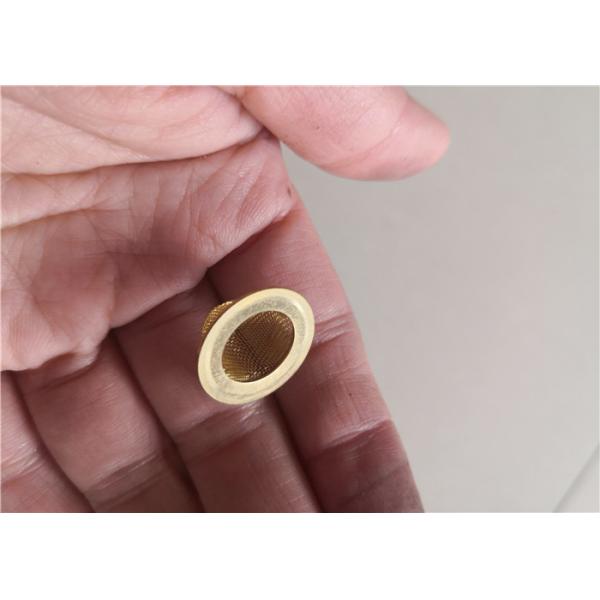

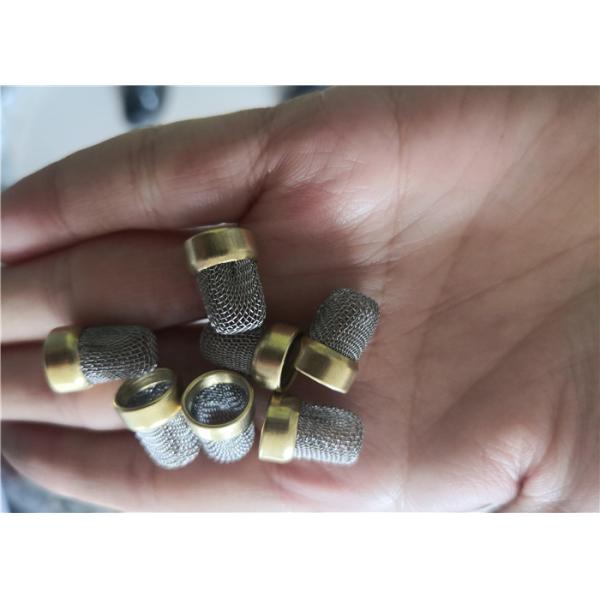

100 Micron Sintered Stainless Steel304 Mesh Round Smoking Pipe Screen Filter
100 Micron Sintered Stainless Steel304 Mesh Round Smoking Pipe Screen Filter
100 Micron Sintered Stainless Steel304 Mesh Round Smoking Pipe Screen Filter
100 Micron Sintered Stainless Steel304 Mesh Round Smoking Pipe Screen Filter
Specifications
Brand Name :
BM
Model Number :
BM-SCREEN
Certification :
CE,CCC
Place of Origin :
China
MOQ :
1 Piece
Price :
Be Negotiated
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
50000 Pcs Per Week
Delivery Time :
7-10 Days After Get The Deposite
Packaging Details :
Water-Proof Plastic Film And Wooden Case
Product Name :
Round Screen Filter
Application :
Filtering
Feeature :
Flexible Working
Material :
SUS304,316,316L
Technology :
Welding Spot
Mesh type :
Plain Weave And Dutch Weave
Tooling :
With Charge
Layers :
Single,Double,3 Layers
Description

100 Micron Sintered Stainless Steel304 Mesh Round Smoking Pipe Screen Filter

Product Description

Material type:
stainless steel 201,304 316 316L,2080,601,carbon steel,iron,copper,brass
Shape:
strainer,sieve,element,cartridge,disc,pleasted filter
processing way:
welded,dot welded,woven,folded,punching,sintered
shape:
rectangle,square,round,oval,circular,rectangular,cap,waist and abnormity
structure:
single layer,double layer or multi-layer
edge treatment:
edge surounded with stainless steel sheet,bigger stainless steel wire, mesh folded then spot welded
raw material:
stainless steel plate,woven wire mesh,sintered wire mesh,expanded wire mesh,perforated wire mesh,wedge wire screen,black wire mesh,galvanized wire mesh and so on
size:
desinged according to customer`s requirement
filtering rate:
2-400micron
hole shape:
square,rectangle,round,diamond,and other special kinds as per customer`s requirement.


Product Benifits

  1. Highly durable with robust structure.
  2. Anti-abrasive & anti-corrosive in nature.
  3. High quality and filtration capacity.
  4. Precise fitting filter elements.
  5. Optimum cost-performance ratio.
  6. Constant quality control during production

Product Parameters

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63


Product Usage

1.Suction line strainers

2.Filters for Polyester fiber production

3.Woven fabrics,color masterbatch

4.Oil & Fuel Filters

5.Coffee filtration
