12x64 Extruder Screen Mesh Round Shape For Polymer Filters Processing
12x64 Extruder Screen Mesh Round Shape For Polymer Filters Processing
12x64 Extruder Screen Mesh Round Shape For Polymer Filters Processing
12x64 Extruder Screen Mesh Round Shape For Polymer Filters Processing
12x64 Extruder Screen Mesh Round Shape For Polymer Filters Processing
12x64 Extruder Screen Mesh Round Shape For Polymer Filters Processing
Specifications
Material :
Stainless Steel
Mesh type :
60 Mesh
Shape :
Round Shape
Recyling material :
PP,PE,PVC,ABS
Size :
Could Do As Your Request
Diameter :
200Mm 250Mm 300Mm 350Mm
Brand Name :
BM
Model Number :
BM-screen
Certification :
CCC,CE
Place of Origin :
China
MOQ :
5 Pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
2000Pcs Per Day
Delivery Time :
10 Days After Getting The Deposite
Packaging Details :
Water-Proof Plastic Film And Wooden Case
Description
Manufacture 12x64 Extruder Screen Mesh For Polymer Filters Processing
Size is for 108x660mm
Material:mild steel
The size could be done as your request
12x64 Extruder Screen Mesh Round Shape For Polymer Filters Processing
Extrusion metal screen are including:stainless steel,mild steel,galvanized...
Shape including kinds of shapes,rectangle,kidness...
Specification generally:12x64,14x88,24x110,30x150,40x200,50x250...according to your actually.
Plastics extrusion is a high-volume manufacturing process in which raw plastic is melted and formed into a continuous profile. Extrusion produces items such as pipe/tubing, weatherstripping, fencing, deck railings, window frames, plastic films and sheeting, thermoplastic coatings, and wire insulation.

This process starts by feeding plastic material (pellets, granules, flakes or powders) from a hopper into the barrel of the extruder. The material is gradually melted by the mechanical energy generated by turning screws and by heaters arranged along the barrel. The molten polymer is then forced into a die, which shapes the polymer into a shape that hardens during cooling.
Typical plastic materials that are used in extrusion include but are not limited to: polyethylene (PE), polypropylene, acetal, acrylic, nylon (polyamides), polystyrene, polyvinyl chloride (PVC), acrylonitrile butadiene styrene (ABS) and polycarbonate.

Speciofication:


Mesh		 Wire Dia. (MM) Material(AISI)
12meshX64mesh 0.58/0.40 304 or 316
24meshX110mesh 0.36/0.25 304 or 316
14meshX88mesh 0.50/0.33 304 or 316
30meshX150mesh 0.18/0.14 304 or 316
40meshX200mesh 0.14/0.11 304 or 316
50meshX250mesh 0.10/0.071 304 or 316
80meshX700mesh 0.06/0.05 304 or 316
165meshX800mesh 0.071/0.040 304 or 316
165meshX1400mesh 0.05/0.032 304 or 316
200meshX1800mesh 0.05/0.03 304 or 316
325meshX2300mesh 0.030/0.025 316L
400meshX2800mesh 0.030/0.02 316L

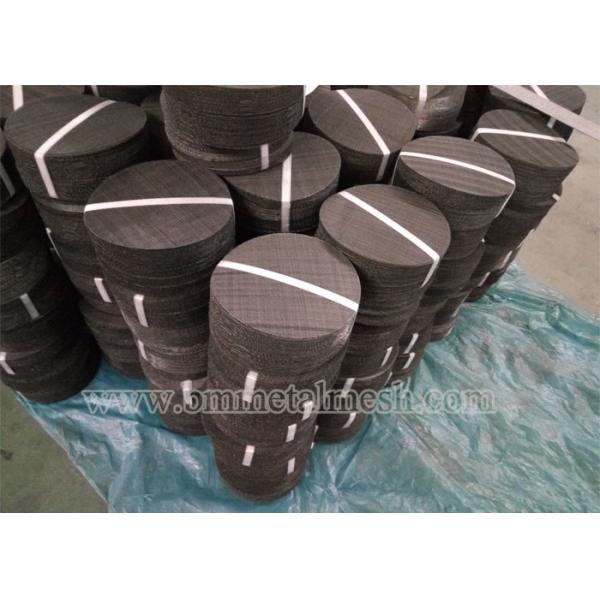

Round shapes of Extruder screen filter
12x64 Extruder Screen Mesh Round Shape For Polymer Filters Processing

Product Characters

  • Our extruder screens are available in different size, variants and specifications according to precise requirement of customers
  • Our products are highly durable with robust structure
  • We manufacture products by considering international quality standards and it becomes anti-abrasive & anti-corrosive in nature
