Stainless Steel Reverse Dutch Weave Wire Mesh/Continuous Screen Mesh Belt
Stainless Steel Reverse Dutch Weave Wire Mesh/Continuous Screen Mesh Belt
Stainless Steel Reverse Dutch Weave Wire Mesh/Continuous Screen Mesh Belt
Stainless Steel Reverse Dutch Weave Wire Mesh/Continuous Screen Mesh Belt
Specifications
Key Word :
Reverse Dutch Weave Wire Mesh
Product :
Continuous Screen Mesh Belt
Mesh :
260/40
Width :
97-400Mm
Application :
Plastics Extruder, Stretch Film Machine
Length :
10M/20M
Feature :
Good Filtering Precision
Brand Name :
BM
Model Number :
BM-EXTRUDERSCREEN
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 roll
Price :
$6.53-$33.69 Per Square Meter
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500 m² Per Week
Delivery Time :
15 Days After Get The Deposite

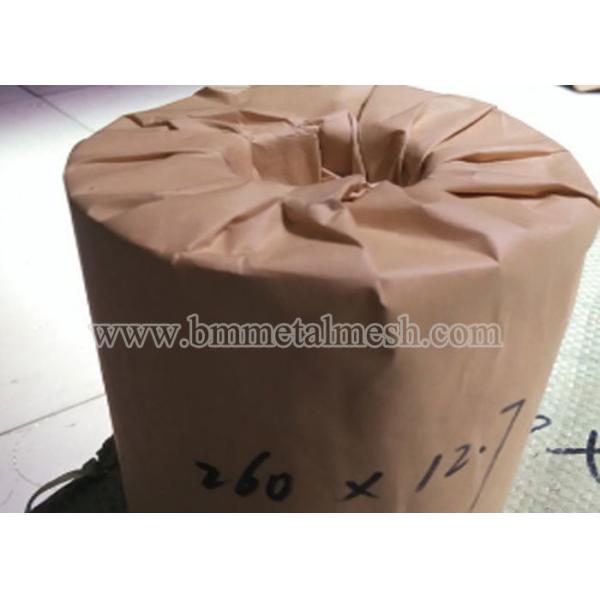

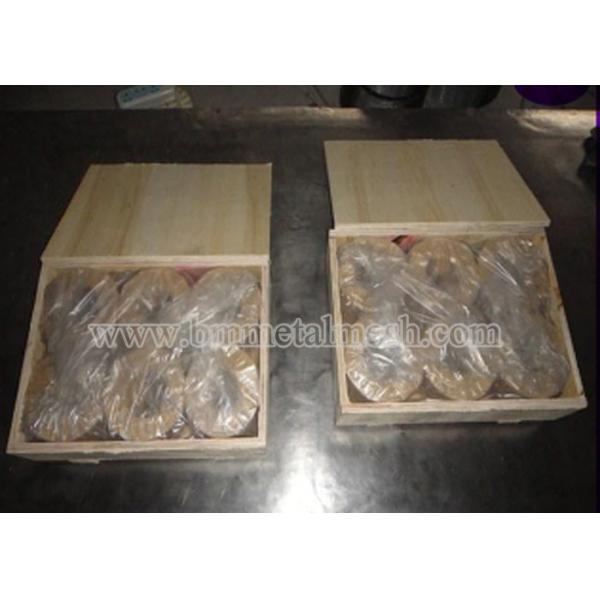

Packaging Details :
Waterproof Paper Inside,Carton Or Plywood Case Outside
Material :
Stainless Steel
Technique :
Reverse Dutch Weave
Description

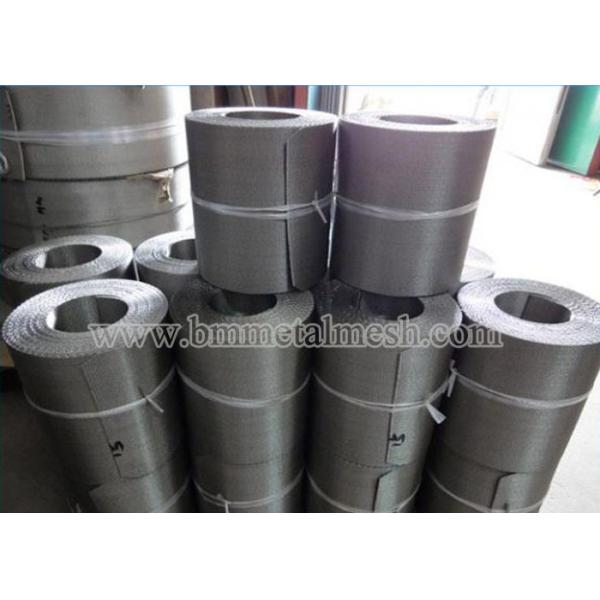

Stainless Steel Reverse Dutch Weave Wire Mesh/Continuous Screen mesh Belt


we have different kind of mesh size : 260x40 ,152x24,72x15 ,,,, also 160 ,180 ,200 mesh

Different kind of width size :97mm,127mm,130mm,150mm,160mm , etc


Mesh belt : 132x17 mesh, 152x24 mesh, 260x40 mesh, 72x15mesh.150x17 mesh.

132x17mesh: 0.3x0.45mm,4.4kg/sqm.

152x24mesh: 0.3x0.4mm. 3.5kg/sqm.

260x40mesh: 0.15x0.27mm.2.1kg/sqm.

72x15mesh: 0.45x0.55mm. 5kg/sqm.

Width: 97mm, 100mm, 110mm, 120mm, 127mm, 130mm, 133mm, 150mm.

Length: 10m , 20m / roll.


Material: Stainless steel 304.

Woven style: Reversed dutch woven .

Used on the automatic screen changer, for filtering.


Custom designs are also available


Basic specifications


Mesh
Wire Dai.(mm) Thickness(mm) Width(cm)
45x15
0.45x0.6 1.75 9.7-28
48X10
0.50X0.50 3.6kg/sq.m 9.7-28
72x15
0.45x0.55 1.7 9.7-28
90X17
0.23X0.55 2.48kg/sq.m 9.7-28
110X17
0.23X0.55 2.6kg/sq.m 9.7-28
110X21
0.23X0.35 2.0kg/sq.m 9.7-28
120x16
0.35x0.45 1.36 9.7-28
132x17
0. 3x0.45 1.3 9.7-28
152x24
0.3x0.40 1.2 9.7-28
160x18
0.28x0.45 1.27 8-85
200x40
0.15x0.27 0.7 8-130
260x40
0.15 x0.27 0.65 8-130
300x40
0.15 x0.27 0.65 8-130
360x40
0.13 x0.27 0.6 8-130
Special specification we can produce according to customers' requirements.


Stainless Steel Reverse Dutch Weave Wire Mesh/Continuous Screen Mesh Belt

260/40 Extruded Screen Mesh
