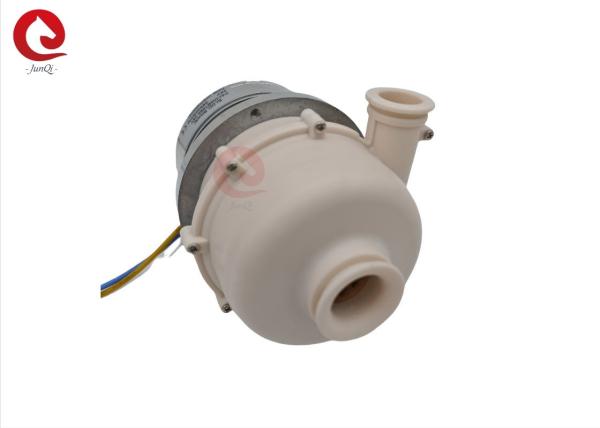

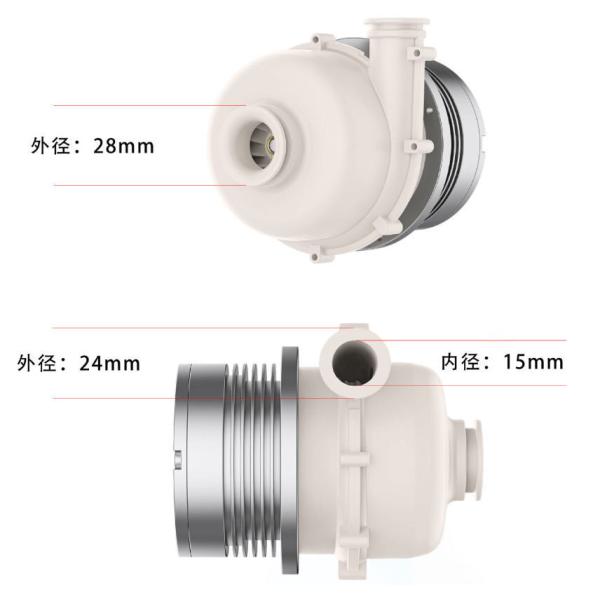

OWB7095-24V 23kPa Small Turbo Air Fan 24VDC Brushless Blower For Air Cushion Machine

Specifications

Brand Name :

Junqi

Model Number :

OWB7095-24V

Certification :

CE,ROHS,

Place of Origin :

China

MOQ :

5pcs

Price :

(Negotiable)

Payment Terms :

T/T,PAYPAL

Supply Ability :

1000PCS/Month

Delivery Time :

as confirmed

Packaging Details :

suite for export

Model :

OWB7095-24V

Max.Speed :

45150rpm

Rated Voltage :

24VDC

Rated Current :

12A

Rated Power :

288W

Max.air pressure :

23kPa

Max.air flow :

680L/min

Min.air flow :

35L/min

Description

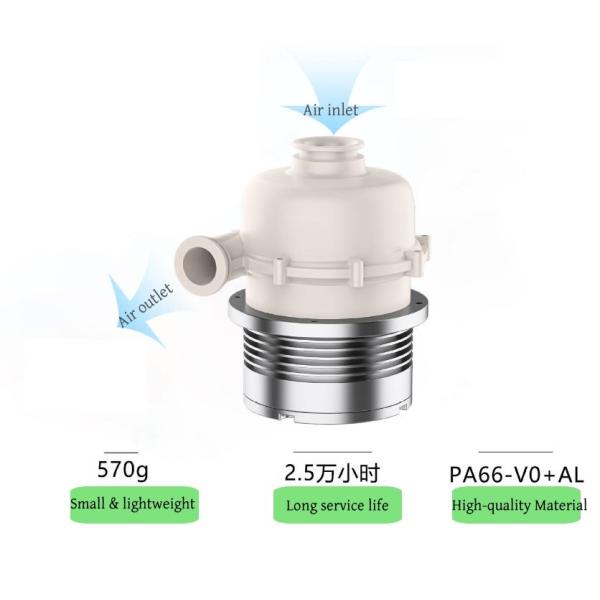

OWB7095-24V 23kPa Small Turbo Air Fan 24VDC Brushless Blower For Air Cushion Machine

Technical Parameters:

Model	OWB7095-24V
Max.continuous operationg state
Rated voltage	24VDC
Rated current	12A
Power consumption	288W
Free blowing speed	38500rpm
Max.air pressure(Flow=0)	23
Power@Max.pressure	100W
Speed@Max.pressure	45150rpm
Max.air flow(Pressure=0)	680L/min
Power@Max.flow	260W
Speed@Max.flow	40830rpm
Min air flow	35L/min

Air Blower Applications:

Air Purify System, Soiless Culture, Fuel Cell, Sprayer, Air Cushion Machine, Dust Catcher, Cooling System, Hand Dryer, Plastuc Bonding Machine, CPAP, BIPAP, Sputum Aspirator, Vacuum Cleaner, Seeding Machine, Industrial Sewing Machine, Intelligent Toilet, Soldering Device, Polishing Device, Car Vacuum, Truck Emission Improve System, Medical equipment, Beauty air cooler, Sampling instrument, Express air cushion machine, Expectorant vest....

Package:

FAQ:

Q: Can we connect this centrifugal air blower directly onto power source?

A: This blower fan is with BLDC motor inside and it needs a controller board to run.

Q: What kind of power source shall we use to drive this blower fan?
A: Generally, our customers use 24vdc switching power supply or Li-on battery.

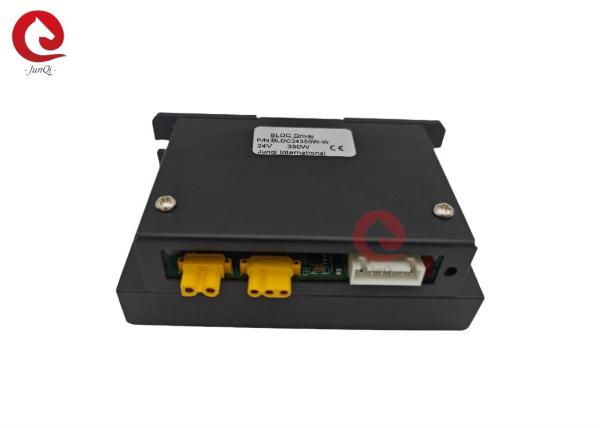

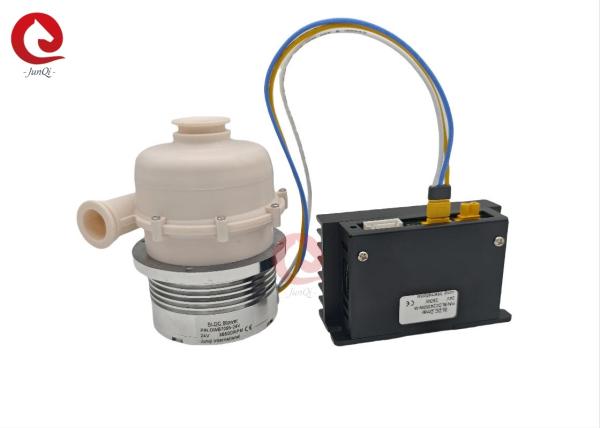

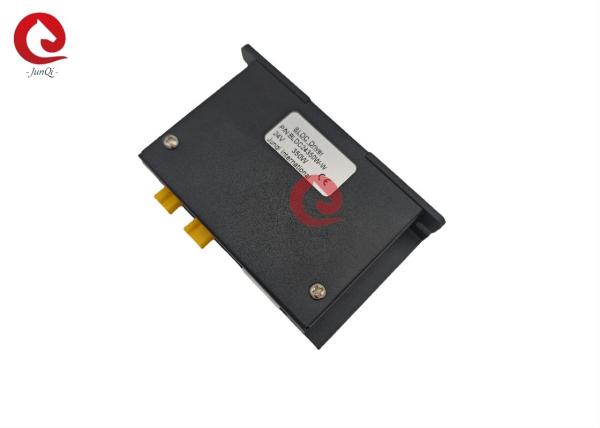

Q: Do you also sell controller board for this blower fan?
A: Yes, we can supply adapted controller board for this blower fan.

Q: How to change impeller speed if we use your controller board?
A: You can use 0~5v or PWM to change speed. Our standard controller board is also with a
potentiometer to change speed conveniently.

Q: What is the MTTF of this centrifugal air blower?
A: MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.

Q: Can we use this centrifugal air blower to suct water?
A: This blower fan can not be used to suck water. If you need to suck water, you can ask us to
choose proper item for this special working condition.

Q: Can we use this centrifugal air blower to suck dust directly?
A: This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.

Q: What can do if the working condition is dirty?
A: A filter is strongly recommended to assemble onto the the inlet of the blower fan

Q: How to decrease the noise of the blower?
A: Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.

For more informantion, please contact with us via email: ivanzhu@junqitrading.com
