OWB13075-12V High Performance Silent Brushless Fan Portable Blower In Vibration Vest / Medical
OWB13075-12V High Performance Silent Brushless Fan Portable Blower In Vibration Vest / Medical
OWB13075-12V High Performance Silent Brushless Fan Portable Blower In Vibration Vest / Medical
OWB13075-12V High Performance Silent Brushless Fan Portable Blower In Vibration Vest / Medical
OWB13075-12V High Performance Silent Brushless Fan Portable Blower In Vibration Vest / Medical
OWB13075-12V High Performance Silent Brushless Fan Portable Blower In Vibration Vest / Medical
OWB13075-12V High Performance Silent Brushless Fan Portable Blower In Vibration Vest / Medical
OWB13075-12V High Performance Silent Brushless Fan Portable Blower In Vibration Vest / Medical
Specifications
Brand Name :
JEUNKEI
Model Number :
OWB13075-12V
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
5pcs ( sample available)
Price :
USD35-USD50/PC
Payment Terms :
T/T, , Western Union, Paypal
Supply Ability :
1000pcs per month
Delivery Time :
depend on the order quantity /Negotiable
Packaging Details :
Suite for export
Name :
Brushless DC Blower Fan
Model No. :
OWB13075-12V
Voltage :
12VDC
Power :
90W
Size :
130*117*75mm
Air Volume :
700L/min
Wind Speed :
13500rpm
Pole Paires of Magnets :
4P=2
Noise :
45dB(1m-kpa)
Description

The OWB13075 is high-perfrmance blower, it combines high airflow and low power consumption to meet a variety of applications, helps customers meet air flow requirements and improves the service life of the product at the same time.

Blower Technical Parameter:

Model OWB13075-12V OWB13075-24V
Max.Flow 650L/min 800L/min
Max.Pressure 4kpa 6.5kpa
Current 7A 6.3A
Speed 13100rpm 16000rpm
Voltage Range 7.8~14.8V 7.8~30V
Power 84W 150W
Resistance 210mΩ 440mΩ
Inductance 89-95uH 180-182uH
Rotor inertia 25.72gcm² 25.72gcm²
Noise 48dB 48dB
MTBF 25000hours 25000 hours
Using Temperature -20~90℃ -20~90℃
Weight 340g 340g
Hall Angle 120° 120°
Pole pair 4P=2 49=2
Connection Y Y
IP Class IP54 IP54

Dimensions:

OWB13075-12V High Performance Silent Brushless Fan Portable Blower In Vibration Vest / Medical

Wiring Diagram
No. Wires Code
1 White U
2 Blue V
3 Yellow W
4 Black GND
5 Gray Hall A
6 Green Hall B
7 Orange Hall C
8 Red +5V

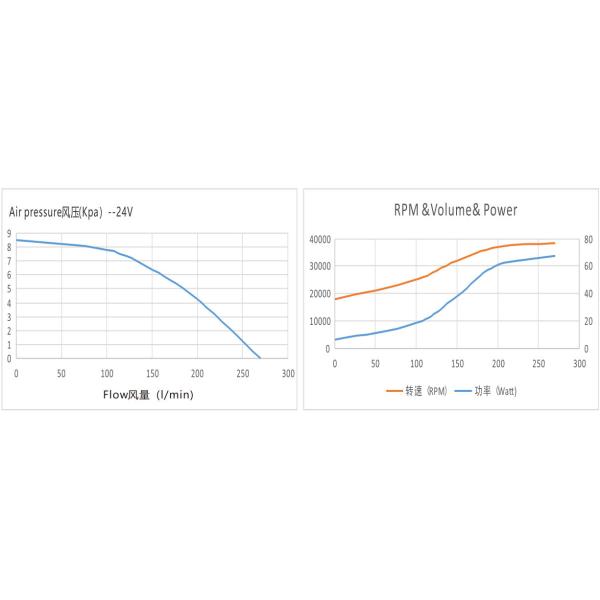

Flow and Pressure Curves:

OWB13075-12V High Performance Silent Brushless Fan Portable Blower In Vibration Vest / MedicalOWB13075-12V High Performance Silent Brushless Fan Portable Blower In Vibration Vest / Medical

Applications:

CPAP, Clinical Ventilator, Home Ventilator, Breathing Machine, Fuel Cell, Express Air Cushion Machine, Beatury Air Cooler, Sampling Instrument, Expectorant Vest.

OWB13075-12V High Performance Silent Brushless Fan Portable Blower In Vibration Vest / Medical
