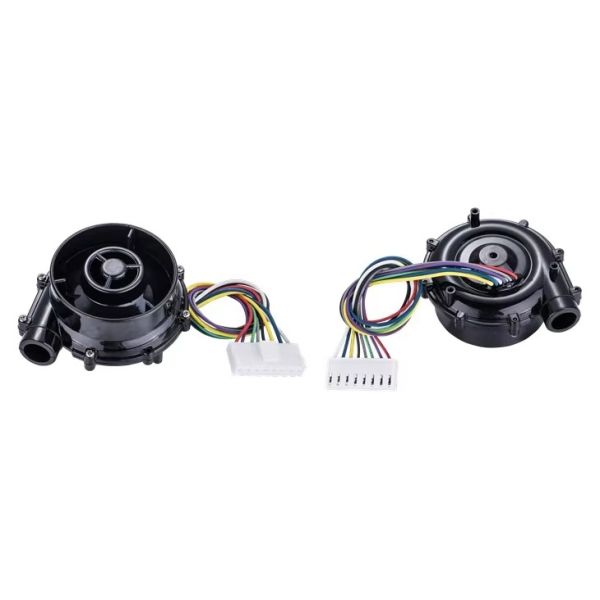

OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan
OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan
OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan
OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan
OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan
OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan
OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan
OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan
Specifications
Brand Name :
JEUNKEI
Model Number :
OWB7040-24V
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
5pcs ( sample available)
Price :
USD24-USD30/PC
Payment Terms :
T/T, , Western Union, Paypal
Supply Ability :
1000pcs per month
Delivery Time :
depend on the order quantity /Negotiable
Packaging Details :
Suite for export
Name :
Brushless DC Centrifugal Blower Fan
Model No. :
OWB7040-24V
Voltage :
24VDC
Static Pressure :
6.8Kpa
Bearing :
NMB Ball Bearing
Motor Type :
3-Phase DC Brushless Motor
Life Time(MTTF) :
＞12000 hours ( Under 25℃）
Warranty :
12 Months
Outlet Tube Diameter :
OD12mm- ID12mm
Unit Size :
D70mm*H37mm
Weight :
80g
Color :
Black
Description

OWB7040 Blower Fan Parameter:

Model OWB7040-24V
Voltage 24VDC
Free-Blowing
Speed 37000±7% rpm
Current 2.7±10%A
Air Flow 25.5±10%m³/h
At Static Pressure
Speed 45000±7%rpm
Current 0.8±15%A
Air Pressure 6.5±10%Kpa
At Working Point
Air Pressure 4Kpa
Speed 40000±10%rpm
Current 1.9±10%A
Air Flow 13±10%m³/h

Notes:

1. Don't use max pressure as working point, this point is not safe since airflow is too small.

2. To add a filter onto the inlet can make the blower run longer time.

3. The right impeller run direction is CCW.

OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan

Drawing:

OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan

Wiring Diagram
Pin 1 Red Vcc
Pin 2 Purple Hall A
Pin 3 Green Hall B
Pin 4 Grey Hall C
Pin 5 Black GND
Pin 6 Yellow Phase A
Pin 7 Blue Phase B
Pin 8 White Phase C

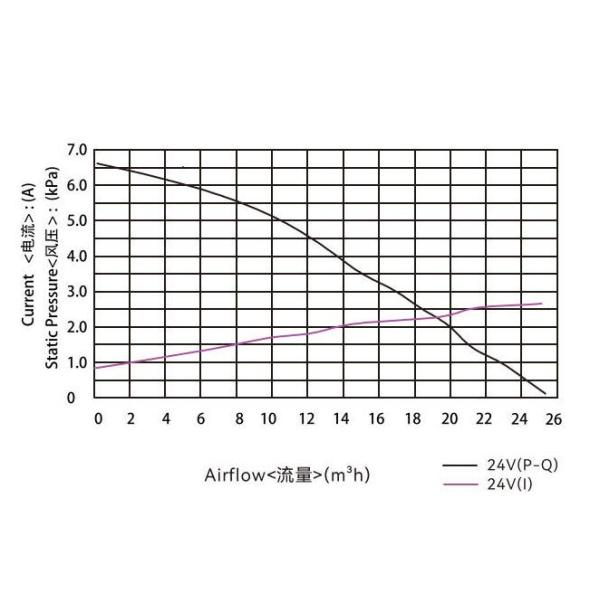

P-Q Performance Curve:

OWB7040-24V 60mm Rework Soldering Station Blower Small Size Electric DC Centrifugal Air Blower Fan

Applications:

1: Buffer air cushion
2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment
