Specifications
Brand Name :
Bestone
Model Number :
HT-6510AM
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
2
Price :
US$467
Payment Terms :
T/T,Western Union
Supply Ability :
more then 100pcs per month
Delivery Time :
3-5 working days
Packaging Details :
plastic carrying case and white paper box
Display :
4-bit 10 mm
Test range :
20-90HAM
Press needle size :
RO.79mm
press needle stroke :
1.25mm
press needle end force :
324mN 764mN(33.04gf-77.91gf)
Measurement thickness (or 0 coil diameter) :
H>1.5mm
Measurement accuracy :
≤ ±1 H
Resolution :
0.1H
Suitable for type 0 ring diameter :
5-80mm
AM Shore Hardness tester/Thin rubber hardness tester :
1, mainly used for measuring thin soft rubber, such as natural rubber, synthetic rubber, sample thickness of more than 1.5mm rubber;
Description
Shore Hardness Tester HT-6510AM
Applications
AM Shore Hardness tester / Thin rubber hardness tester designed for:
  • Measuring thin soft rubber including natural rubber and synthetic rubber with sample thickness exceeding 1.5mm
  • Testing small O-rings, sealing rings, sealing gaskets, and other thin molding products or thin rubber raw materials
  • Suitable for thickness (O-ring diameter): H > 1.5mm; Appropriate ring diameter: 5mm-80mm
Key Features
  • Determines hardness of ordinary vulcanized rubber and analogues with sample thickness above 1.5mm
  • Measures Shore AM hardness range: 20HAM - 90HAM
  • Complies with standards: GB/T 531.1-2008, DIN 53505, ISO 868, ISO7619, ASTM D 2240, JIS K7215
  • Advanced Micro-computer LSI circuit and crystal time base for high accuracy measurement
  • Digital display eliminates reading errors and guesswork
  • RS232C interface for PC communication, recording, printing, and analysis with optional software
  • Automatic power off function for energy conservation
  • Optional operation stand ensures consistent measurement force for improved accuracy and repeatability
Technical Specifications
Display 4-bit 10 mm liquid crystal display
Display Range 0-100HAM
Test Range 20-90HAM
Press Needle Size R0.79mm
Press Needle Stroke 1.25mm
Press Needle End Force 324mN - 764mN (33.04gf - 77.91gf)
Measurement Thickness H > 1.5mm
Resolution 0.1H
Measurement Accuracy ≤ ±1 H
Suitable O-ring Diameter 5-80mm
Implementation Standard GB/T 531.1-2008
Power Supply 2 * 1.5V AAA batteries
Operating Conditions Temperature: 0-40°C, Humidity: <80%
Dimensions 176 * 65 * 27mm
Weight Approximately 170g (excluding batteries)
PC Interface RS232C interface
Additional Functions: Peak latch, average calculation, undervoltage indicator
Power Management
The instrument features two shutdown modes: manual and automatic. Press the multi-function key to manually shut down when "OFF" appears on display. Automatic shutdown occurs after 10 minutes of inactivity to conserve power.
Standard Accessories
Main unit, Carrying case, Operation Manual
Optional Accessories
RS232C interface cable and software

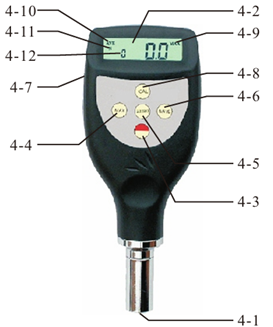

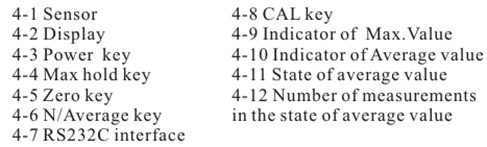

Front Panel Overview
HT-6510AM Shore Hardness Tester Durometer with 4-bit 10 mm Display 20-90HAM Test Range and RS232C Interface HT-6510AM Shore Hardness Tester Durometer with 4-bit 10 mm Display 20-90HAM Test Range and RS232C Interface
