HT-6510S-A/B/C Sand Mold Hardness Tester with 4 Digits LCD Display
HT-6510S-A/B/C Sand Mold Hardness Tester with 4 Digits LCD Display
HT-6510S-A/B/C Sand Mold Hardness Tester with 4 Digits LCD Display
HT-6510S-A/B/C Sand Mold Hardness Tester with 4 Digits LCD Display
HT-6510S-A/B/C Sand Mold Hardness Tester with 4 Digits LCD Display
HT-6510S-A/B/C Sand Mold Hardness Tester with 4 Digits LCD Display
Specifications
MOQ :
2
Price :
negotiable
Brand Name :
Bestone
Model Number :
HT-6510S-A/B/C
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Supply Ability :
more than 500pcs per month
Delivery Time :
5-8 working days
Packaging Details :
plastic carrying case and white paper box
Shape and Size of Indenter :
Spherical R2.50,R12.70,R1.20
Unit :
Ha,Hb.Hc
Display :
4 Digits, 10mm LCD
Parameters :
Tested Result / Mean Value / Max. Value
Display Range :
0h~100h(a/B/C)
Testing Range :
10h~90h(a/B/C)
Accuracy :
≤±1h(a/B/C)
Resolution :
0.1h(a/B/C)
Description

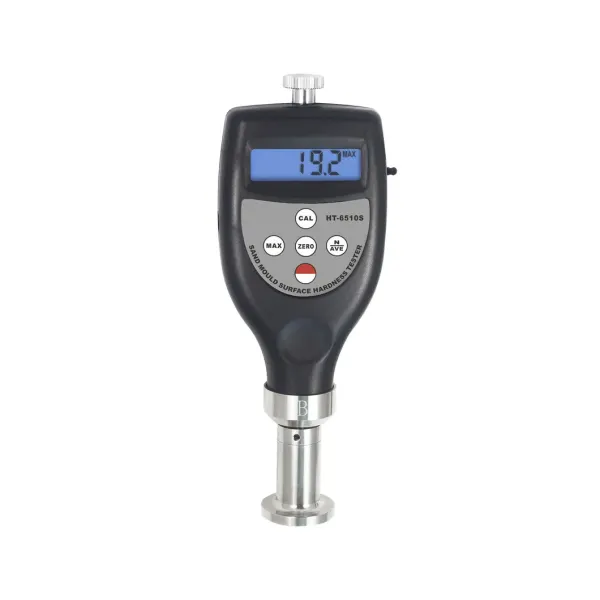

Sand Mould Surface Hardness Tester HT-6510S-A/B/C

The Sand Mould Surface Hardness Tester is designed to measure the surface hardness of sand moulds and cores in wet mold applications, providing essential technical parameters for molding process formulation.

Key Features
  • Complies with international standards: DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215
  • Three hardness types available for different molding applications:
    Type A: For surface hardness testing of fine sand moulds/cores in manual or mechanical low and medium pressure molding
    Type B: For surface hardness testing of fine and coarse sand moulds/cores in manual or mechanical low and medium pressure molding
    Type C: For surface hardness testing of sand moulds in high pressure molding
  • Average calculation function for consistent results
  • Peak value storage capability
  • Low battery alert system
  • USB data output for PC connectivity
  • Optional Bluetooth data output available
Selection Guide
HT-6510S-A/B/C Sand Mold Hardness Tester with 4 Digits LCD Display
Technical Specifications
Parameter HT-6510S-A HT-6510S-B HT-6510S-C
Stroke 2.50mm 2.50mm 2.50mm
Load 237g 980g 1500g
Pressure Load 90g 50g 180g
Indenter Shape & Size Spherical R2.50 Spherical R12.70 Spherical R1.20
Unit HA HB HC
Display 4 digits, 10mm LCD
Parameters Tested Result / Mean Value / Max. Value
Display Range 0H~100H(A/B/C)
Testing Range 10H~90H(A/B/C)
Accuracy ≤±1H(A/B/C)
Resolution 0.1H(A/B/C)
Battery Indicator Low Battery Indicator
Auto Switch Off √
Operating Conditions Temperature: 0°C~40°C, Humidity: <80%RH
Power Supply 2x1.5V AAA (UM-4) Battery
Dimensions 162mm x 65mm x 28mm
Weight 170g
Standard Accessories
  • Main Unit
  • Carrying Case (B04)
  • Operation Manual
Optional Accessories
  • USB Data Cable with Software
  • Bluetooth Data Adapter with Software
Note: Type B hardness tester units are measured in g/mm², but hardness values H(A/B/C) are commonly used instead. These values are directly related and consistent - larger unit values correspond to larger hardness values.
HT-6510S-A/B/C Sand Mold Hardness Tester with 4 Digits LCD Display HT-6510S-A/B/C Sand Mold Hardness Tester with 4 Digits LCD Display HT-6510S-A/B/C Sand Mold Hardness Tester with 4 Digits LCD Display
