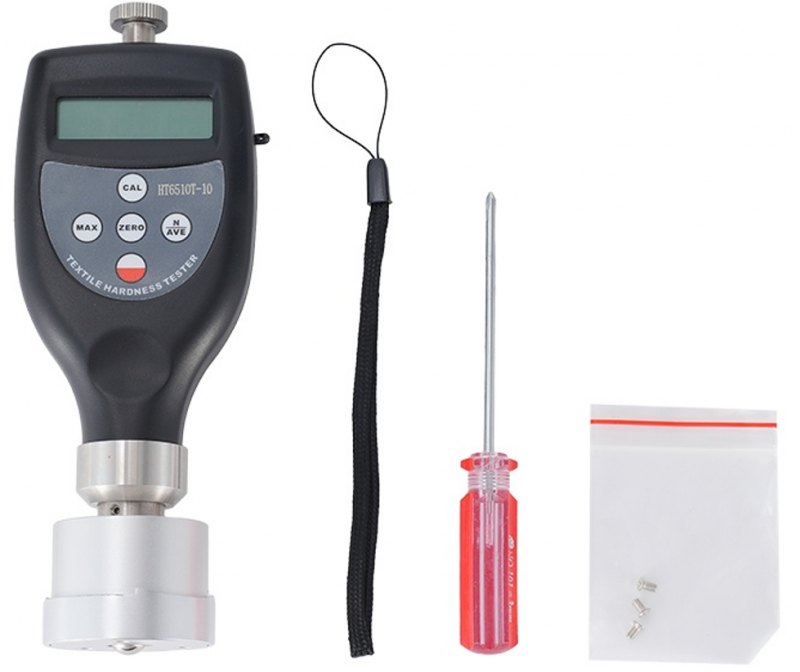

HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
HT-6510T Series Textile Hardness Tester with Convertible Probe, Average Calculate, and Peak Value Deposit Functions
Specifications
MOQ :
2
Price :
negotiable
Brand Name :
Bestone
Model Number :
HT-6510T-2.5/HT-6510T-5/HT-6510T-10
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Supply Ability :
more than 100pcs per month
Delivery Time :
5-8 working days
Packaging Details :
plastic carrying case and white paper box
Measuring Range :
H
Application :
Measure The Winding Density (Hardness) of Textile
Warranty :
1 Year
Support Language :
English
Customized :
Customized
Parameters :
Tested Result/Mean Value/Max.Value
Indenter :
Ball 2.5mmΦ,5mmΦ,10mmΦ,
Display Range :
0-100h (Hardness Graduation Marks)
Resolution :
0.1h
Accuracy :
≤±1h
Pressing Depth :
10mm
Testing Range :
10-90h (Hardness Graduation Marks)
Depth of Indentation :
0-2.5mm
Test Pressure :
Approx. 12.5n
Measuring Spring Force :
0.55-8.065n
Scale Diameter :
51mm
Transport Package :
Carrying Case
Specification :
25cmx7cmx5cm, 0.2kgs, plastic
Description
HT-6510T Series Textile Bobbins Beams Spools Cones Dye Packages Hardness Tester
Applications
Measures the winding density (hardness) of textile bobbins, beams, spools, cones, dye packages, and similar textile components.
Key Features
  • Convertible probe system - curved end for bobbins ≤400mm diameter, flat end for bobbins >400mm diameter
  • Average calculation function for consistent measurements
  • Peak value deposit function
  • Under-voltage alarm for battery monitoring
  • Optional USB data output for PC connectivity
  • Optional Bluetooth data output available
Measurement Principle
The textile hardness measurement is based on measuring the resistance force of ball penetration into the spool under a known spring load. This principle aligns with the Shore A hardness testing methodology.
Technical Specifications
Parameter HT-6510T-2.5 HT-6510T-5 HT-6510T-10
Indenter Ball 2.5mmΦ Ball 5mmΦ Ball 10mmΦ
Application Area Closely wound bobbins of synthetic, finished fibers and filaments Loosely wound bobbins of synthetic fibers and closely wound natural fibers, yarns and threads Very loosely wound bobbins of thick yarns, such as carpet yarns
Display Range 0-100H (hardness graduation marks)
Testing Range 10-90H (hardness graduation marks)
Resolution 0.1H
Accuracy ≤±1H
Depth of Indentation* 0-2.5mm 0-2.5mm 0-2.5mm
Test Pressure** Approx. 12.5N Approx. 12.5N Approx. 12.5N
Measuring Spring Force* 0.55-8.065N 0.55-8.065N 0.55-8.065N
Scale Diameter 51mm
Working Face Radius 55mm (when using curved end of probe)
Working Face Flat 45mmΦ (when using flat end of probe)
Operating Conditions Temperature: 0-40°C, Humidity: <80%RH
Power Supply 2x1.5V AAA(UM-4) Battery
Dimensions 177x65x45mm
Weight Approx. 285g (excluding batteries)
* Depth of indentation and measuring spring force specifications apply to all models
** Test pressure specifications apply to all models
Standard Accessories
Main Unit, Carrying Case, Operation Manual
Optional Accessories
USB Data Cable with Software, Bluetooth Data Adapter with Software
