FM-204G High Precision Portable Grain Hardness Tester with Digital Display for Grain Feed Analysis
FM-204G High Precision Portable Grain Hardness Tester with Digital Display for Grain Feed Analysis
FM-204G High Precision Portable Grain Hardness Tester with Digital Display for Grain Feed Analysis
FM-204G High Precision Portable Grain Hardness Tester with Digital Display for Grain Feed Analysis
FM-204G High Precision Portable Grain Hardness Tester with Digital Display for Grain Feed Analysis
FM-204G High Precision Portable Grain Hardness Tester with Digital Display for Grain Feed Analysis
FM-204G High Precision Portable Grain Hardness Tester with Digital Display for Grain Feed Analysis
FM-204G High Precision Portable Grain Hardness Tester with Digital Display for Grain Feed Analysis
FM-204G High Precision Portable Grain Hardness Tester with Digital Display for Grain Feed Analysis
FM-204G High Precision Portable Grain Hardness Tester with Digital Display for Grain Feed Analysis
Specifications
MOQ :
2
Price :
negotiable
Brand Name :
BESTONE
Model Number :
FM-204G
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 100pcs per month
Delivery Time :
5-8 working days
Packaging Details :
outer cartons
Standard :
ISO
Warranty :
1 Year
Mobility :
Portable
Support Language :
English
Customized :
Customized
Test Scope :
0-20kgf,0-196n,0-4426f
The Resolution :
0.01kgf,0.1n,0.0126f
Diameter of The Test Range :
15mm
Precision :
Plus or Minus 0.5% Fs (Range) + 1 Digital Peak
Working Temperature :
0~40°c
Trademark :
BESTONE
Origin :
China
Description

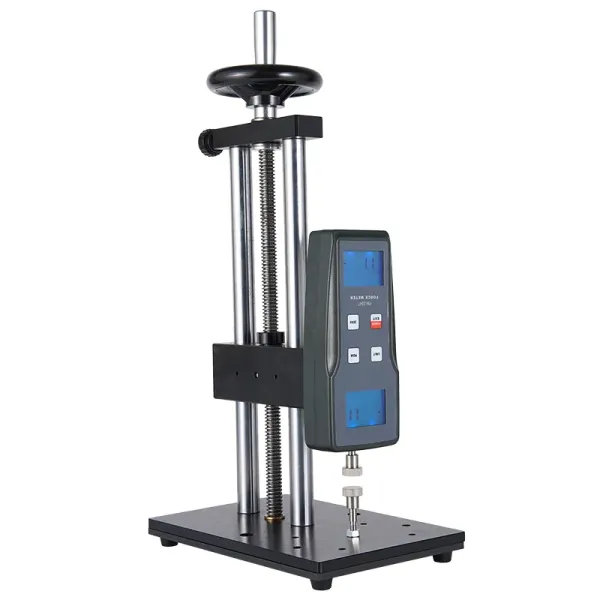

Grain Feed Grain Hardness Tester FM-204G
Product Features
  • High precision and high resolution digital display
  • Eliminates measurement differences between operators
  • Four measuring units: N (Newton), kg (kilogram), lb (pounds), g (grams) with mutual conversion
  • Peak hold function maintains peak display until manually reset
  • Energy-saving design with 10-minute auto-shutdown and manual shutdown options
  • Dual power options: alkaline batteries or 5V DC power supply
Product Application
The FM-204G series grain feed granule hardness tester is a digital display instrument designed and developed for measuring the hardness of grain and feed particles. This portable device offers high precision, easy operation, and convenient carrying capabilities. The recommended test range is 10%-100% of full scale, with the metrology department advising against using less than 1% of full scale. The instrument features a ZERO function to eliminate the weight of fixtures and accessories for accurate measurements.
Technical Specifications
Test Scope 0Kgf-20Kgf, 0N-196N, 0F-4426F
Resolution 0.01Kgf, 0.1N, 0.0126F
Test Range Diameter 15mm
Precision ±0.5% FS (range) +1 digital peak
Units kgf, gf, N, Lbf
Measured Values Peak, instantaneous value
Display Four large LCD, bidirectional, dual screen
Shutdown Mode Auto shutdown after 10 minutes or manual shutdown
Backlight Backlit display
Allowable Load 150% F.S (audible alarm when exceeding 110% F.S)
Power Supply 2 AA batteries or 5V DC power supply
Operating Temperature 0°C to 40°C
Operating Humidity <80%
Weight 390g
Dimensions 211mm x 80mm x 36mm
Standard Accessories
Measurement Bracket 1 unit
3x10 Screws 4 pieces
User Manual 1 copy
Brush 1 unit
Phillips Screwdriver 1 unit
Optional Accessories
Power Adapter
