Specifications
Brand Name :
Bestone
Model Number :
FM-204T
Certification :
CE
Place of Origin :
CHINA
MOQ :
2
Price :
negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 100pcs per month
Delivery Time :
5-8 working days
Packaging Details :
plastic box and paper carton
Material :
plastic and metal
color :
black and dark gray
Size :
211mmx80mmx36mm
Test scope :
0Kgf-20Kgf,0N-196N,0F-4426F
The resolution :
0.01Kgf,0.1N,0.0126F
Diameter of the test range :
15mm
Precision :
±0.5%FS (range) + 1 digital peak
Unit :
kgf, gf, N, Lbf
Description

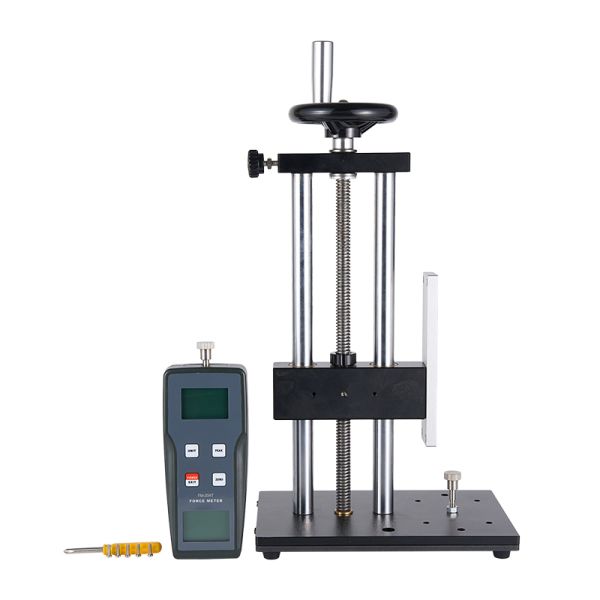

Tablet Hardness Tester FM-204T
Applications
The FM-204T series tablet hardness tester is a digital display instrument designed and developed by our company. It features high precision, easy operation, and convenient portability. The recommended test range is 10%-100% of full scale, with the metrology department advising against using less than 1% of full scale. Before testing, ensure the instrument and test object are properly positioned, then press the ZERO key to clear any fixture weight.
Key Features
  • High precision and resolution for accurate measurements
  • Digital display eliminates reading differences
  • Four measurement units: N (Newton), kg (kilogram), lb (pounds), g (grams) with mutual conversion
  • Peak hold function maintains maximum reading until manually reset
  • Energy-saving design with 10-minute auto-shutdown and manual shutdown options
  • Dual power options: alkaline batteries or 5V DC power supply
Technical Specifications
Test Scope 0Kgf-20Kgf, 0N-196N, 0F-4426F
Resolution 0.01Kgf, 0.1N, 0.0126F
Test Range Diameter 15mm
Precision ±0.5% FS (range) + 1 digital peak
Units kgf, gf, N, Lbf
Measured Values Peak, instantaneous value
Display Four-digit LCD with dual screen orientation
Backlight Backlit display
Allowable Load 150% F.S. (audible alarm when exceeding 110% F.S.)
Power Supply 2x 5V batteries or 5V DC power supply
Working Temperature 0°C to 50°C
Working Humidity <80%
Weight 390g
Dimensions 211mm x 80mm x 36mm
Accessories
Standard Accessories Measurement bracket, 3x10 screws (4), user manual, cleaning brush, Phillips screwdriver
Optional Accessories Power adapter
