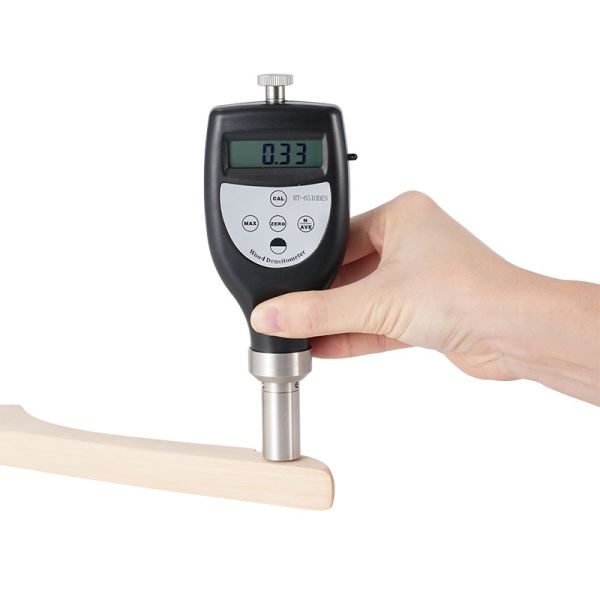

Wood Density Tester HT-6510DEN
Application
Used to determine the indentation density of wood materials with precision and reliability.
Key Features
- Specifically designed for accurate indentation density measurement of wood
- Advanced Micro-computer LSI circuit and crystal time base for high-precision measurements
- Clear digital display eliminates guesswork and measurement errors
- PC connectivity via optional RS232C interface for data recording, printing, and analysis
- Automatic power-off function for extended battery life
- Optional operation stand ensures consistent measurement force and improved repeatability
Technical Specifications
| Model |
HT-6510DEN |
| Parameters |
Density value/average Value/Maximum Value |
| Unit |
g/cm³ |
| Measurement Range |
0.01 g/cm³ ~ 1.2 g/cm³ |
| Accuracy |
≤ ±0.01 g/cm³ |
| Resolution |
0.01 g/cm³ |
| Battery Indicator |
Low Battery Indicator |
| Auto Switch Off |
Yes |
| Operating Conditions |
Temperature: 0ºC ~ 50ºC Humidity: <80% RH |
| Power Supply |
2 Size 7 Batteries |
| Dimensions |
162 mm × 65 mm × 27 mm |
| Weight |
170 g |
Package Contents
Standard Accessories
- Main Unit
- Pin Length Test Block
- Carrying Case (B04)
Optional Accessories
- RS232C Cable and Software
- Operation Stand
