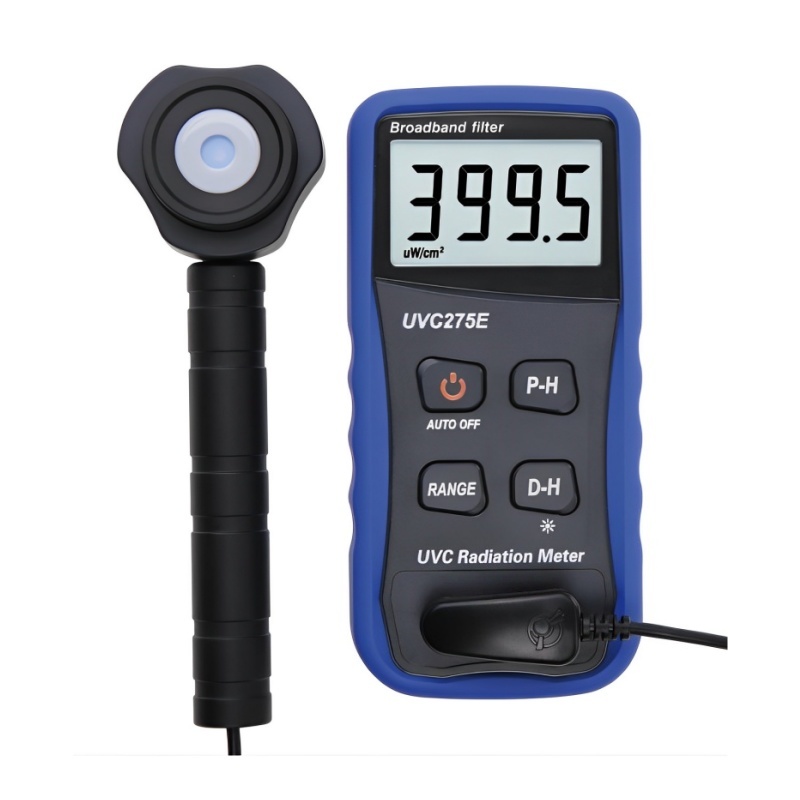

UVC275E Short-Wave Broadband UV Radiation Meter with 245nm-305nm Wavelength Range and 0.1µW/cm²-400mW/cm² Measuring Range Featuring Dual-Joint Telescopic Handle
UVC275E Short-Wave Broadband UV Radiation Meter with 245nm-305nm Wavelength Range and 0.1µW/cm²-400mW/cm² Measuring Range Featuring Dual-Joint Telescopic Handle
UVC275E Short-Wave Broadband UV Radiation Meter with 245nm-305nm Wavelength Range and 0.1µW/cm²-400mW/cm² Measuring Range Featuring Dual-Joint Telescopic Handle
UVC275E Short-Wave Broadband UV Radiation Meter with 245nm-305nm Wavelength Range and 0.1µW/cm²-400mW/cm² Measuring Range Featuring Dual-Joint Telescopic Handle
UVC275E Short-Wave Broadband UV Radiation Meter with 245nm-305nm Wavelength Range and 0.1µW/cm²-400mW/cm² Measuring Range Featuring Dual-Joint Telescopic Handle
UVC275E Short-Wave Broadband UV Radiation Meter with 245nm-305nm Wavelength Range and 0.1µW/cm²-400mW/cm² Measuring Range Featuring Dual-Joint Telescopic Handle
UVC275E Short-Wave Broadband UV Radiation Meter with 245nm-305nm Wavelength Range and 0.1µW/cm²-400mW/cm² Measuring Range Featuring Dual-Joint Telescopic Handle
UVC275E Short-Wave Broadband UV Radiation Meter with 245nm-305nm Wavelength Range and 0.1µW/cm²-400mW/cm² Measuring Range Featuring Dual-Joint Telescopic Handle
Specifications
Accuracy :
±8%+2 Digits
Model Number :
UVC275E
Place of Origin :
CHINA
Wavelength Range :
245nm-305nm
Packaging Details :
Plastic carrying case
Certification :
CE,ROHS
Delivery Time :
5-8 working days
Battery Type :
Built-in button battery
Resolution :
0.1uw/Cm&Sup2
Payment Terms :
T/T
Measuring Range :
0.1µW/cm²-400mW/cm²
MOQ :
2
Display :
3 3/4-Bit LCD, with The Max Reading of 3999
Brand Name :
Bestone
Description

With the rise of 275nm LED light source, the UVC LED lamps made from this light source have also developed rapidly, and have been gradually applied in various fields of life and industry. This product is a UV radiation meter that specializes in detecting UVC LED lamps in this band. The detector has undergone strict spectral and angular characteristics correction, and the test reading is stable and the data is accurate. The overall split design of the fuselage is small, portable and easy to use. Built-in button battery, slim body and strong endurance. The connecting plug adopts anti-reverse connection design, which is easy to plug in and out and reliable to contact. The probe is externally equipped with two telescopic handles, with freely adjustable length and convenient measurement.

Scope of application: This instrument is suitable for ultraviolet radiation measurement in the fields of sterilization, lithography, water treatment, medical treatment, breeding and so on.

Features
  1. The probe has built-in broadband filter and gallium arsenide sensor, which ensures accurate measurement and stable reading.
  2. Double-section telescopic handle with adjustable length, which is convenient for users to measure.
  3. The probe shell is provided with fixing screw holes, so that the probe can be installed in a suitable position for measurement.
  4. Low four gear design, measuring range of 0.1 µW/cm²-- 400mW/cm².
  5. High-definition LCD display with backlight function.
  6. It has the functions of numerical holding and peak holding.
  7. Low voltage prompt function.
  8. Automatic shutdown function.
  9. Three button-type batteries, the endurance is 1.5 times that of ordinary batteries.
Specifications
Parameter Value
Display 3 3/4-bit LCD, showing the maximum reading of 3999
Measuring range 0.1µW/cm²-400mW/cm²
Wavelength range 245nm~305nm
Peak wavelength 275nm
Resolution 0.1µW/cm²
The stray light outside the ultraviolet band <0.1%
Accuracy 8%+2 digits
Linear error 1%
Shift error 1%
Sampling time 2 times per second
Overload display overload display "OL"
Power source 3 CR2450 3V button lithium batteries
Battery life about 300 hours of continuous use (without backlight)
Automatic shutdown time 5 minutes
Operating temperature and humidity 0～40℃(32°F~104°F),0~70%RH
Storage temperature and humidity -10℃~50℃(14°F~122°F),0~80%RH
Instrument Size Instrument size:160 x 78x 34 mm
Probe: Φ50 (probe diameter) x40mm(h);
Handle: 240mm;
Probe extension line (handle length included):1000mm
Weight about 405g (including battery and probe)
Accessories 1pc main instrument;
1pc probe with cable with instrument together;
1pc portable carrying box;
3pcs CR2450 3V button lithium batteries (for international shipping, not included);
1pc operation manual;
1pc tweezers;
1pc screwdriver;
