UVC254E UV Light Meter with Adjustable Intensity Detector, High Precision Silicon Photo Diode, and Double-Section Retractable Handle
UVC254E UV Light Meter with Adjustable Intensity Detector, High Precision Silicon Photo Diode, and Double-Section Retractable Handle
UVC254E UV Light Meter with Adjustable Intensity Detector, High Precision Silicon Photo Diode, and Double-Section Retractable Handle
UVC254E UV Light Meter with Adjustable Intensity Detector, High Precision Silicon Photo Diode, and Double-Section Retractable Handle
UVC254E UV Light Meter with Adjustable Intensity Detector, High Precision Silicon Photo Diode, and Double-Section Retractable Handle
UVC254E UV Light Meter with Adjustable Intensity Detector, High Precision Silicon Photo Diode, and Double-Section Retractable Handle
UVC254E UV Light Meter with Adjustable Intensity Detector, High Precision Silicon Photo Diode, and Double-Section Retractable Handle
UVC254E UV Light Meter with Adjustable Intensity Detector, High Precision Silicon Photo Diode, and Double-Section Retractable Handle
Specifications
Accuracy :
±3% ±10 Digits (0-20,000 Lux)
Model Number :
UVC254E
Photo detector :
Silicon Photo Diode with Filter
Operating temperature :
32-104 degrees F (0-40 degrees C)
Certification :
CE,ROHS
Photo detector type :
Silicon Photo Diode with Filter
MOQ :
2
Place of Origin :
CHINA
Display :
3-1/2 Digit 18mm LCD
Brand Name :
Bestone
Delivery Time :
5-8 working days
Payment Terms :
T/T
Range :
0.1~200,000lux/0.01~20,000f
Packaging Details :
Plastic carrying case
Repeatability :
±2%
Description

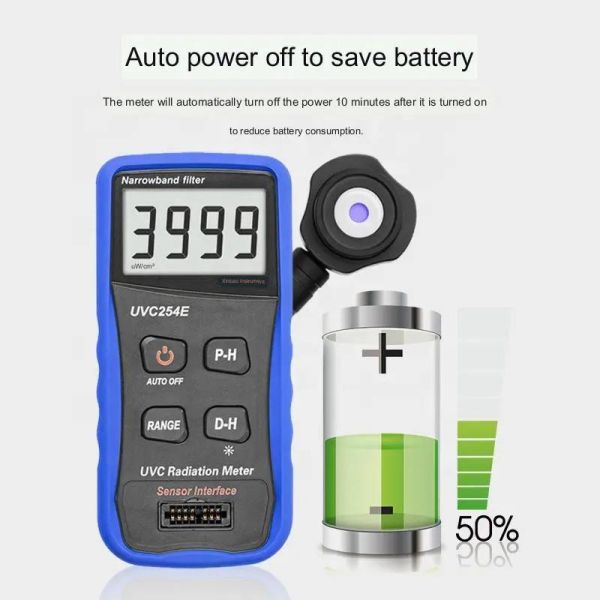

UVC254E UV Light Meter, UVC Radiation Meter with Adjustable Intensity Detector
The UVC254E short-wave ultraviolet radiation meter is a precision instrument featuring high-precision, low-power digital chips. With its split design, the instrument is compact, portable, and user-friendly. The host unit features a durable plastic casing that is both aesthetically pleasing and resistant to shock and drops. Powered by built-in button batteries, it offers an extended battery life in a slim profile. The connection plug incorporates anti-reverse design for easy, reliable use. The probe includes an external double-section retractable handle with adjustable length for convenient measurement.
Key Features
  • Built-in narrow-band filter and GaAs sensor for accurate measurement and stable readings
  • Double-section retractable handle with adjustable length for user convenience
  • Probe shell features fixed screw holes for installation in optimal measurement positions
  • Two-range design with measuring range of 1µW/cm² to 39.99mW/cm²
  • High-definition LCD display with backlight function
  • Value hold and peak hold functions
  • Low voltage prompt function
  • Auto shutdown function
  • Three button-type batteries providing 1.5 times the battery life of ordinary batteries
Technical Specifications
Display 3 3/4-bit LCD, showing maximum reading of 3999
Measuring Range 1µW/cm² - 39.99mW/cm²
Wavelength Range 248nm - 262nm
Peak Wavelength 254nm
Resolution 1µW/cm²
Stray Light Outside UV Band <0.1%
Accuracy (8%+2 digits)
Linear Error ±1%
Shift Error ±1%
Sampling Time 2 times per second
Overload Display Displays "OL"
Power Source 3 CR2450 3V button lithium batteries
Battery Life Approximately 300 hours of continuous use (without backlight)
Automatic Shutdown Time 10 minutes
Operating Temperature & Humidity 0℃ - 40℃ (32°F - 104°F), 0-70% RH
Storage Temperature & Humidity -10℃ - 50℃ (14°F - 122°F), 0-80% RH
Instrument Size Instrument: 160 x 78 x 34 mm
Probe: Φ50 (diameter) x 40mm (height)
Handle: 240mm
Probe extension line (including handle): 1000mm
Weight Approximately 405g (including battery and probe)
Package Contents
  • 1 main instrument
  • 1 probe with cable (connected to instrument)
  • 1 portable carrying box
  • 3 CR2450 3V button lithium batteries*
  • 1 operation manual
  • 1 tweezers
  • 1 screwdriver
  • 1 hanger
  • 1 one-meter telescopic rod
  • 1 hook
*Batteries not included for international shipping
