UVB313E UVB Radiation Meter with 290nm~325nm Wavelength Range, 0.1uW/cm2-400mW/cm2 Measuring Range and Dual-joint Telescopic Handle
UVB313E UVB Radiation Meter with 290nm~325nm Wavelength Range, 0.1uW/cm2-400mW/cm2 Measuring Range and Dual-joint Telescopic Handle
UVB313E UVB Radiation Meter with 290nm~325nm Wavelength Range, 0.1uW/cm2-400mW/cm2 Measuring Range and Dual-joint Telescopic Handle
UVB313E UVB Radiation Meter with 290nm~325nm Wavelength Range, 0.1uW/cm2-400mW/cm2 Measuring Range and Dual-joint Telescopic Handle
Specifications
Model Number :
UVB313E
Measuring Range :
0.1uw/Cm2-400MW/Cm2
Payment Terms :
T/T
Place of Origin :
CHINA
Center Wavelength :
315nm
Certification :
CE,ROHS
Battery Endurance :
1.5 times that of ordinary batteries
Battery Type :
Three button batteries
Delivery Time :
5-8 working days
Resolution :
0.1uw/Cm2
MOQ :
2
Brand Name :
Bestone
Display :
33/4-Bit LCD,Showing The Maximum Reading of 3999
Packaging Details :
Plastic carrying case
Wavelength Range :
290nm~325nm
Description
UVB Radiation Meter UVB313E

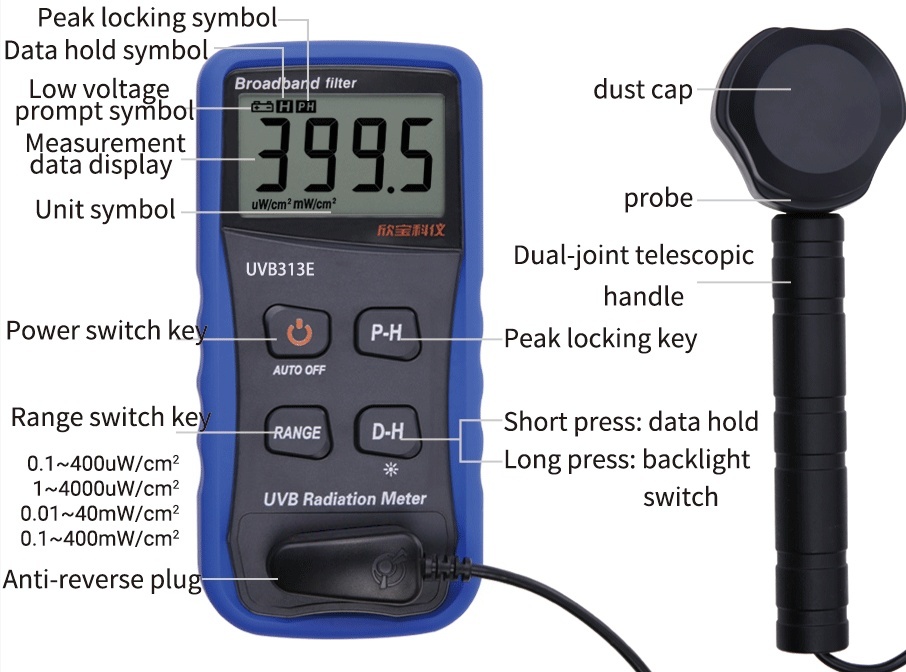

Product Features
Enhanced photodiode and UVB band filter correction mirror for accurate measurement and stable readings
Dual-joint telescopic handle with adjustable length for convenient measurement positioning
Probe housing with fixing screw holes for secure installation in optimal measurement positions
Four-gear design with measuring range of 0.1μW/cm² to 400mW/cm²
HD LCD display with backlight function for clear visibility in various lighting conditions
Data hold and peak hold functions for capturing and analyzing measurement data
Low voltage prompt and automatic shutdown functions for battery management
Three button batteries with 1.5 times the endurance of ordinary batteries
Product Application

The UVB313E UV radiation meter is specialized in detecting the intensity of UVB ultraviolet radiation emitted by the sun or lamps. The measurable wavelength range is 290nm-325nm, with a center wavelength of 315nm.

This detector utilizes a low-power digital chip and features stable performance with strong applicability after strict spectral and angular characteristics correction. The split-type design makes it easy to carry, while the built-in button battery provides strong endurance. The external probe features two telescopic handles for freely adjustable length and convenient measurement.

Industrial Applications
  • Photolithography processes
  • LED ultraviolet light source intensity detection
  • UVB irradiation detection for sterilization
  • Water treatment monitoring
  • Medical applications
  • Breeding industry applications
Civil Applications
  • Intensity detection of UVB lamps for killing mites in pets and livestock
  • Detection of UVB intensity in sunlight
  • Suitable for measuring UV intensity of various LED lamp beads in the 300-320nm wavelength range
Product Parameters

Display

3 3/4-bit LCD, showing the maximum reading of 3999

Measuring range

0.1µW/cm²-400mW/cm²

Wavelength range

290nm~325nm

Peak wavelength

315nm, over 50% transmittance band,300nm to 320nm.

Resolution

0.1µW/cm²

The stray light outside the ultraviolet band

<0.1%

Accuracy

(8%+2 digits), Calibrated under UVB light source and compared with standard UVB irradiance meter. The RF field strength in the test environment is less than 3 V/m, and the frequency is less than 30 MHz.

Linear error

±1%

Shift error

±1%

Sampling time

2 times per second

Overload display

overload display "OL"

Power source

3 CR2450 3V button lithium batteries

Battery life

about 300 hours of continuous use (without backlight)

Automatic shutdown time

5 minutes

Operating temperature and humidity

0～40℃(32°F~104°F),0~70%RH

Storage temperature and humidity

-10℃~50℃(14°F~122°F),0~80%RH

Instrument Size

Instrument size:160 x 78x 34 mm
Probe: Φ50 (probe diameter) x40mm(h);
Handle: 240mm;
Probe extension line (handle length included):1000mm

Weight

about 405g (including battery and probe)

Accessories

1pc main instrument;
1pc probe with cable with instrument together;
1pc portable carrying box;
3pcs CR2450 3V button lithium batteries (for international shipping, not included);

1pc operation manual;
1pc tweezers;
1pc screwdriver.
