Specifications
Brand Name :
Wintact, Bestone
Model Number :
WT317A WT317B
Certification :
CE,ROHS,FCC
Place of Origin :
CHINA
MOQ :
80
Payment Terms :
T/T,Western Union,MoneyGram
Delivery Time :
3-5 working days
Packaging Details :
Color box
Price :
US$4.5
Supply Ability :
more than 5000pcs per month
Color :
Red and black
Material :
Plastic+PCB
Purpose :
Non contact temperature measurement
Range :
WT317A: -50~390℃(-58~734℉) WT317B: -50~590℃(-58~1094℉)
Accuracy :
±2℃(±3.6℉)
Data hold function. :
Data hold function.
object distance ratio. :
12:1
Description

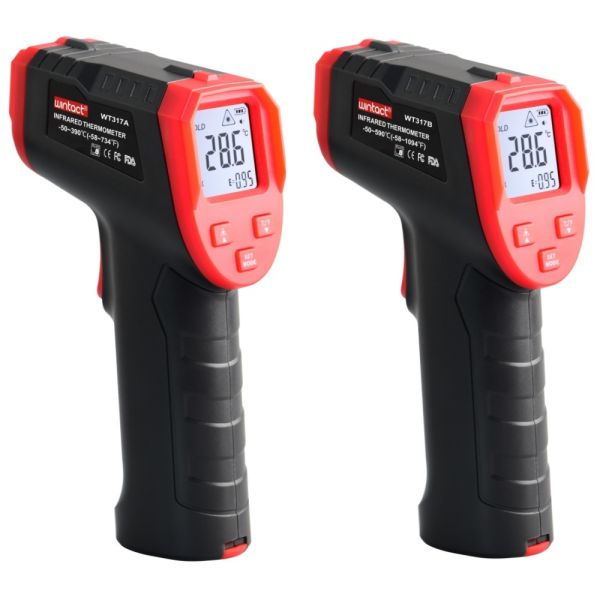

WT317A WT317B Digital Infrared Thermometer for Non-contact Temperature Measurement with Digital Display
Applications:

This thermometer is used for measuring the tempera-true of the object's surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly. The product consists of Optics, Temperature sensor signal amplifier, Processing circuit and LCD display. The optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.

Features:
  • Measure the ambient temperature.
  • Data retention.
  • Automatic on/off after 10 seconds no operation.
  • Temperature unit ℃/℉switch.
  • Positioning laser.
  • Data hold function.
  • 12:1 object distance ratio.
  • Battery level indication
Technical parameters
Temperature range WT317A: -50~390℃(-58~734℉) WT317B: -50~590℃(-58~1094℉)
Accuracy ≤0℃(32℉): ±3℃(±5℉)
>0℃(32℉):±2% or
±2℃(±3.6℉), Whichever is greater
Repeatability 1% of reading or 1℃
Response time 500 mSec, 95% response
Spectral response 5~14μm
Emissivity 0.95
Operating Temperature 0~40℃ (32~104℉)
Operating Humidity 10~90%RH non-condensing
Storage Temperature -20~60℃ (-4~140℉)
Dimension 147x91x40mm
Power 1.5V AAA*2 battery
Battery life 12h (Laser off)
Distance to Spot size 12:1
The contents included in the shipment:
  1. IR Thermometer:1pc
  2. English manual: 1pc
  3. Paper color box: 1pc
  4. 1.5V AAA battery:2pcs(for air shipping, not included)
