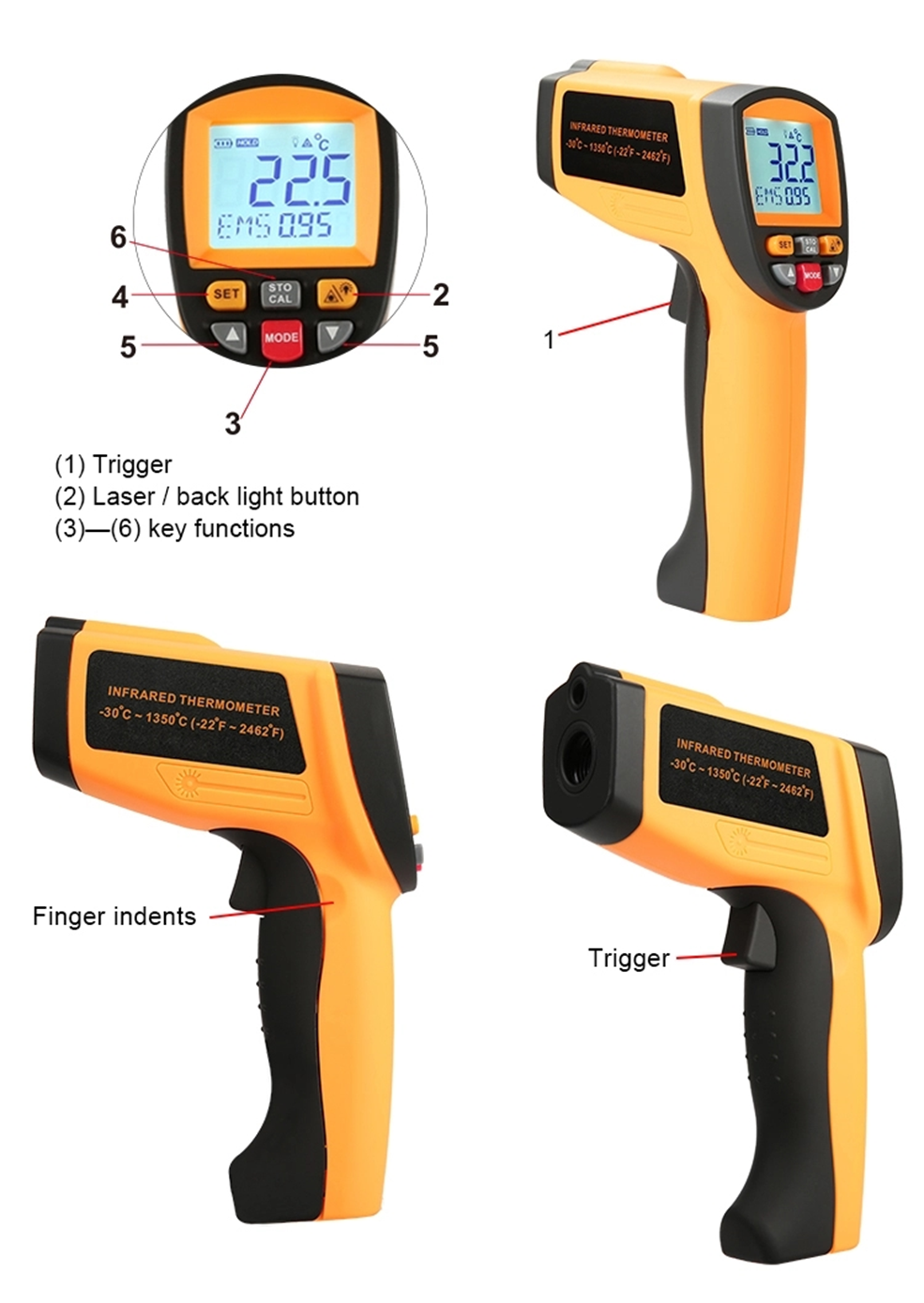

Digital Non-Contact High Temperature Infrared Thermometer
Models: GM1150, GM1150A, GM1350, GM1500
Applications
This infrared thermometer measures surface temperature of various hot, hazardous, or hard-to-reach objects safely and quickly without contact. The unit consists of optics, temperature sensor, signal amplifier, processing circuit, and LCD display. The optics collect infrared energy emitted by the object and focus it onto the sensor, which translates the energy into an electrical signal that is processed and displayed digitally on the LCD.
Key Features
- Laser positioning
- ℃/℉ temperature unit switch
- Backlit screen
- Battery level reminder
- Data retention
- Data storage and reading
- High and low temperature alarm
- Max, Min, Dif, Avg value display
- Adjustable emissivity
- Automatic shutdown
Technical Specifications
| Parameter |
GM1150 |
GM1150A |
GM1350 |
GM1500 |
| Temperature Range |
-30~1150℃ (-22~2102℉) |
-30~1150℃ (-22~2102℉) |
-30~1350℃ (-22~2462℉) |
-30~1500℃ (-22~2732℉) |
| Distance to Spot Size |
20:1 |
50:1 |
50:1 |
50:1 |
| Spectral Response |
8~14 um |
| Accuracy |
>0℃: ±1.5℃ or ±1.5% (whichever is greater)
<0℃: ±3℃ |
| Repeatability |
1% of reading or 1℃ |
| Resolution |
0.1℃ or 0.1℉ |
| Response Time |
500 mSec, 95% response |
| Emissivity |
0.10~1.00 Adjustable (preset as 0.95) |
| Operating Temperature |
0~40℃ (32~104℉) |
| Operating Humidity |
10~95%RH non-condensing |
| Storage Temperature |
-20~60℃ (-4~140℉) |
| Dimensions |
141x60x200mm |
| Weight |
270g (not included battery) |
| Power |
9V Alkaline or NiCd battery |
| Battery Life |
Non-laser mode: 22 hrs; Laser Models: 12 hrs |
| Data Storage & Reading |
Available |
Package Contents
- IR Thermometer: 1pc
- English manual: 1pc
- Paper color box: 1pc
- Plastic carrying case: 1pc
- 9V battery: 1pc (international transportation, not included)
