Specifications
MOQ :
50
Price :
EXW US$77
Brand Name :
Bestone
Model Number :
86237
Certification :
CE
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Supply Ability :
more than 500pcs per month
Delivery Time :
3-5 working days

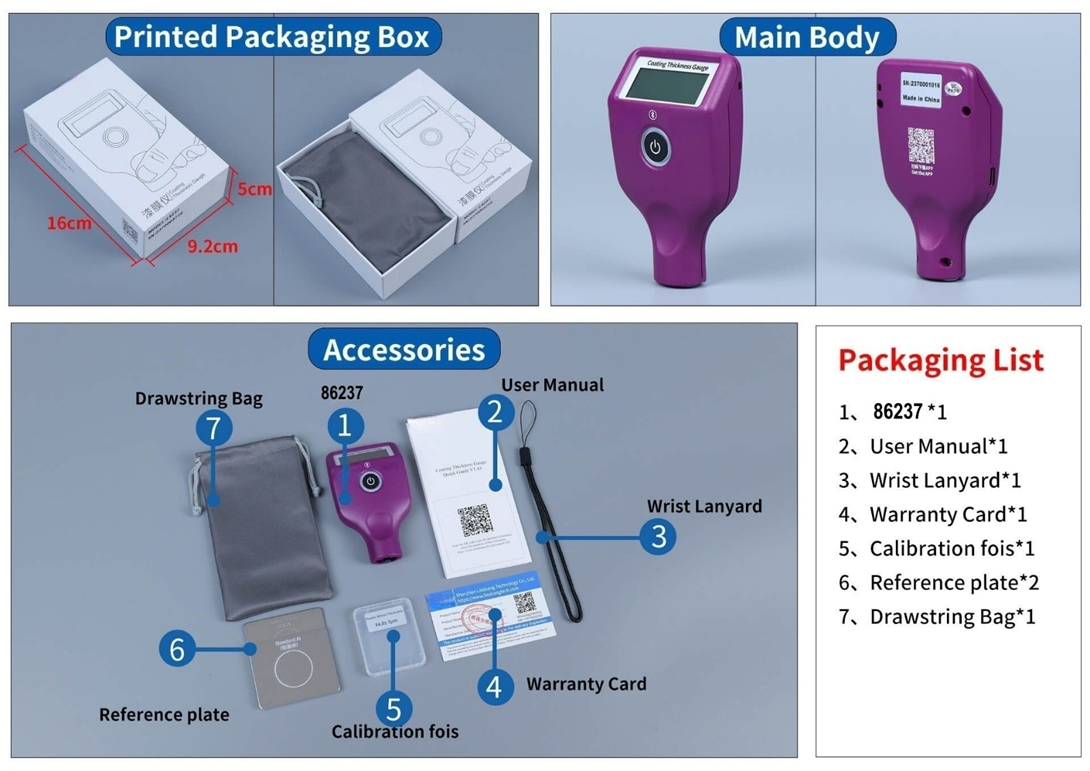

Packaging Details :
box and cloth bag
Model NO. :
86237
Measuring Range :
0.0~5000μm
Resolution :
0.1μm/1μm/10μm
Accuracy :
0-3000μm: ≤±(3%H+2μm), H Is The S
Unit :
μm/Mil
Measurement Principle :
Fe: Hall Effect / Al: Eddy Current
Transport Package :
Box and Carrying Case
Specification :
CE, ROHS
Trademark :
BESTONE, Linshang
Origin :
China
HS Code :
9031809090
Production Capacity :
50000pieces/Year
Description
86237 High Precision Car Paint Checker Detector Film Thickness Tester

86237 car paint meter is specialized in automotive paint thickness inspection. The instrument can measure paint thickness above ferrous and aluminum materials, identify non-metallic surfaces, and intelligently detect ferrous putty and iron galvanized coatings.

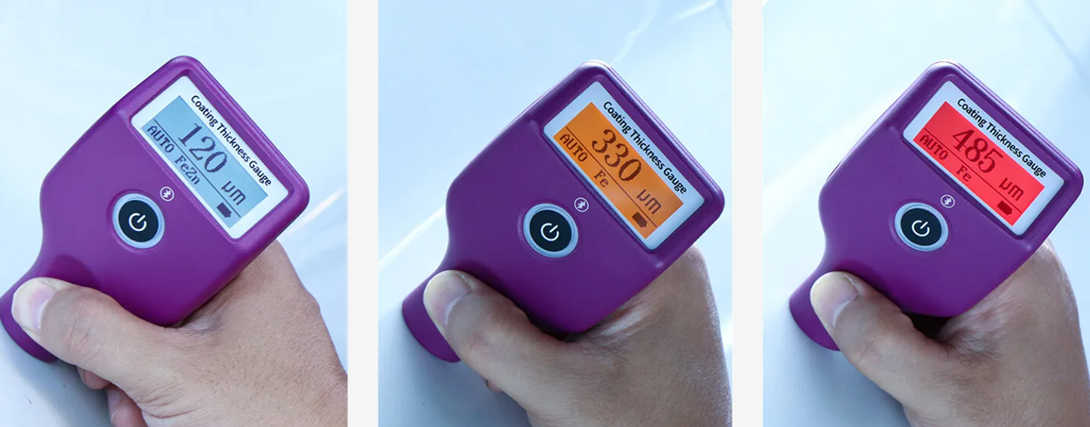

86237 features three-color backlight and indicator display, with screen and buttons displaying different colors based on paint thickness measurements. Powered by rechargeable lithium batteries with ultra-low power consumption, it includes Bluetooth functionality with companion app support for inspection report export and sharing.

Key Features
  • Color-coded display based on paint thickness measurements
  • Mobile app integration for vehicle inspection report generation
  • Rechargeable lithium battery with Type-C charging port
  • Large measuring range up to 5000μm
  • Ferrous putty detection with red indicator lighting
  • Rapid detection of ferrous, aluminum, iron galvanized and non-metallic surfaces
  • Ultra-fast response speed - 0.5s per measurement
  • Durable ruby probe for extended instrument life
  • Rotatable screen for enhanced readability
Technical Specifications
Model 86237
Probe Type Integrated
Screen LCD
Working Temperature -20°C ~ 50°C
Display Three-color backlight
Bluetooth Supported
Power Supply Rechargeable lithium battery 3.7V@1200mAh
Probe Ruby
Measuring Principle Fe: Hall Effect / Al: Eddy Current
Measuring Range 0.0-5000μm
Resolution 0.1μm/1μm/10μm
Unit μm / mil
Accuracy 0-3000μm: ≤±(3%H+2μm), 3000-5000μm: ≤±(5%H+2μm)
Measuring Interval 0.5s
