Specifications
Certification :
FCC, CE, Ex
MOQ :
10
Price :
negotiable
Brand Name :
Bestone
Model Number :
AE7700
Place of Origin :
China
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 1000 units
Delivery Time :
5-8 workings
Packaging Details :
color paper box
Model NO. :
AE7700
Brand :
Bestone
Customized :
Customized
Portable :
Portable
Gas :
CO2
Type :
Wall mount CO2 Controller
CO2 Measurementrange :
0-9999ppm
CO2 Resolution :
1ppm
CO2 Repeatability :
10ppm
Accuracy :
±0.5ºC(±1°f)
Transport Package :
Box
Certificate :
CE, ROHS
Origin :
China
HS Code :
9027100090
Description

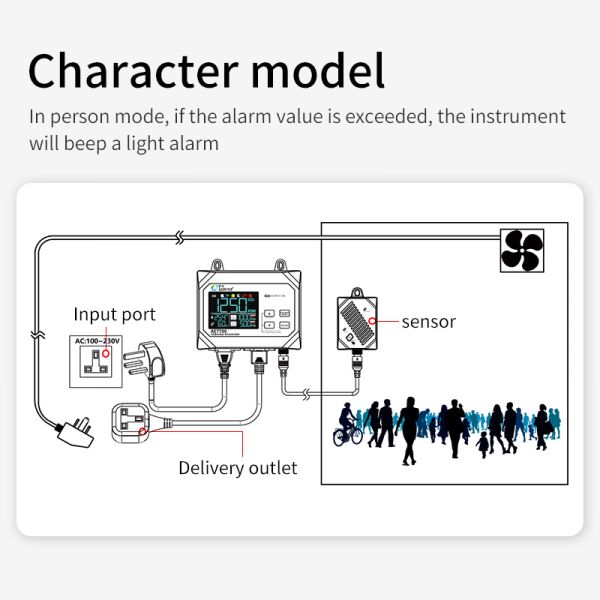

Carbon Dioxide Controller AE7700
Product Features

Configurable settings based on carbon dioxide concentration levels

Supports power supply on/off control functionality

Compliant with national standards, US, and European regulations (optional configurations available)

Customizable cable length options

Wide application range including greenhouses, flower cultivation, plant nurseries, and hospitals

Technical Specifications
Parameter Specification
CO2 Measurement Range 0~9999ppm
CO2 Resolution 1ppm
CO2 Accuracy ±50ppm or ±5% of reading (whichever is greater)
CO2 Repeatability 10ppm
Temperature Dependence ±0.1% of the reading or ±2ppm each °C (whichever is greater), at 25°C
Pressure Dependence Yes
Response Time <1 minute
Boot Time <20 seconds
Temperature measuring range 0~50°C (32°F~122°F)
Temperature Resolution 0.1°C (0.1°F)
Temperature Accuracy ±0.5°C (±1°F)
Temperature Response Time <10 minutes
Relative Humidity Range 0~99% RH
RH Accuracy ±3%
RH Resolution 0.1% RH
Operating temperature 0~50°C
Storage Temperature -20~60°C
Operating & Storage RH 0~99% RH
Input voltage AC 100-300V
Output Load 10A @ 250VAC
Physical Specifications
Component Dimensions
Control Unit 164 × 147 × 47mm
Sensor Unit 63 × 99 × 28mm
Weight 1080g
Package Contents

Controller Unit

Sensor Unit

Cable (4.6m) × 1

Output and input power cables (1.5m) × 2

Hook

Instruction manual

Screws and expansion pipes

Carton packaging
