Specifications
Brand Name :
Bestone,Wintact
Model Number :
WT801
Certification :
CE,ROHS,FCC,ISO
Place of Origin :
CHINA
MOQ :
100
Price :
negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 1000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
paper box
Sensor :
Gas sensitive semiconductor
Response range :
50~1000PPM (methane)
Sensitivity :
>50ppm (methane)
Preheating time :
About 30s
Response time :
≤500PPM: about 5s,>500PPM: about 2s
Alarm method :
Analog bar display and buzzer
Description
Pen-type Combustible Gas Monitor Model WT801
Introduction and Application

This high-quality gas monitor features advanced sensors for accurate measurement and stable performance. With excellent sensitivity and repeatability, it's easy to use and maintain, meeting industrial safety monitoring requirements for reliable equipment. Ideal for applications in:

  • Petroleum and chemical industries
  • Environmental protection
  • Metallurgy and refining
  • Gas transmission and distribution
  • Biochemical medicine
  • Agricultural research
Key Features
  • Backlit screen for clear visibility
  • High sensitivity with quick response
  • Visual and audible alarm systems
  • Energy-efficient design with convenient pocket clip
  • High-sensitivity sensors detect minute air leaks
  • 3-5cm detection range with 0.5-second response time
Technical Specifications
Model WT801
Sensor Gas sensitive semiconductor
Response range 50~1000PPM (methane)
Sensitivity >50ppm (methane)
Preheating time Approximately 30 seconds
Response time ≤500PPM: ~5s, >500PPM: ~2s
Alarm method Analog bar display with buzzer
Operating environment 0~50°C/20~80%RH
Storage environment -10~60°C/20~80%RH
Power supply 2*1.5V AAA batteries
Dimensions 27*22*168mm

The monitor features a dynamic bar graph that increases with gas concentration, accompanied by audible alarms. High gas concentrations trigger red LCD warnings for enhanced safety awareness.

Application Example

Ideal for restaurant kitchen safety - detecting potential gas leaks in environments with open flames that could lead to combustion or explosion hazards.

WT801 Pen-type Combustible Gas Monitor with 3-5cm Detection Distance 0.5-Second Response Time and 50~1000PPM Range WT801 Pen-type Combustible Gas Monitor with 3-5cm Detection Distance 0.5-Second Response Time and 50~1000PPM Range

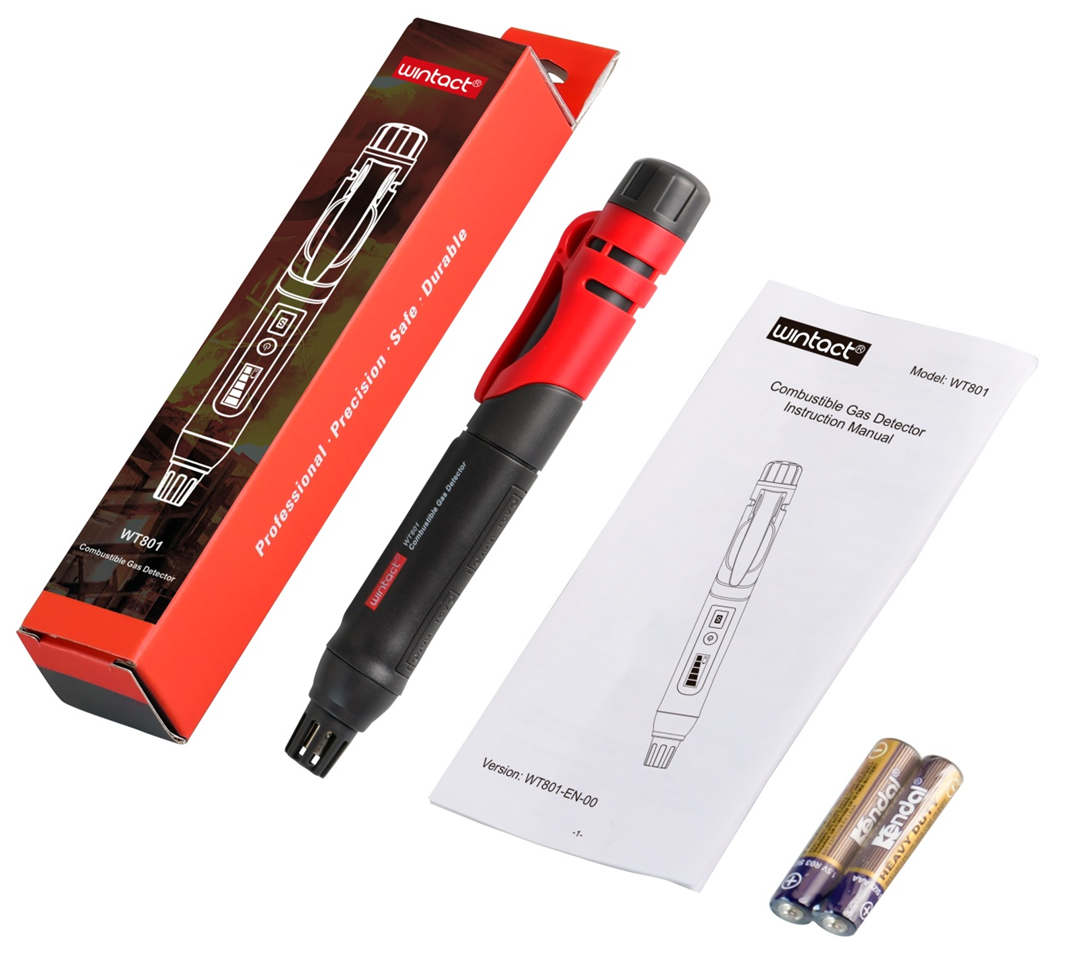

Package Contents
  • Gas monitor unit
  • Operation manual
  • Protective box packaging
WT801 Pen-type Combustible Gas Monitor with 3-5cm Detection Distance 0.5-Second Response Time and 50~1000PPM Range
