Specifications
MOQ :
2
Price :
US$618-772
Brand Name :
Bestone
Model Number :
SRT-6210s,SRT-6200S
Certification :
CE,ROHS
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Supply Ability :
More than 100pcs per month
Delivery Time :
3-5 working days
Packaging Details :
Aluminum carrying case and white paper box
Model NO. :
SRT-6210S,SRT-6200S
Measuring Range :
0.005~16.00 μm
Sensor :
Separate
Probe Angle :
90°
Transport Package :
Carrying Case
Specification :
149 x 67 x 29 mm
Trademark :
BESTONE
Origin :
China
HS Code :
9031809090
Production Capacity :
50000pieces/Year
Description
Roughness Meter - Separate Surface Roughness Tester SRT-6210S & SRT-6200S
Applications
Widely used in production environments to measure surface roughness of various machinery-processed parts. Calculates corresponding parameters according to selected measuring conditions and clearly displays all measurement parameters.
Measurement Principle
When measuring surface roughness, the sensor is placed on the surface and uniformly slides along it via the internal driving mechanism. The sharp built-in probe detects surface roughness, causing probe displacement that changes the inductive amount of induction coils, generating an analogue signal proportional to surface roughness. The exclusive DSP processes and calculates the data, then outputs measurement results on the LCD display.
Key Features
  • Compatible with ISO, DIN, ANSI and JIS standards
  • Compact size, lightweight design, and easy operation
  • Highly sophisticated inductance sensor technology
  • Four wave filtering methods: RC, PC-RC, GAUSS and D-P
  • SRT-6210S measures parameters: Ra, Rz, Rq, Rt
  • SRT-6200S measures parameters: Ra, Rz
  • Memory function stores 7 groups of measurement results and conditions
  • Manual or automatic power off functionality
  • Metric/Imperial unit conversion
  • RS-232 data output for PC connectivity
  • Optional Bluetooth data output
Technical Specifications
Model SRT-6210S SRT-6200S
Standards GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1
Parameters Ra, Rq, Rz, Rt Ra, Rz
Measuring Range Ra, Rq: 0.005~16.00μm / 0.020~629.9μinch
Rz, Rt: 0.020~160.0μm / 0.078~6299μinch		 Ra: 0.05~10.00μm / 1.000~400.0μinch
Rz: 0.020~100.0μm / 0.780~4000μinch
Accuracy ≤±10%
Fluctuation of Display Value ≤6%
Resolution 0.001 / 0.01 / 0.1
Sensor - Radius of Probe Pin 5μm 10μm
Material of Probe Pin Diamond
Measurement Force of Probe 4mN (0.4gf) 16mN (1.6gf)
Probe Angle 90°
Vertical Radius of Guiding Head 48mm
Maximum Driving Stroke 17.5mm / 0.7inch
Cutoff length (l) 0.25mm, 0.8mm, 2.5mm
Driving Speed - Sampling Length = 0.25 mm: Vt = 0.135 mm/s
Length = 0.8 mm: Vt = 0.5 mm/s
Length = 2.5 mm: Vt = 1 mm/s
Driving Speed - Returning Vt = 1mm/s
Profile Digital Filter RC, PC-RC, GAUSS, D-P
Evaluation Length 1~5 L Optional
Data Memorize 7 Groups
Operating Conditions Temperature: 0~50℃, Humidity: <80%RH
Power Supply 4x1.5V AAA (UM-4) Battery
Dimensions Measuring Base Size: 185x56x47 mm
Weight 480g
Standard Accessories
Main Unit, Standard Sensor SRP-100, Standard Sample Plate SSP-100, Small Screwdriver, Measuring base, Carrying Case, Operation Manual
Optional Accessories

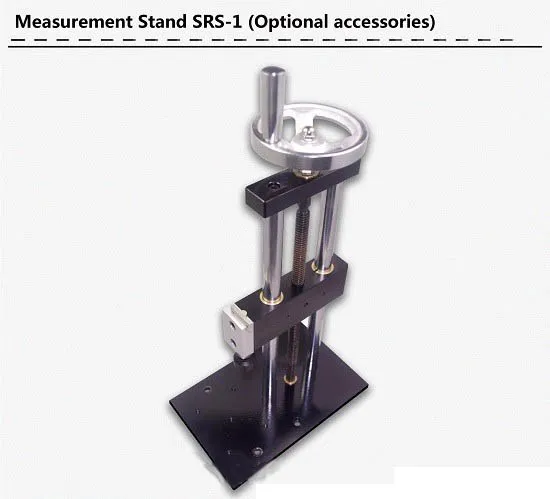

Extension Rod SER-150, Groove Stylus SRP-110, Curvature Probe SRP-120, Measurement Stand SRS-1, RS-232C Cable with Software, Bluetooth Adapter with Software
