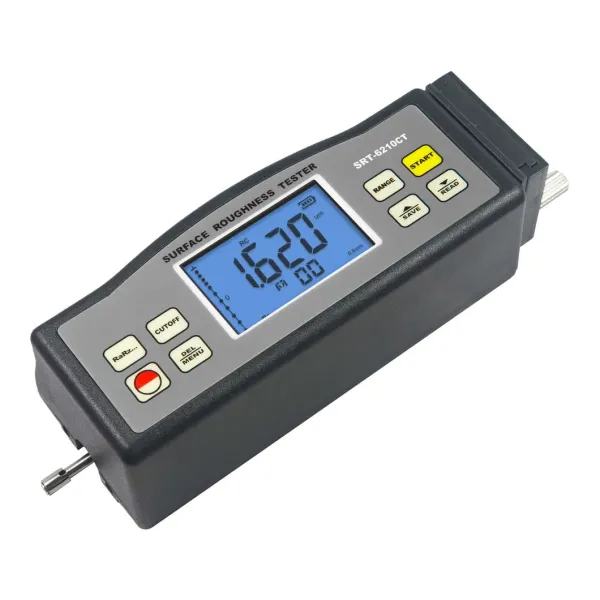

Concrete Surface Roughness Tester SRT-6210CT 0.005µm~20.00µm Built in Lithium Battery
Concrete Surface Roughness Tester SRT-6210CT 0.005µm~20.00µm Built in Lithium Battery
Concrete Surface Roughness Tester SRT-6210CT 0.005µm~20.00µm Built in Lithium Battery
Concrete Surface Roughness Tester SRT-6210CT 0.005µm~20.00µm Built in Lithium Battery
Concrete Surface Roughness Tester SRT-6210CT 0.005µm~20.00µm Built in Lithium Battery
Concrete Surface Roughness Tester SRT-6210CT 0.005µm~20.00µm Built in Lithium Battery
Specifications
MOQ :
1
Brand Name :
Bestone
Model Number :
Srt-6210CT
Certification :
CE,ROHS
Place of Origin :
CHINA
Price :
US$975
Payment Terms :
T/T,Western Union
Supply Ability :
More than 100pcs per month
Delivery Time :
3-5 working days
Packaging Details :
Carrying Case and white paper box
Model NO. :
SRT-6210CT
Display :
4 Digits, 10 mm LCD, with Blue Backlight
Measuring Range 1 :
Ra,Rq:0.005µm~20.00µm
Accuracy :
≤±10%
Parameters :
Ra,Rq,Rz,Rt
Measuring Range 2 :
Rz,Rt:0.020µm~200.0µm
Fluctuation of Display Value :
≤6%
Resolution :
0.001/0.01/0.1
Transport Package :
Carrying Case
Specification :
140 x 52 x 48 mm
Trademark :
BESTONE
Origin :
China
HS Code :
9031809090
Description
Concrete Surface Texture Tester SRT-6210CT
Product Features
  • Compatible with four international standards: ISO, DIN, ANSI, and JIS
  • Multiple parameter measurement: Ra, Rz, Rq, Rt
  • Highly sophisticated inductance sensor for precise readings
  • Four wave filtering methods: RC, PC-RC, GAUSS, and D-P
  • Built-in lithium-ion rechargeable battery with high-capacity control circuit
  • Compact, lightweight design for easy portability and operation
  • Manual or automatic shutdown functionality
  • Stores 7 groups of measurement results and conditions for later use or PC download
  • Metric/Imperial unit conversion capability
  • USB/RS-232 data output for PC connectivity
  • Optional Bluetooth data output available
Measurement Principle
When measuring surface roughness, the sensor is placed on the surface and uniformly slides along it via the internal driving mechanism. The sharp built-in probe detects surface roughness, causing probe displacement that changes the inductive amount of induction coils. This generates an analog signal proportional to the surface roughness at the output end of the phase-sensitive rectifier. The exclusive DSP processes and calculates the data, then displays the measurement results on the LCD.
Technical Specifications
Standards GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1
Parameters Ra, Rq, Rz, Rt
Measuring Range Ra, Rq: 0.005µm~20.00µm
Rz, Rt: 0.020µm~200.0µm
Accuracy ≤±10%
Fluctuation of Display Value ≤6%
Resolution 0.001/0.01/0.1
Sensor Specifications Radius of Probe Pin: 10µm
Material of Probe Pin: Diamond
Measurement Force of Probe: 16mN(1.6gf)
Probe Angle: 90º
Vertical Radius of Guiding Head: 48 mm
Maximum Driving Stroke: 17.5mm/0.7inch
Cutoff length(l) 0.25mm, 0.8mm, 2.5mm
Driving Speed Sampling:
- Length=0.25mm, Vt=0.135 mm/s
- Length=0.8mm, Vt=0.5mm/s
- Length=2.5mm, Vt=1mm/s
Returning: Vt=1mm/s
Profile Digital Filter RC, PC-RC, GAUSS, D-P
Evaluation Length 1L~5L Optional
Data Memory 7 Groups
Operating Conditions Temperature: 0ºC~50ºC
Humidity: <80%RH
Power Supply Built-in Rechargeable Li-ion Battery
Dimensions 140mm x 52mm x 48mm
Weight 420g
Standard Accessories
  • Main Unit
  • Standard Sample Plate SSP-100
  • Standard Sensor SSP-100
  • Small Screwdriver
  • Carrying Case (B09)
  • Operation Manual
Optional Accessories
  • RS-232C Cable with Software
  • Bluetooth Adapter with Software
  • Extension Rod SER-150
  • Groove Stylus SRP-110
  • Curvature Probe SRP-120
  • Measurement Stand SRS-1
