Specifications
MOQ :
2
Price :
US$305
Brand Name :
Bestone
Model Number :
SRT-6223+
Certification :
CE,ROHS
Place of Origin :
China
Payment Terms :
T/T,Western Union
Supply Ability :
More than 100pcs per month
Delivery Time :
3-5 working days
Packaging Details :
plastic carrying case and white paper box
Model NO. :
SRT-6223+
Accuracy :
±5% or ±5µm,
Principle :
Inductance Type
Resolution :
0.1µm / 1µm,0.1mils
Probe :
Separate Probe.
Power :
Manual or Automatic Power off.
Power Supply :
4X1.5V AAA(Um-4)Battery
Transport Package :
Carrying Case
Specification :
126x65x28mm
Trademark :
BESTONE
Origin :
China
HS Code :
9031809090
Production Capacity :
50000pieces/Year
Description
Digital Surface Profile Gauge SRT-6223+
This handheld Digital Surface Profile Gauge provides fast, accurate measurement of peak-to-valley height on blast cleaned surfaces. Designed for field and laboratory use in surface profile measurement applications.
Key Features
  • Compliant with multiple industry standards: ASTMD-4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI-63101-000
  • Durable tungsten carbide tip rated for approximately 20,000 readings with user-replaceable field service
  • Compact, lightweight design for easy handling and portability
  • Manual or automatic power off functionality
  • Metric/Imperial unit conversion capability
  • Built-in average calculation function
  • Separate probe design for flexible measurement
  • USB data output for PC connectivity
  • Optional Bluetooth data output available
Technical Specifications
Display LCD
Range 0 ~ 800 µm / 29.5 mils
Accuracy ±5% or ±5µm (whichever is greater)
Resolution 0.1µm / 1µm / 0.1 mils
Measurement Principle Inductance Type
Operating Temperature 0 ~ 50°C
Operating Humidity < 80% RH
Power Supply 4x1.5V AAA (UM-4) Battery
Dimensions 126 x 65 x 28 mm
Weight 280 g

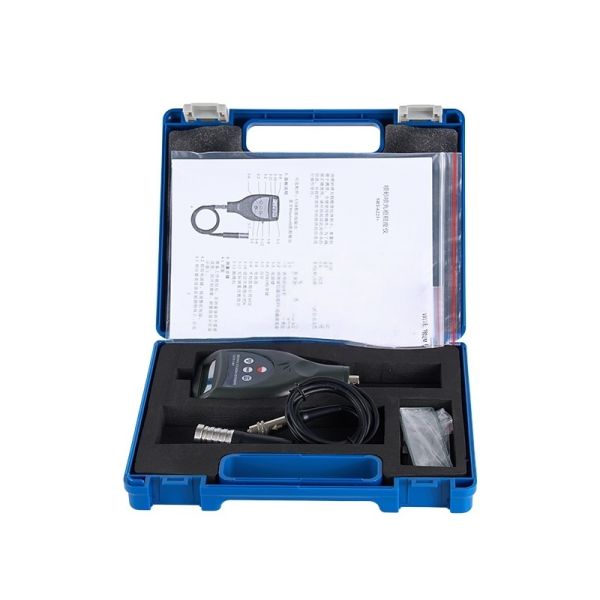

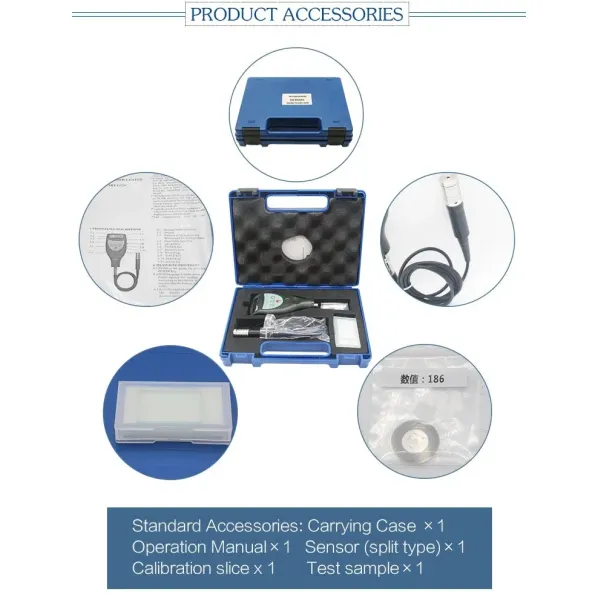

Standard Accessories
  • Main Unit
  • Sensor
  • Standard Sample Plate
  • Carrying Case (B04)
  • Operation Manual
Optional Accessories
  • USB Cable with Software
  • Bluetooth Adapter with Software
