Wt816A Anemometer Wind Speed Sensor Professional Instruments
Introduction and Application
The Wt816A is a digital multifunctional anemometer designed for professional measurement of wind speed, temperature, and humidity. This precision instrument is suitable for various environments including engineering projects, quality control, and health monitoring applications. Ideal for use in factories, schools, offices, transportation routes, and residential settings.
Key Features
- Air velocity and temperature measurement capabilities
- Max/Average/Current air velocity measurement modes
- Temperature unit selection (℃/℉)
- Five selectable air velocity units: M/s, Km/h, ft/min, Knots, mph
- Beaufort scale display (0-12 level)

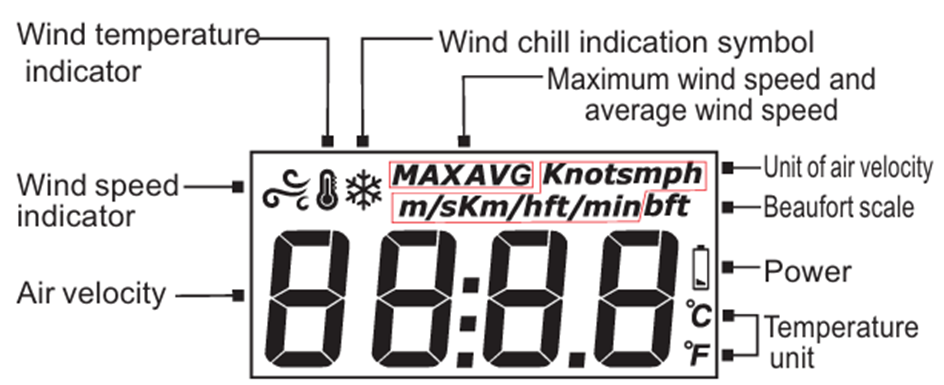

- Backlit display for low-light conditions
- Manual/Auto power shut off functionality
- Wind chill indication and low battery indicator
- IP67 rated for dust and water resistance
Technical Specifications
Wind Velocity
| Unit |
Wind Velocity Range |
Resolution |
Minimum Wind Speed |
Accuracy |
| m/s |
0-30 |
0.1 |
0.7 |
±5%
|
| Ft/min |
0-5860 |
19 |
137 |
| Knots |
0-55 |
0.2 |
1.4 |
| Km/h |
0-90 |
0.3 |
2.5 |
| mph |
0-65 |
0.2 |
1.6 |
Wind Temperature
| Unit |
Scale |
Resolution |
Accuracy |
| ℃ |
-10℃-45℃ |
0.2 |
±2℃ |
| ℉ |
14℉-113℉ |
0.36 |
±3.6℉ |
Additional Specifications
Storage Conditions: Temperature: -40℃~60℃ (-40℉~140℉), Humidity: 10%RH-90%RH
Power supply: Cr2032 3.0V (Included)
Temperature sensor: Negative Temperature Coefficient Resistance
Operation temperature: -10℃~45℃ (14℉~113℉)
Operation humidity: Less than 90%RH
Current consumption: About 3mA
Dimensions: Meter: 47x21x126mm
Product Weight: 84.5g (with battery and lanyard)
