Specifications
MOQ :
2
Price :
US$50
Brand Name :
Bestone
Model Number :
AM-1236V
Certification :
CE,ROHS
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
More than 500pcs per month
Delivery Time :
5-8 working days
Packaging Details :
PP box and paper box and outer cartons
Model NO. :
AM-1236V
Application :
Anemometer, Vehicle, Ultrasonic Speed, Net Speed
Display :
Digital
Detection Method :
Non-contact
Connection Type :
Wire
Noctilucence :
Backlight
Weight :
>100g
Test Range :
M/S: Range:0.4-45.0
Air Flow :
0-9999 FT3/Min
Scale :
0-12
Wave Height :
0-14
Air Tempearture :
0-60 Degree
Transport Package :
Gift Box and Carrying Case
Specification :
Measurement units: Air velocity:m/s,km/h,ft/min,kn
Trademark :
BESTONE
Origin :
China
HS Code :
9015800090
Production Capacity :
50000pieces/Year
Description
Multi-Function Anemometer with Temperature Measuring AM-1236V
The AM-1236V is a precision multi-function meter designed to measure essential wind parameters including air flow, air velocity (Beaufort scale), wave height estimation, and air temperature. Featuring instant unit conversion, data hold function, and memory storage for 24 data groups, this instrument utilizes advanced LSI microprocessor technology for exceptional accuracy across its entire temperature range.
Key Applications
Ideal for weather analysis, marine navigation, HVAC system monitoring, boiler/refrigeration data collection, and outdoor activities including sailing, paragliding, skiing, kite flying, and more. Essential for professionals in fire departments, environmental monitoring, and industrial ventilation systems.

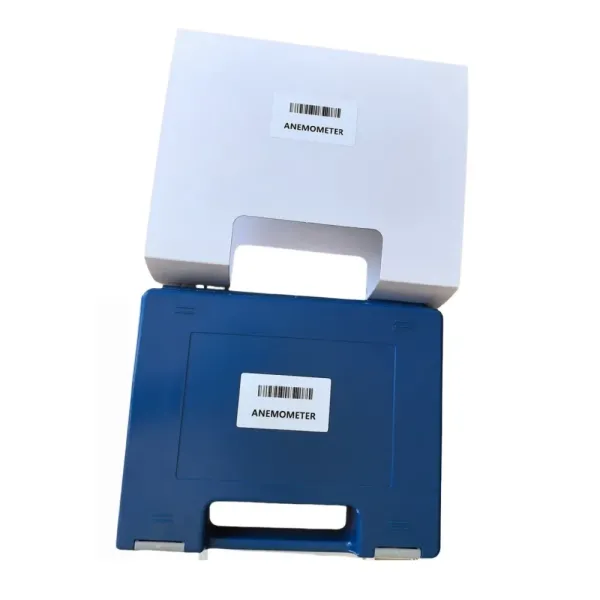

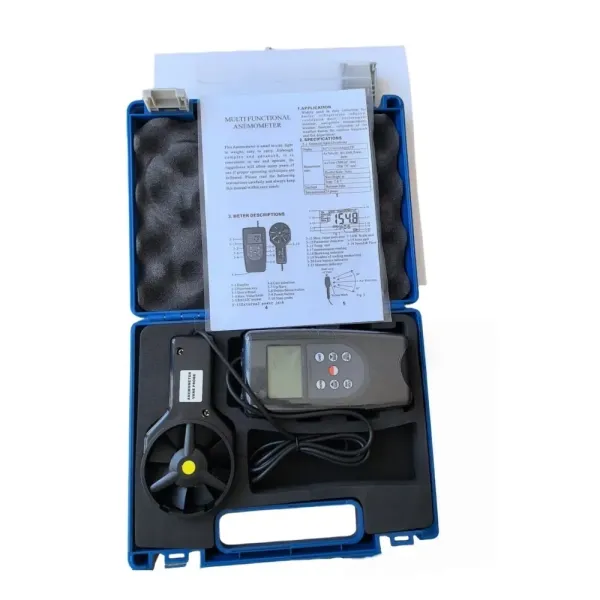

Standard Accessories
  • Main Unit × 1pc
  • Carrying Case × 1pc
  • Operation Manual × 1pc
  • Sensor × 1pc
Optional Accessories
  • RS-232 Data Cable With Software × 1 set
  • Bluetooth Data Adapter With Software × 1pc
Product Features
  • Versatile measurement capabilities for air conditioning, heating systems, wind speed, and temperature
  • Selectable measurement units for different requirements
  • Maximum value data hold function
  • Stores 24 groups of measurement data
  • Low-friction ball-bearing vane design for accurate readings
  • Separate sensor design for convenient measurement
  • Adjustable auto power-off (0-9 minutes)
  • RS-232 and Bluetooth data output options
Technical Specifications
Parameter Details
Display 0.5" (13mm) 4-digit LCD
Measurement Units Air velocity: m/s, km/h, ft/min, knots
Air flow: CMM (M³/min), CFM (Ft³/min)
Beaufort scale, Wave height (m)
Temperature: °C, °F
Data Functions Hold (Maximum Value), 24-group memory
Sampling Rate Approx. 1 reading per second
Sensors Angled vane arms with ball bearing (velocity/flow)
Precision thermistor (temperature)
Power Supply 4 × 1.5V AAA batteries
Dimensions Main Unit: 156 × 67 × 28 mm (6.1 × 2.6 × 1.1 in)
Sensor Head: 72 mm diameter
Weight 260 g / 0.57 lb (including batteries)
Measurement Ranges & Accuracy
Parameter Range Resolution Accuracy
Air Velocity (m/s) 0.40 - 45.0 0.1 ± (2% + 0.1m/s)
Air Velocity (km/h) 1.4 - 162.0 0.1 ± (2% + 0.1km/hr)
Air Velocity (ft/min) 80 - 8860 0.1 ± (2% + 1ft/min)
Air Velocity (knots) 0.8 - 88.0 0.1 ± (2% + 0.1 knots)
Air Flow (CMM) 0 - 9999 m³/min 0.001 to 1 ± (2% + 1 m³/min)
Air Flow (CFM) 0 - 9999 ft³/min 0.001 to 1 ± (2% + 1 ft³/min)
Beaufort Scale 0 - 12 0.1 ± 0.5
Wave Height 0 - 14 0.1 ± 0.1
Air Temperature 32°F - 140°F
0°C - 60°C		 0.1°F
0.1°C		 0.9°F
0.5°C

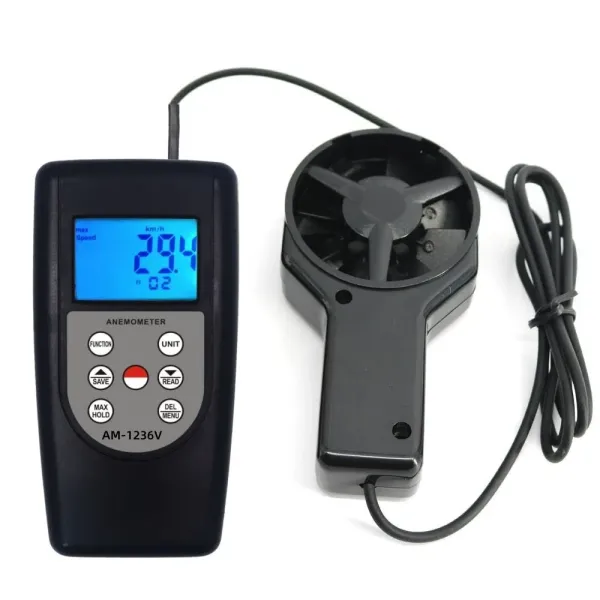

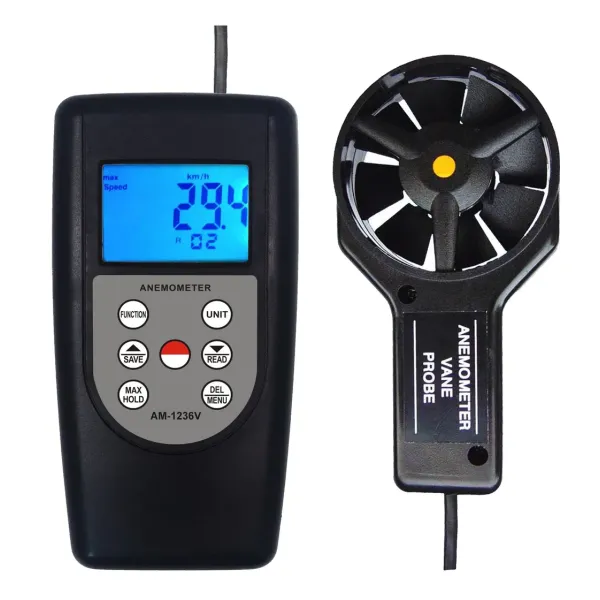

Product Images
AM-1236V Multi Function Digital Anemometer RS-232 Data Output for Air Flow Measuring AM-1236V Multi Function Digital Anemometer RS-232 Data Output for Air Flow Measuring AM-1236V Multi Function Digital Anemometer RS-232 Data Output for Air Flow Measuring AM-1236V Multi Function Digital Anemometer RS-232 Data Output for Air Flow Measuring AM-1236V Multi Function Digital Anemometer RS-232 Data Output for Air Flow MeasuringAM-1236V Multi Function Digital Anemometer RS-232 Data Output for Air Flow Measuring
