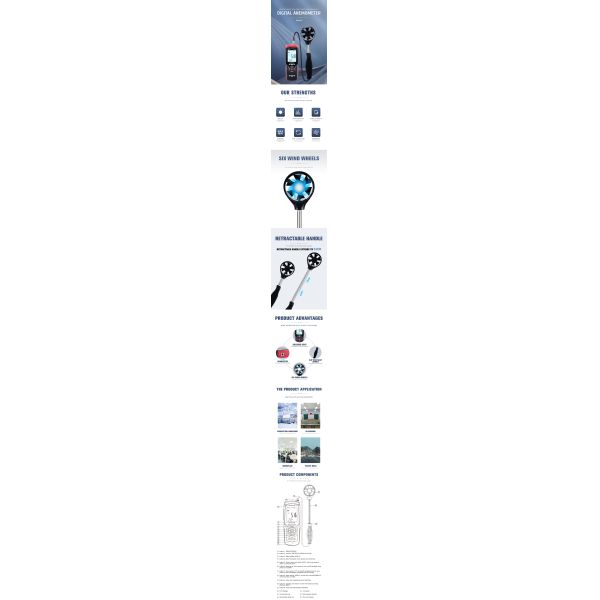

Digital Anemometer Model: GT8913
Product Overview
The GT8913 Digital Multifunctional Anemometer is a professional instrument designed for precise measurement of wind speed, temperature, and humidity. This versatile device is engineered for various environmental applications including wind speed measurement engineering, quality control, and health monitoring. Suitable for use in factories, schools, offices, transportation routes, and residential settings.
Key Features
- Simultaneous measurement of current wind speed, temperature, and humidity
- Measurement of current air volume, temperature, and humidity levels
- Wind speed/flow measurement with MAX, MIN, and average values
- 2/3 wind flow value and average value calculations
- Selectable units for wind speed/flow and temperature
- Wind direction angle measurement capability
- Backlight display and data hold (HOLD) function
- Low battery indication for power management
- Automatic shutdown setting for energy efficiency
Technical Specifications
Wind Velocity Range
| Unit |
Wind Velocity Range |
Resolution |
Lowest Start Value |
Accuracy |
| m/s |
0.0-45.0 |
0.01 |
0.3 |
±3%±0.1 |
| Ft/min |
0.0-8800 |
0.01/0.1/1 |
60 |
±3%±20 |
| Knots |
0.0-88.0 |
0.01 |
0.6 |
±3%±0.2 |
| Km/h |
0.0-140.0 |
0.01 |
1 |
±3%±0.4 |
| mph |
0.0-100 |
0.01 |
0.7 |
±3%±0.2 |
Wind Flow Range
CFM: 0-999900 ft³/min | CMM: 0-999900 m³/min
| Unit |
Range |
Resolution |
Area |
| CFM (FT³/MIN) |
0-999900 |
0.001-100 |
0.001-9999 FT² |
| CMM (m³/min) |
0-999900 |
0.001-100 |
0.001-9999 M² |
Unit Conversion
| |
m/s |
Ft/min |
knots |
Km/h |
Mph |
| 1m/s |
1 |
196.87 |
1.944 |
3.60 |
2.24 |
| 1ft/min |
0.00508 |
1 |
0.00987 |
0.01829 |
0.01138 |
| 1knots |
0.5144 |
101.27 |
1 |
1.8519 |
1.1523 |
| 1km/h |
0.2778 |
54.69 |
0.54 |
1 |
0.6222 |
| 1mph |
0.4464 |
87.89 |
0.8679 |
1.6071 |
1 |
Wind Temperature
| Unit |
Scale |
Resolution |
Accuracy |
| ℃ |
0-45 |
0.1 |
±1.0℃ |
| ℉ |
32-113 |
0.18 |
±1.8℉ |
Humidity Range
| Unit |
Min/Max |
Resolution |
Accuracy |
Test Conditions |
| %RH |
10-90 |
0.1 |
±5% |
90%RH (non-condensing) |
Operation Conditions
| Temperature |
0~50℃ (32~122℉) |
| Humidity |
40~80%RH |
Storage Conditions
| Temperature |
-40~60℃ (-40~140℉) |
| Humidity |
≤80%RH |
Additional Specifications
- Power Supply: AAA 1.5V Alkaline battery × 4
- Dimensions: Meter - 73×38×194mm | Vane - 74×35×2100mm (After lengthening)
- Product Weight: Host - 212.9g (without battery) | Attached machine - 180g
Package Contents
- Digital Anemometer
- Auxiliary Fan
- 1.5V AAA Alkaline Battery
- English Instruction Manual
- PP Packing Box
