SM206E Solar Energy Monitor with 4-1/2 Bit LCD Display 340nm-1100nm Spectral Range
SM206E Solar Energy Monitor with 4-1/2 Bit LCD Display 340nm-1100nm Spectral Range
SM206E Solar Energy Monitor with 4-1/2 Bit LCD Display 340nm-1100nm Spectral Range
SM206E Solar Energy Monitor with 4-1/2 Bit LCD Display 340nm-1100nm Spectral Range
SM206E Solar Energy Monitor with 4-1/2 Bit LCD Display 340nm-1100nm Spectral Range
SM206E Solar Energy Monitor with 4-1/2 Bit LCD Display 340nm-1100nm Spectral Range
SM206E Solar Energy Monitor with 4-1/2 Bit LCD Display 340nm-1100nm Spectral Range
SM206E Solar Energy Monitor with 4-1/2 Bit LCD Display 340nm-1100nm Spectral Range
Specifications
MOQ :
2
Price :
65
Brand Name :
Bestone
Model Number :
SM206E-Solar
Certification :
CE,ROHS
Place of Origin :
China
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 2000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
paper box and outer carton
Model NO. :
SM206E-Solar
Display :
4-1/2 Bit LCD Display
Usage :
Multi-Functional Energy Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Reactive Energy Meter
Resolution :
0.1W/M2, 0.1 BTU/(FT2-H)
Accuracy :
±10W/M2 [±
Temperature Coefficient :
±0.38W/M2 /°c
Range :
0.0.1-1999.9 W/M2, 0.1-1999.9 BTU/(FT2-
Sampling Time :
0.25s/Time
LCD :
4-1/2 Bit LCD Display,Max Display Value 19999
Spectral Range :
340nm-1100nm
Transport Package :
Carrying Case
Specification :
CE, ROHS
Trademark :
BESTONE
Origin :
China
HS Code :
9031499090
Production Capacity :
500000pieces/Year
Description

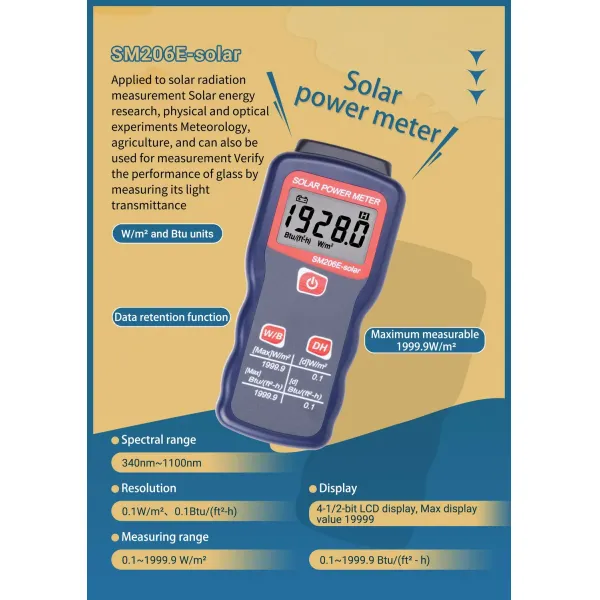

Sm206e-Solar Solar Power Meter, Solar Energy Meter
This precision instrument measures light intensity for solar radiation measurement, solar research, physical and optical experiments, meteorology, and agriculture. It also verifies glass properties by measuring light intensity through materials like vehicle windows.
Key Features
  • Two unit options: W/m² and Btu
  • Peak hold function
  • Data retention function
  • Direct measurement without adjustment
  • Stable measurement for long durations
Technical Specifications
Resolution 0.1W/m², 0.1 Btu/(ft²-h)
Range error ± 10W/m² [±3 Btu/(ft²-h)] or ±5% of measured value
Temperature error ±0.38W/m²/ºC [±0.12 Btu/(ft²-h)/ºC] when deviating from 25ºC
Display 4-1/2-bit LCD display, maximum display value 19999
Drift <±3% / year
Overload display "OL"
Range 0.1-1999.9 W/m², 0.1-1999.9 Btu/(ft²-h)
Sampling time 0.25 seconds/time
Operating conditions 0°C to 50°C, less than 80%RH
Storage conditions -10°C to 60°C, less than 70%RH
Dimensions 132 (L) x 60 (W) x 38 (H) mm
Weight Approximately 150g
Power 9V battery (included), approximately 100 hours battery life
