SM206 PLUS Solar Power Meter Multi Functional with 3-3/4 LCD Display
SM206 PLUS Solar Power Meter Multi Functional with 3-3/4 LCD Display
SM206 PLUS Solar Power Meter Multi Functional with 3-3/4 LCD Display
SM206 PLUS Solar Power Meter Multi Functional with 3-3/4 LCD Display
SM206 PLUS Solar Power Meter Multi Functional with 3-3/4 LCD Display
SM206 PLUS Solar Power Meter Multi Functional with 3-3/4 LCD Display
SM206 PLUS Solar Power Meter Multi Functional with 3-3/4 LCD Display
SM206 PLUS Solar Power Meter Multi Functional with 3-3/4 LCD Display
Specifications
MOQ :
5
Price :
Negotiable
Brand Name :
Bestone
Model Number :
SM206PLUS
Certification :
CE,ROHS
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 2000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
box and outer carton
Model NO. :
SM206PLUS
Display :
3-3/4LCD Display
Usage :
Multi-Functional Energy Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Reactive Energy Meter
Resolution :
0.1W/M2, 0.1 BTU/(FT2-H)
Accuracy :
±10W/M2 [±
Temperature Coefficient :
±0.38W/M2 /°c
Range :
0.1-399.9 W/M2, 1-3999 W/M2, 0.1-399.9 BTU/(FT2-H)
Sampling Time :
0.25s/Time
Transport Package :
Carrying Case
Specification :
CE, ROHS
Trademark :
BESTONE
Origin :
China
HS Code :
9031499090
Production Capacity :
500000pieces/Year
Description

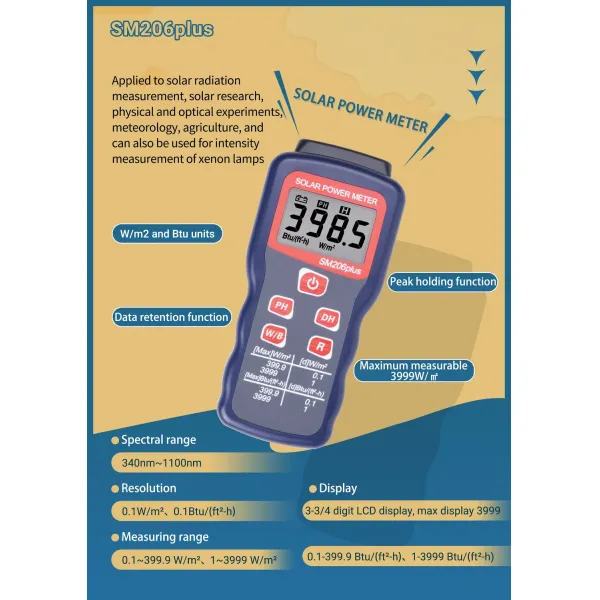

Sm206plus Solar Power Meter, Solar Meter

This precision instrument measures light intensity for solar radiation measurement, solar research, physical and optical experiments, meteorology, and agriculture. It also verifies glass properties by measuring light intensity through materials like vehicle windows.

Key Features
  • Two unit options: W/m² and Btu
  • Peak hold function
  • Data retention capability
  • Direct measurement without adjustment
  • Stable long-term measurement performance
Technical Specifications
Resolution 0.1W/m², 0.1 Btu/(ft²-h)
Range Error ±10W/m² [±3 Btu/(ft²-h)] or ±5% of measured value
Temperature Error ±0.38W/m²/ºC [±0.12 Btu/(ft²-h)/ºC] when deviating from 25ºC
Display 3-3/4LCD display, maximum display value 3999
Drift <±3% / year
Overload Display "OL"
Measurement Range 0.1-399.9 W/m², 1-3999 W/m²
0.1-399.9 Btu/(ft²-h), 1-3999 Btu/(ft²-h)
Sampling Time 0.25 seconds/time
Operating Conditions 0°C to 50°C at less than 80%RH
Storage Conditions -10°C to 60°C at less than 70%RH
Dimensions 132 (L) * 60 (W) * 38 (H) mm
Weight Approximately 150g
Power Requirements 9V battery (approximately 100 hours battery life)
