SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C
SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C
SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C
SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C
SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C
SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C
SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C
SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C
SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C
SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C
Specifications
MOQ :
10
Price :
negotiable
Brand Name :
Bestone
Model Number :
SM206-SOLAR
Certification :
CE, ROHS
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
more than 2000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
paper box and outer carton
Model NO. :
SM206-Solar
Resolution :
0.1W/M2, 0.1 BTU/(FT2-H)
Accuracy :
±10W/M2 [±
Temperature Coefficient :
±0.38W/M2 /°c
Range :
0.1-399.9 W/M2, 1-3999 W/M2, 0.1-399.9 BTU/(FT2-H)
Sampling Time :
0.25s/Time
Transport Package :
Carrying Case
Specification :
CE, ROHS
Trademark :
BESTONE
Origin :
China
HS Code :
9031499090
Description
Solar Power Meter (SM206-Solar)
Introduction and Applications

This precision instrument measures light intensity for various applications including solar radiation measurement, solar research, physical and optical experiments, meteorology, and agriculture. It can also assess glass light intensity to verify properties, such as measuring light transmission through vehicle windows.

Product Features
  • Selectable measurement units: W/m² and Btu
  • 4½-digit digital display
  • Data retention function
  • Wide measurement range without adjustment
SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C
Technical Specifications
Parameter Value
Resolution 0.1W/m², 0.1 Btu/(ft²-h)
Range error ±10W/m² [±3 Btu/(ft²-h)] or ±5% of measured value
Temperature error ±0.38W/m²/℃ [±0.12 Btu/(ft²-h)/ºC] when deviating from 25℃
Display 4½-bit LCD display, maximum display value 19999
Drift <±3% / year
Overload display "OL"
Measuring range 0.1-1999.9 W/m², 0.1-3999 Btu/(ft²-h)
Wave length range 340nm-1100nm, incidence angle normal direction less than ±45 degree
Sampling time 0.25 seconds/time
Operating conditions 0°C to 40°C at less than 80%RH
Storage conditions -10°C to 50°C at less than 70%RH
Dimensions 132 (L) × 60 (W) × 38 (H) mm
Weight Approximately 150g
Power 9V battery (approximately 100 hours battery life)
Display Description
  1. Value retention symbol
  2. Displayed data
  3. Low battery symbol
  4. Btu/(ft²-h)
  5. W/m²
  6. The decimal point
SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C

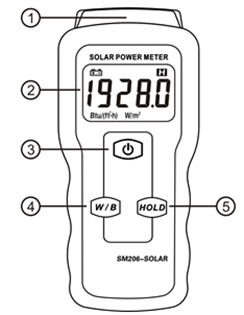

Keypad Description
  1. Photosensitive window
  2. LCD display
  3. ON/OFF button
  4. W/B: Units W/㎡ and Btu selection key
  5. HOLD: Value retention Key
SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C

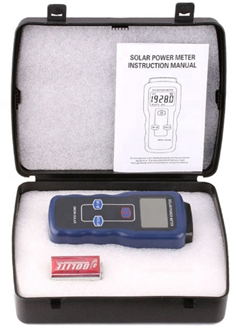

Package Contents
  • Main Unit
  • Instruction manual
  • 9V battery
  • Paper box
SM206 Solar Power Meter with Selectable Units W/m² Btu ±10W/m² Temperature Coefficient ±0.38W/m²/°C
