Specifications
Brand Name :
Hengshou
Model Number :
HSSDE
Certification :
ISO SGS
Place of Origin :
China
MOQ :
1 set
Price :
$360-800 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800 set per month
Delivery Time :
30-40 days
Packaging Details :
1. Standard import and export wooden case 2. According to customer requirements, the packaging method can be negotiated.
Product name :
Cocoon drying machine sericulture equipment
Features :
Powerful,high pressure
Power :
Up to 2300W(or Customized)
Centrifugal fan sizes :
200mm-600mm(or Customized)
Speed control x :
Speed Controller(AC) or PWM/0-10V Input(DC & Ec)
Description

OEM/ODM Automatic Silkworm Cocoon Drying Machine Sericulture Equipment Processing Line

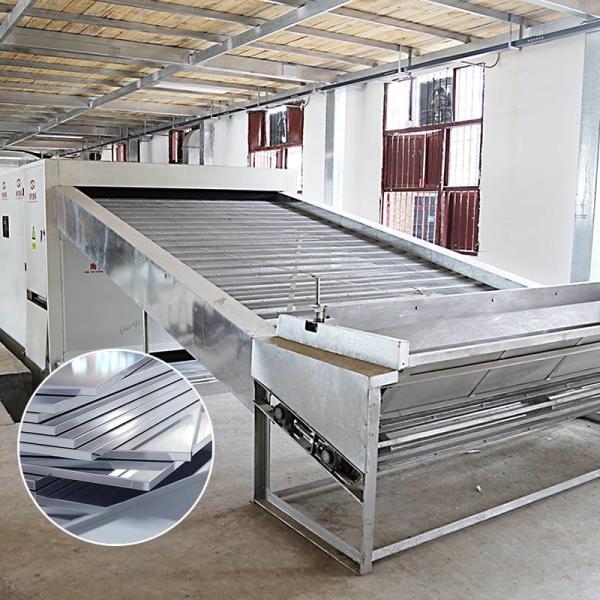

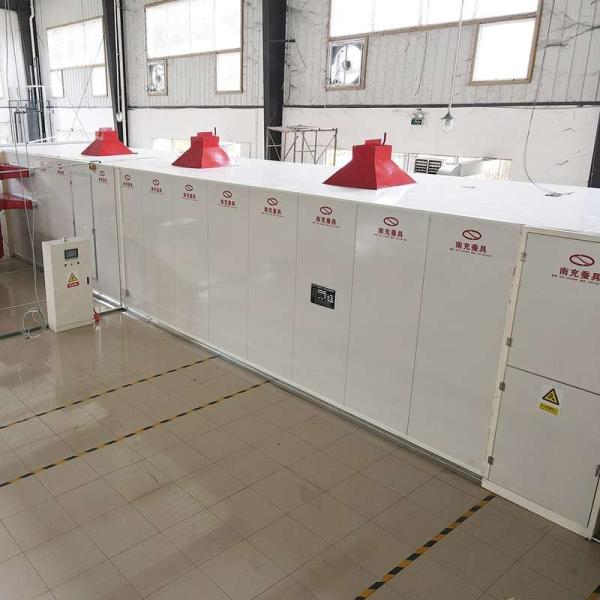

The hot air cocoon drying machine is mainly composed of a drying chamber and a circulating cocoon net. The drying room is rectangular, with two layers of clapboards parallel to the cocoon net, so that the indoor temperature is divided into three zones: high, medium and low. The cocoon is dried by hot air of temperature and humidity. There are several types of cocoon nets, such as 6 layers (sections), 8 layers (sections), and 10 layers (sections). The maximum temperature of the cocoon drying machine is controlled below 110°C, which can achieve a drying capacity of 10,000kg of semi-dry cocoons and 6,000 to 7,000kg of dry cocoons per day.

The drying process of fresh cocoons goes through two stages, namely the constant speed drying stage in which a certain amount of water is evaporated within a certain period of time (the temperature of the pupae remains basically unchanged in this stage), and the deceleration drying stage in which the amount of water evaporation gradually decreases within a certain period of time. stage.

OEM/ODM Automatic Silkworm Cocoon Drying Machine Sericulture Equipment Processing Line

THE COCOON DRYING MACHINE PARAMENTERS

Model SK-4*6 SK-4*7 SK-4*8 SK-4*9 SK-4*10 SK-4*12
Layer 4 4 4 4 4 4
Paving thickness 41㎡ 50㎡ 60㎡ 69㎡ 75㎡ 82㎡
Drying temperature 60-160℃
Drying cycle 2-5 hours
Dehumidification intensity(kg/24h) 4500-8000 8000-9500 9500-11000 11000-12500 12500-14000 15500-17000
Total power of fan(kw) 15 15 18.5 22 22 30
Total power(kw) 18.5 18.5 22 27.5 27.5 35.5
Dimension(m) 6*2.2*2.7 7*2.2*2.7 8*2.2*2.7 9*2.2*2.7 10*2.2*2.7 12*2.2*2.7

THE COCOON DRYING MACHINE FEATURES
1. The silkworm cocoon is dried evenly. The silkworm cocoon moves horizontally in sections in the drying room and is turned over several times at the same time, and is then dried by hot air to achieve the effect of drying evenly.
2. Using automatic temperature control and fast and convenient digital speed regulation, coupled with air supply and moisture removal pipe network adjustment devices, the network speed, temperature, humidity and air volume can be adjusted according to different drying requirements of silkworm cocoons, which can be suitable for direct drying. , first drying, second drying and other cocoon drying methods.
3. The fuel is widely used, environmental protection and energy saving, sufficient combustion, good smoke and dust removal effect, and can meet the environmental protection requirements.
4. It will not damage the cocoons. The cocoon laying drum has an anti-extrusion device, and the structure of the whole machine is reasonably designed, so the cocoons will not be damaged, so that the dry cocoons of good quality will be baked.
5. One machine is mainly used for drying silkworm cocoons, and it can also dry mushrooms, peppers, and other light and large-grained materials.

THE COMPANY PROFILE
OEM/ODM Automatic Silkworm Cocoon Drying Machine Sericulture Equipment Processing Line

THE PATENT CERTIFICATES
OEM/ODM Automatic Silkworm Cocoon Drying Machine Sericulture Equipment Processing Line

THE SHIPMENT AND PAYMENT
OEM/ODM Automatic Silkworm Cocoon Drying Machine Sericulture Equipment Processing Line
