Silkworm Cocoon Coutinuous Mesh Belt Dryer Sericulture Equipment Drying Processing Line
Silkworm Cocoon Coutinuous Mesh Belt Dryer Sericulture Equipment Drying Processing Line
Silkworm Cocoon Coutinuous Mesh Belt Dryer Sericulture Equipment Drying Processing Line
Silkworm Cocoon Coutinuous Mesh Belt Dryer Sericulture Equipment Drying Processing Line
Silkworm Cocoon Coutinuous Mesh Belt Dryer Sericulture Equipment Drying Processing Line
Silkworm Cocoon Coutinuous Mesh Belt Dryer Sericulture Equipment Drying Processing Line
Silkworm Cocoon Coutinuous Mesh Belt Dryer Sericulture Equipment Drying Processing Line
Silkworm Cocoon Coutinuous Mesh Belt Dryer Sericulture Equipment Drying Processing Line
Specifications
Brand Name :
Hengshou
Model Number :
HSSDE01
Certification :
ISO SGS
Place of Origin :
China
MOQ :
1 set
Price :
$360-800 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800 set per month
Delivery Time :
30-40 days
Packaging Details :
1. Standard import and export wooden case 2. According to customer requirements, the packaging method can be negotiated.
Product name :
Cocoon belt dryer sericulture equipment
Features :
Powerful,high pressure
Power :
Up to 2300W(or Customized)
Centrifugal fan sizes :
200mm-600mm(or Customized)
Speed control x :
Speed Controller(AC) or PWM/0-10V Input(DC & Ec)
Description

Silkworm Cocoon Coutinuous Mesh Belt Dryer Sericulture Equipment Drying Processing Line

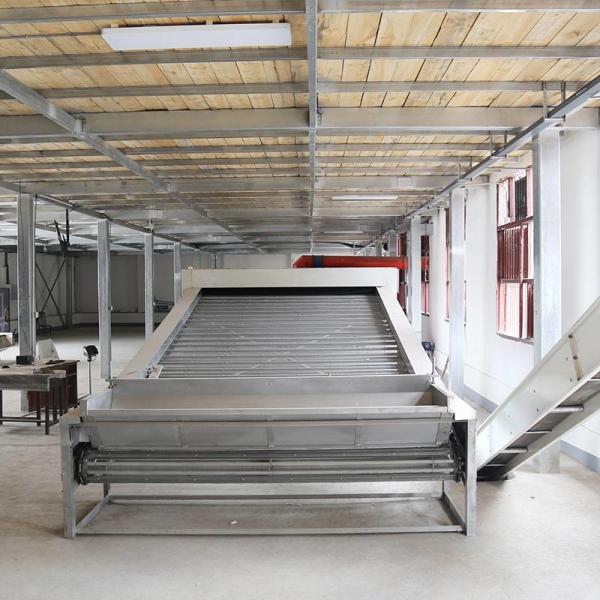

The hot air cocoon drying machine is mainly composed of a drying chamber and a circulating cocoon net. The cocoon webs move in opposite directions between layers. When drying the cocoons, the automatic cocoon laying device spreads the fresh cocoons on the cocoon net from the upper layer, the fan conducts heat exchange by forced convection, and sends the hot air outside the machine into the drying room through the air duct. The bagging device will bag the dry cocoons from the lower layer.Silkworm Cocoon Coutinuous Mesh Belt Dryer Sericulture Equipment Drying Processing Line

THE SILKWORM SERICULTURE EQUIPMENT PARAMENTERS

Model SK-4*6 SK-4*7 SK-4*8 SK-4*9 SK-4*10 SK-4*12
Layer 4 4 4 4 4 4
Paving thickness 41㎡ 50㎡ 60㎡ 69㎡ 75㎡ 82㎡
Drying temperature 60-160℃
Drying cycle 2-5 hours
Dehumidification intensity(kg/24h) 4500-8000 8000-9500 9500-11000 11000-12500 12500-14000 15500-17000
Total power of fan(kw) 15 15 18.5 22 22 30
Total power(kw) 18.5 18.5 22 27.5 27.5 35.5
Dimension(m) 6*2.2*2.7 7*2.2*2.7 8*2.2*2.7 9*2.2*2.7 10*2.2*2.7 12*2.2*2.7

THE SILKWORM SERICULTURE EQUIPMENT FEATURES
The drying process of fresh cocoons goes through two stages, namely the constant speed drying stage in which a certain amount of water is evaporated within a certain period of time (the temperature of the pupae remains basically unchanged in this stage), and the deceleration drying stage in which the amount of water evaporation gradually decreases within a certain period of time. stage. The characteristic of this period is that the temperature of the pupa, the temperature of the cocoon layer and the temperature of the cocoon cavity changed with the drying time, and the temperature gradually increased, and then reached the same temperature as the drying medium.
1. Drying of the cocoon layer
The moisture content of the fresh cocoon layer is about 12%. There is no constant speed drying stage in the drying process, but a deceleration drying stage from the beginning.
2. Drying of pupa
The moisture content of fresh pupae is about 77%. In a short period of time, the evaporation of water is hindered and the evaporation is slow. When the water in the pupae begins to evaporate rapidly and maintain a constant rate of drying. At this time, the temperature of the pupa remains basically unchanged. After a period of time, it entered the first and second stages of deceleration drying. During this period, the evaporation rate of water gradually slowed down, the temperature of the pupa body gradually increased, and the equilibrium water was reached later.
3. Drying of fresh cocoons
The cocoon layer is always dried with a certain moisture content (6-7%). When the fresh cocoon enters the cocoon drying machine, the moisture of the cocoon layer evaporates rapidly, and the moisture content of the cocoon layer drops to about 4%. In the early stage of drying (about 10 minutes), the drying temperature should be slightly lower, so that the moisture in the cocoon layer will be released. Evenly, reduce the rapid thermal effect, so that the subsequent heat treatment tends to be stable.
THE COMPANY PROFILE

Silkworm Cocoon Coutinuous Mesh Belt Dryer Sericulture Equipment Drying Processing Line

THE PATENT CERTIFICATES
Silkworm Cocoon Coutinuous Mesh Belt Dryer Sericulture Equipment Drying Processing Line

THE SHIPMENT AND PAYMENT
Silkworm Cocoon Coutinuous Mesh Belt Dryer Sericulture Equipment Drying Processing Line
