Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
Specifications
Brand Name :
BEDE
Model Number :
PC
Certification :
RoHS
Place of Origin :
China
MOQ :
50Pcs
Price :
Negotiation
Payment Terms :
Western Union,T/T
Supply Ability :
5000pcs per week
Delivery Time :
10~15 days
Packaging Details :
cartons
Shell Base Material :
Aluminum alloy
Connection method :
Threaded connection/Straight insertion
Connectors :
Cable plug / Panel socket
Contact material: :
Silver-plated / Goldplated
Insulating panel :
Fiberglass / Bakelite
Insulation Resistance :
≥1000MΩ
Contact resistance :
≤ 5 mQ
Mechanical life: :
500 times
temperature range :
-60- 200°
Working voltage: :
400 volts
Working current: :
5 - 40A
Pin code :
PC-4 / PC-7 / PC-10 / PC-19 / PC-32 / PC-50
Description

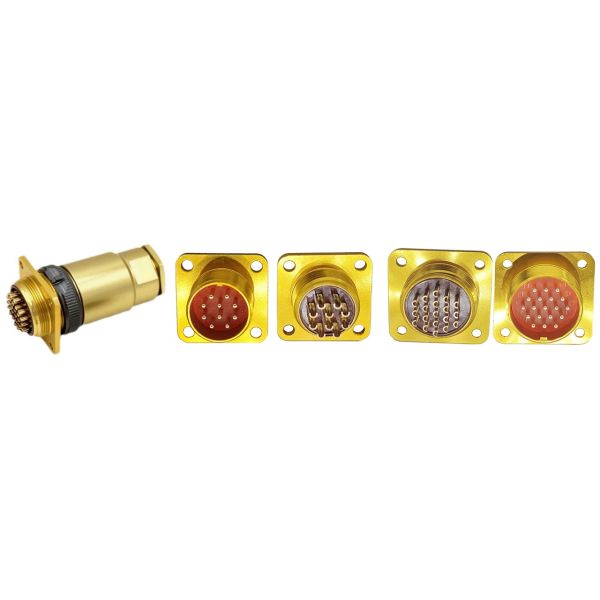

Russian Standard PC Series MIL Circular Connectors
Professional-grade cable plug with tail and socket connectors designed for reliable electrical connections in radio and electrical equipment applications.
PC Series Connector Overview
The PC series circular connectors provide compact, lightweight aluminum housing solutions for electrical connections in radio and electronic equipment. These connectors feature threaded connection nuts for secure attachment and support both sealed and unsealed versions with tail accessories.
Key features include:
  • Compact design with lightweight aluminum housing
  • Reliable electrical connections
  • Easy to install and use
  • Available in sealed and unsealed versions
  • Socket has pins, plug has jacks
  • Multiple pin configurations: 4, 7, 10, 19, 32, and 50-pin
  • Compatible with Russian PC-4, PC-7, PC-10, PC-19, PC-32, and PC-50 standards
Dongguan BEDE mold and plastic products CO. Ltd. offers color customization for PC series connectors. Available colors include standard gold, light gold, olive green, dark black, and silver.
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
PC Series Cable Plug With Tail Dimensions
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
Pins D (mm) d (mm) L (mm)
PC4 8 6 36
PC7 10 8 38
PC10 12 9 41
PC19 15.5 11 43
PC32 19.5 13 45
PC50 24 16 48

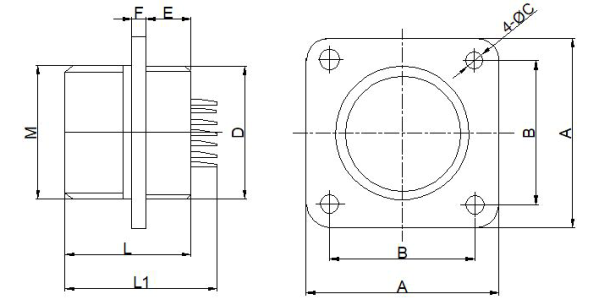

PC Series Socket Without Tail Dimensions
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
Pins A B C D & M E F L L1 M
PC4 16.5 11.8 2.2 M10X0.75 4.5 1.4 13 16 M10X0.75
PC7 18 13.2 2.2 M12X0.75 4.5 1.4 13 16 M12X0.75
PC10 20 15 2.2 M14X0.75 4.5 1.4 13 16 M14X0.75
PC19 24 18 2.2 M18X1.0 4.5 1.4 13 16 M18X1.0
PC32 28 21.5 2.7 M22X 1 / 0.75 4.5 1.8 13.3 16.3 M22X 1 / 0.75
PC50 32 26 3.2 M27X 1 / 0.75 4.5 2.0 13 16.5 M27X 1 / 0.75

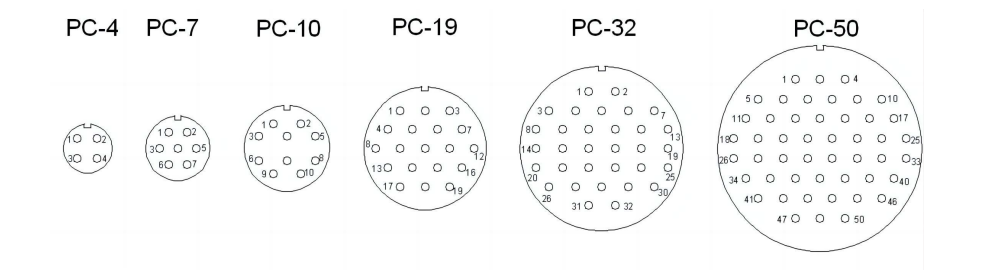

PC Connector Insert Arrangement
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
How to Order
Contact us directly for pricing and availability. For accurate quotations, please provide the product code and required quantity.

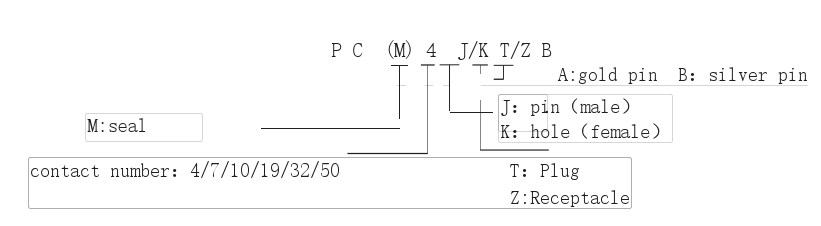

Product Coding Rules
Russian Standard PC Series MIL Circular Connectors Cable Plug With Tail And Socket
Please feel free to contact us at any time. For an accurate quote, please share the code and quantity with us.
