MIL-DTL-5015 Connectors | Heavy-Duty Circular Threaded Connectors

Description

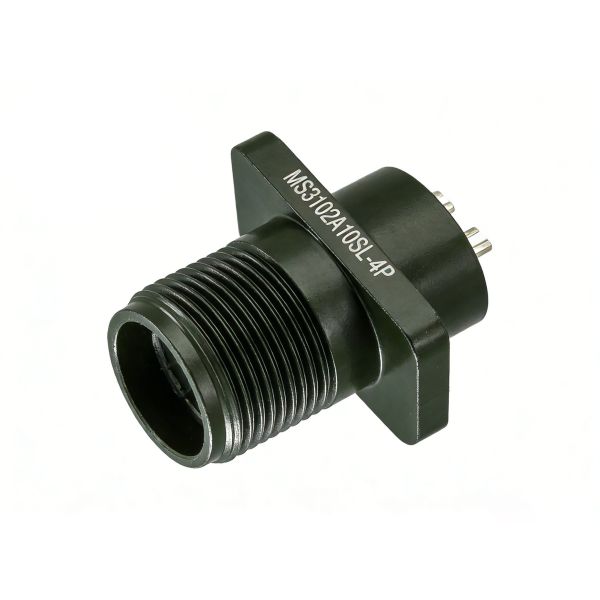

MIL-DTL-5015 is the standard for heavy-duty circular threaded electrical connectors, formerly known as MIL-C-5015. Renowned for high reliability, strong environmental adaptability and wide interchangeability, It is used in aerospace and harsh industrial applications. It is compatible with products from leading manufacturers like Amphenol and ITT Cannon, enabling hassle-free replacement.

Product features

• Shell sizes 10 to 32, 1 to 85 circuits, contact specs 16# to 0#, compatible with wire gauges 24AWG to 0AWG. Max 225A per contact, meeting all signal and power transmission needs.


• Works at an ultra-wide temperature range of -55℃~+125℃, with corrosion, dust, water and salt spray resistance. It can withstand strong vibration, impact and chemical corrosion.


• Compatible with multiple mounting types – straight, angled, wall-mounted, through-wall, and box-mounted options. It meets different wiring and installation needs of equipment, delivering maximum scenario adaptability.


• Easy processing & maintenance: Supports dual processes (soldering/crimping) with front/rear contact disassembly. Enables on-site quick repair and replacement, significantly reducing operational costs.

Size and layout

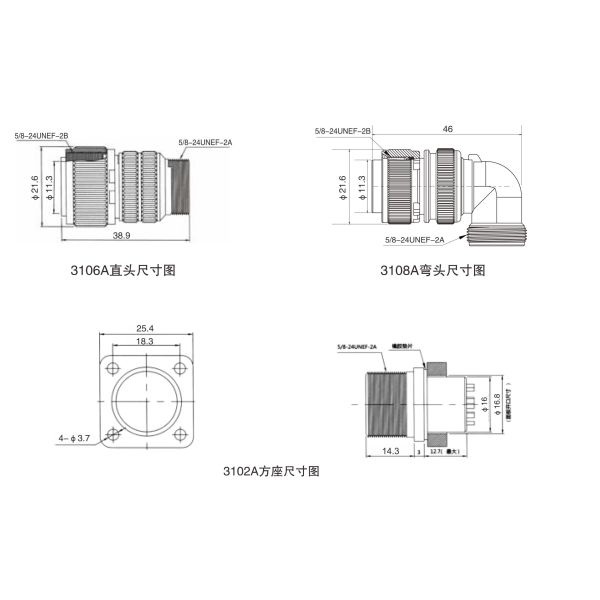

The external dimensions are shown in the image below. Please refer to them and determine if they are suitable for your product.

Note: Drawings available upon request – contact us for details.

Our services

1. Custom connector plastic parts, such as insulator, nut, housing etc..

2. Custom connector internal conductors, male and female pins, with silver or gold plating

3. Custom connector accessories, such as silicone rings and dust covers.
