MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance
MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance
MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance
MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance
MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance
MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance
MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance
MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance
MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance
MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance
Specifications
Brand Name :
BEDE
Model Number :
PC
Certification :
RoHS
Place of Origin :
China
MOQ :
50Pcs
Price :
Negotiation
Payment Terms :
Western Union,T/T
Supply Ability :
5000pcs per week
Delivery Time :
10~15 days
Packaging Details :
cartons
Shell Base Material :
Aluminum alloy
Connection method :
Threaded connection/Straight insertion
Contact material: :
Silver-plated / Gold-plated
Insulating panel :
Glass sintering
Insulation Resistance :
≥20MΩ
Contact resistance :
0.5~2.5 mQ
Mechanical life: :
500 times
temperature range :
-60 ~+450℃
Working voltage: :
400V
Working current: :
5 ~ 40A
Shell Size :
2PM14/18/22/24/27/30/33/36
Termination: :
Solder
Description


MIL Circular Connector For Russian 2PM Standard Straight Cable Plug



The 2PM series circular electrical connectors primarily utilize Russian connector technology, with threaded connections for both the cable plug and panel socket. The panel sockets are equipped with glass-sintered sealed sockets (M) and glass-sintered sealed wall sockets (C), simultaneously meeting the requirements of special environments such as vacuum, sealing, and high temperatures.

MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance

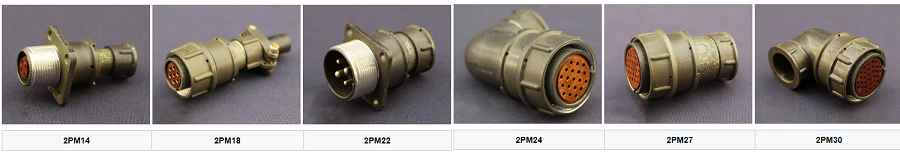

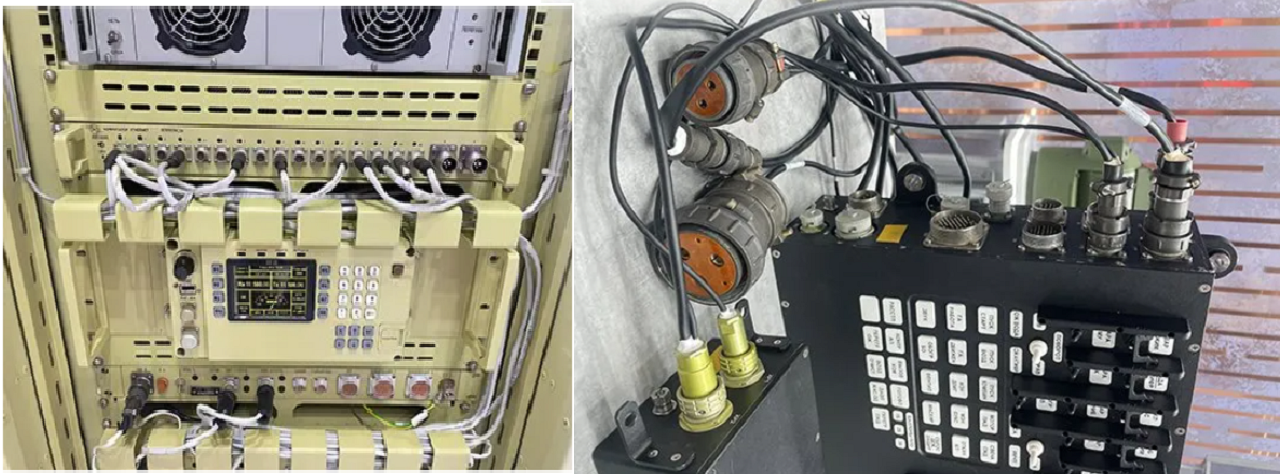

Currently, various specifications are available, including 2PM14/18/22/24/27/30/33/36. Their unique structure and performance have earned widespread market recognition, overcoming the shortcomings of many other similar connectors and making their use more convenient and efficient. Furthermore, they are interchangeable with original components from the Russian 2PMT and 2PMDT series. They are widely used in electrical connections and signal transmission between electrical equipment in railway systems, trams, trolleybuses, and other similar applications.

MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance

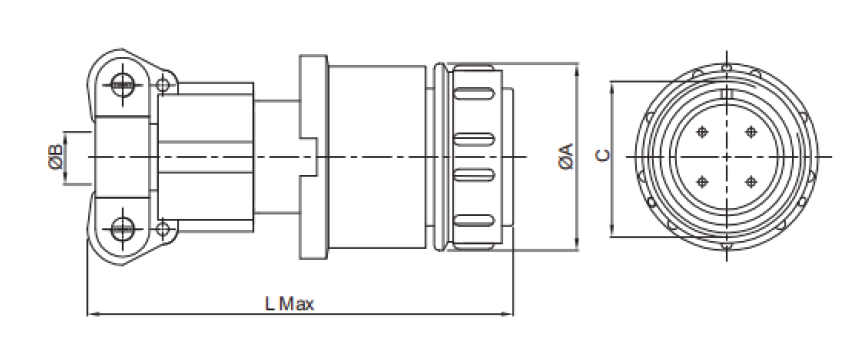

Size of 2PM Series Straight Cable Plug


MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance

shell size 14 18 22 24 27 30 33 36 39 42 45
A max 22 25 29 32 35 39 42 45 48 51 54
B min 6.5 10.5 14.5 16.5 18.5 20.5 23.0 23 24.5 30.5 30.5
C thread M16x1.0 M20x1.0 M24x1.0 M27x1.5 M30x1.5 M33x1.5 M36x1.5 M39x1.5 M39x1.5 M15x1.5 M48x1.5
L max 53.5 53.5 56 62.5 62.5 67.5 67.5 67.5 67.5 67.5




Insert arrangement of 2PM Series Connector

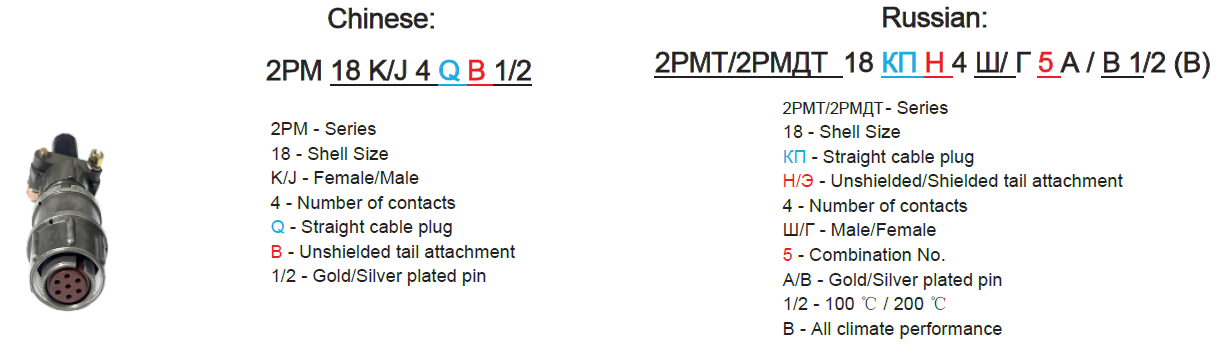

Both Chinese and Russian standards are available; please download and check the PDF files appended to this page.



How to buy

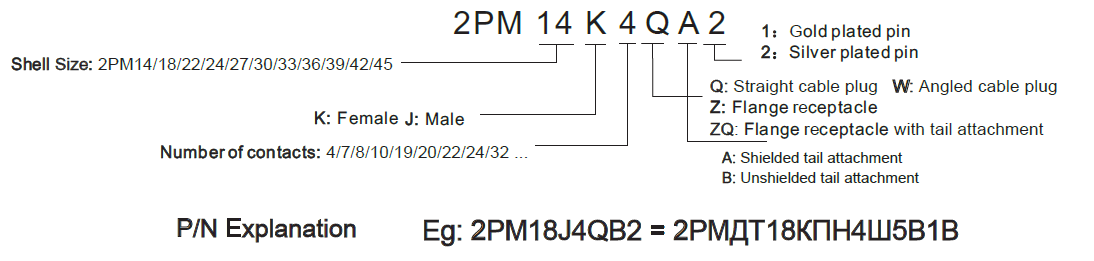

Please feel free to contact us at any time. For an accurate quote, please share the code and quantity with us. The coding rules are as follows:


MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance


MIL Circular Connector Russian 2PM Standard with Threaded Connection Glass-Sintered Insulation and High-Temperature Resistance
