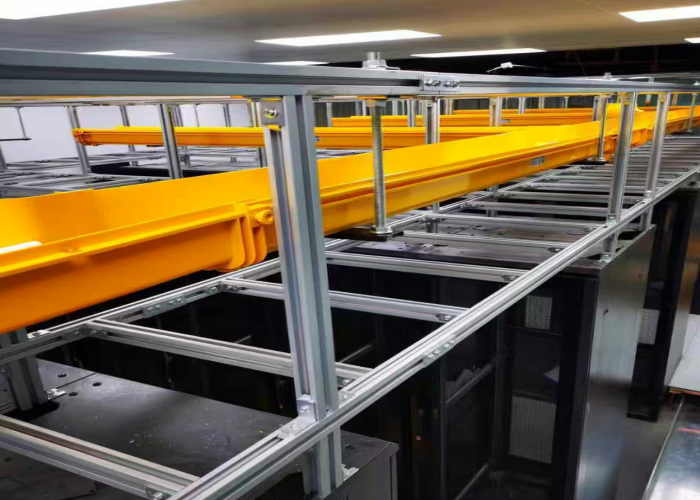

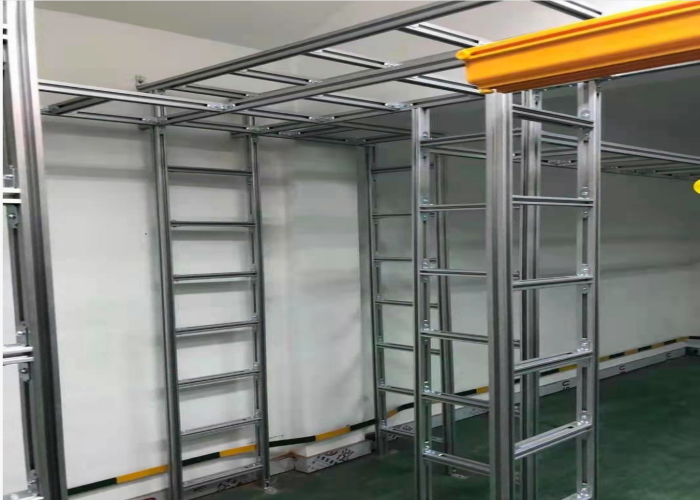

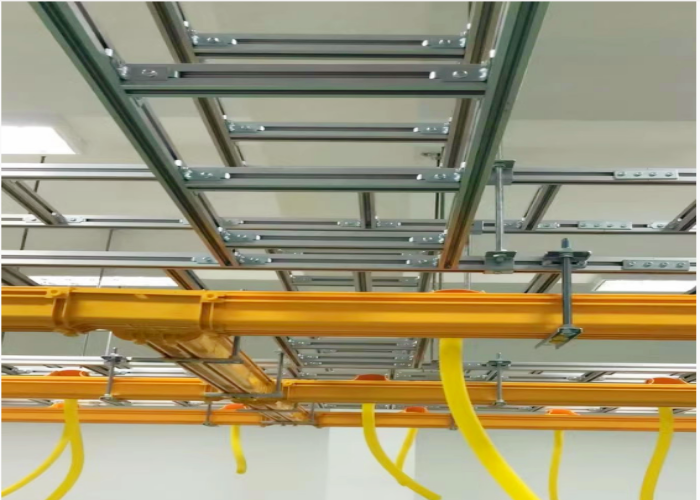

Excellent Ventilation Gi Ladder Cable Tray 6-36 in Width
Excellent Ventilation Gi Ladder Cable Tray 6-36 in Width
Excellent Ventilation Gi Ladder Cable Tray 6-36 in Width
Excellent Ventilation Gi Ladder Cable Tray 6-36 in Width
Excellent Ventilation Gi Ladder Cable Tray 6-36 in Width
Excellent Ventilation Gi Ladder Cable Tray 6-36 in Width
Specifications
Brand Name :
BDINDUSTRIAL
Model Number :
Gi Ladder Cable Tray
Certification :
IEC 61537，BS EN 61537,NEMA/CSA
Place of Origin :
CHINA
MOQ :
100 m
Price :
10-20 USD
Payment Terms :
L/C,D/P,T/T
Supply Ability :
50000m/week
Delivery Time :
15-25 work days
Packaging Details :
Carton, Box, Wooden carton
Product Name :
Galvanized,Cable Ladder
Keywords :
Galvanized Steel Ladder Cable Tray
Material :
Steel,Galvanized
Height :
75-250 mm/3-10 in（customize）
Width :
150-900 mm/6-36 in（customize)
Thickness :
Side Rail: 1.5-3.0 mm; Rung: 2.5-5.0 mm
Rung Spacing :
225 mm, 300 mm, 450 mm（customize)
Support Span :
1.5-9 m
Description

Gi Ladder Cable Tray

The Bending Gi Ladder Cable Tray offers significant advantages:

1.Excellent Ventilation and Heat Dissipation: Prevents cable overheating.

2.High Strength and Load Capacity: The ladder design allows it to support very heavy cables over long spans with minimal support.

3.Easy Installation and Accessibility: Cables can be laid and accessed from any point along the tray effortlessly.

4.Durability and Long Service Life: The galvanized coating protects against rust and corrosion in demanding conditions like factories, power plants, petrochemical facilities, and outdoor installations.

Excellent Ventilation Gi Ladder Cable Tray 6-36 in Width

Excellent Ventilation Gi Ladder Cable Tray 6-36 in Width

Excellent Ventilation Gi Ladder Cable Tray 6-36 in Width

Common Specifications

The specific specifications of the Gi Ladder Cable TrayType depend on the project.

Material Pre-galvanized Steel (PG), Hot-Dip Galvanized Steel (HDG)
Ladder Width

150mm (6"),300mm (12"), 450mm (18"), 600mm (24"), 750mm (30"), 900mm (36")
Side Rail Height

75mm(3"),100mm(4"),150mm (6"),200mm(8"),250mm(10")
Rung Spacing 225 mm, 300 mm, 450 mm
Rung Shape/Type Round, Square, "T-Bar"
Maximum Support Span 1.5m, 3m, 4.5m, 6m, 9m
Accessories Horizontal Bends (30°, 45°, 90°), Vertical Bends, Reducers, Crosses, Tees.
Support Methods Center Hung (Rod & Clamp), Wall Mounted (Cantilever Brackets), Underfloor

Typical Project Applications

The Bending Gi Ladder Cable Tray is the preferred choice in projects that demand high mechanical strength, long spans, heavy cable loads, and resilience in harsh environments.

Industrial & Manufacturing Plants Heavy Industries Steel plants, cement plants, automotive manufacturing
Process Industries Chemical plants, pharmaceutical facilities, paper mills. Here, the open design aids in dissipating heat and fumes from cables
Power Generation & Distribution Power Plants Thermal, hydro, and nuclear power plants for routing massive power cables and control wiring
Substations & Switchyards Both indoor and outdoor installations for supporting high-voltage cables.
Oil & Gas and Petrochemical Refineries, offshore platforms, and pipeline stations The hot-dip galvanized coating provides crucial corrosion resistance against salty, humid, and chemically aggressive atmospheres.
Infrastructure & Transportation Airports For complex cabling networks spanning terminals and hangars
Railways & Metro Systems In tunnels, depots, and stations for power, signaling, and communication cables.
Tunnels & Bridges Where robust support for life-safety and electrical systems is needed
Large-Scale Commercial & Public Facilities Data Centers ladder trays are used in the power distribution pathways and utility spaces for heavy busbars and large feeder cables
Hospitals For main trunking routes of essential power systems
Stadiums & Convention Centers To manage vast amounts of power, lighting, and AV cabling over large open areas with long spans

Frequently Asked Questions

1. Are you a manufacturer?

Yes, we have been in this field for over 30 years.

2. Can you provide samples?

Yes, we can provide samples with our product catalog. (However, the express delivery cost will be borne by you.)

3. What payment terms do you accept?
Payment methods: Wire transfer (T/T), Letter of Credit (L/C), MoneyGram, Credit Card, PayPal, Western Union.

4. What are your shipping terms?
FOB, CNF, CIF, DDU, DDP.

5. What is your delivery time?
We always have ample stock of materials to meet your urgent needs. The fastest delivery time is only 10 days. After placing an order, we will send you the exact delivery time and production schedule.
