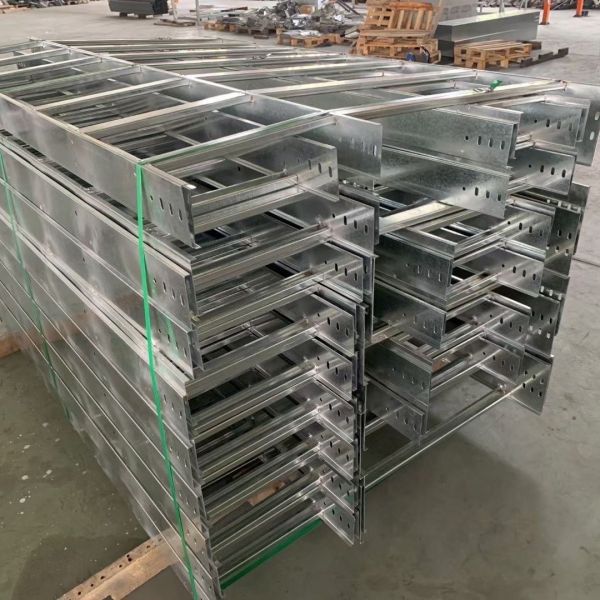

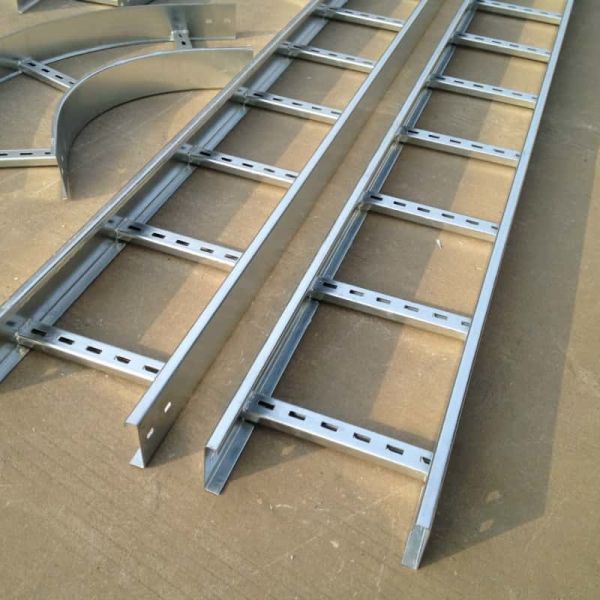

600mm cable ladder

Bending company's 600mm cable ladder typically refers to a ladder-type cable tray with a width of 600 millimeters. This is a cable tray designed for routing large-diameter, high-weight power cables, known for its strong load-bearing capacity and excellent ventilation and heat dissipation.

Here is a detailed analysis and technical selection guide for this specification:

Bending company's cable ladder Core Specification Interpretation

The core parameters of a "600mm cable ladder" directly determine its application positioning:

Bending company's cable ladder Primary Application Scenarios

Due to its exceptional load-bearing and heat dissipation capabilities, the 600mm wide ladder tray is primarily used for these critical power pathways:

• Power Infrastructure: Main cable galleries in power plants and substations.

• Heavy Industrial Plants: Power trunk lines in workshops for steel, petrochemical, and automotive manufacturing.

• Large Transportation Hubs: Power supply trunk line trays in airports and subway stations.

• Data Centers: High-voltage power distribution trunks from the main distribution area to zone distribution cabinets (distinct from data cable mesh trays).

Bending company's cable ladder Key Design, Selection & Installation Considerations

To ensure system safety and reliability, the following engineering details are crucial:

1. Load Calculation is Mandatory: This is the most critical step. Calculate the total weight of all cables (including future expansion) and use supplier data to verify that the deflection of the 600mm wide specification at the planned span meets standards (typically required ≤ span/200).

2. Select the Correct Side Rail Height: A 600mm width must be paired with sufficient side rail height (e.g., 150mm) to ensure overall torsional and bending rigidity, preventing twisting or tipping under load.

3. Focus on Connection Strength: The connection points (splice plates, bolts) of large-width, heavy-load trays are critical weak points. High-strength connectors must be used, and installation torque must meet specifications.

4. Support System Compatibility: The size and strength of hanger rods and trapezes must be system-matched to the tray's load and span. Lateral seismic bracing should be designed for long runs to prevent sway.

5. Tray Fill Ratio: The total cross-sectional area of cables should not exceed 40%-50% of the tray's internal cross-sectional area to ensure heat dissipation and space for future expansion.
