Electrical 6 Inch Stainless Steel Cable Ladder Pre Galvanized
Electrical 6 Inch Stainless Steel Cable Ladder Pre Galvanized
Electrical 6 Inch Stainless Steel Cable Ladder Pre Galvanized
Electrical 6 Inch Stainless Steel Cable Ladder Pre Galvanized
Electrical 6 Inch Stainless Steel Cable Ladder Pre Galvanized
Electrical 6 Inch Stainless Steel Cable Ladder Pre Galvanized
Specifications
Delivery Time :
15-25 work days
Payment Terms :
L/C,D/P,T/T
Supply Ability :
50000m/week
Keywords :
Electrical Cable Ladder
Width :
150-900 mm/6-36 in,etc
Rung Spacing :
225 mm, 300 mm, 450 mm（customize)
Brand Name :
BDINDUSTRIAL
Model Number :
electrical ladder tray
Thickness :
Side Rail: 1.5-3.0 mm; Rung: 2.5-5.0 mm
Support Span :
1.5-9 m
Material :
Galvanized Steel,Stainless Steel, Powder-Coated Steel.
Certification :
BS 476, EN 1363, UL, IEC 60331
Place of Origin :
CHINA
Height :
75-250 mm/3-10 in,etc
Product Name :
Cable Ladder
MOQ :
100 m
Price :
10-20 USD
Packaging Details :
Carton, Box, Wooden carton
Description

Fire Rated Cable Ladder

The Bendin Electrical Ladder Tray typically made from galvanized steel, stainless steel, or specially coated steel.Fireproofing is achieved by applying an intumescent coating to the ladder.

Electrical 6 Inch Stainless Steel Cable Ladder Pre Galvanized

Primary Applications:

1.High-rise buildings

2.Hospitals and healthcare facilities

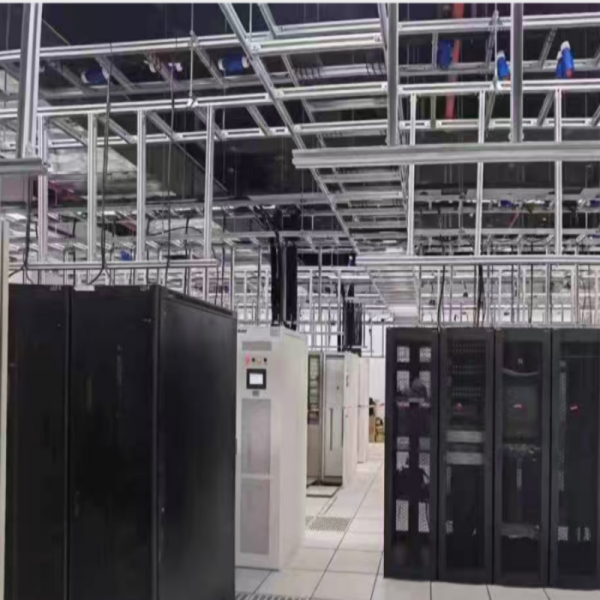

3.Data centers

4.Transportation hubs (airports, subways)

5.Industrial plants with critical infrastructure

6.Any building where maintaining emergency system operation during fire is mandatory.

Electrical 6 Inch Stainless Steel Cable Ladder Pre Galvanized

Material & Specifications

The specific specifications of the Bendin Electrical Ladder Tray depend on the project.

Material Hot-Dip Galvanized, Pre-galvanized,Stainless Steel (304, 316), Powder-Coated Steel
Ladder Width

150mm (6"),300mm (12"), 450mm (18"), 600mm (24"), 750mm (30"), 900mm (36")
Side Rail Height

75mm(3"),100mm(4"),150mm (6"),200mm(8"),250mm(10")
Rung Spacing 225 mm, 300 mm, 450 mm
Rung Shape/Type Round, Square, "T-Bar"
Maximum Support Span 1.5m, 3m, 4.5m, 6m, 9m
Accessories Horizontal Bends (30°, 45°, 90°), Vertical Bends, Reducers, Crosses, Tees.

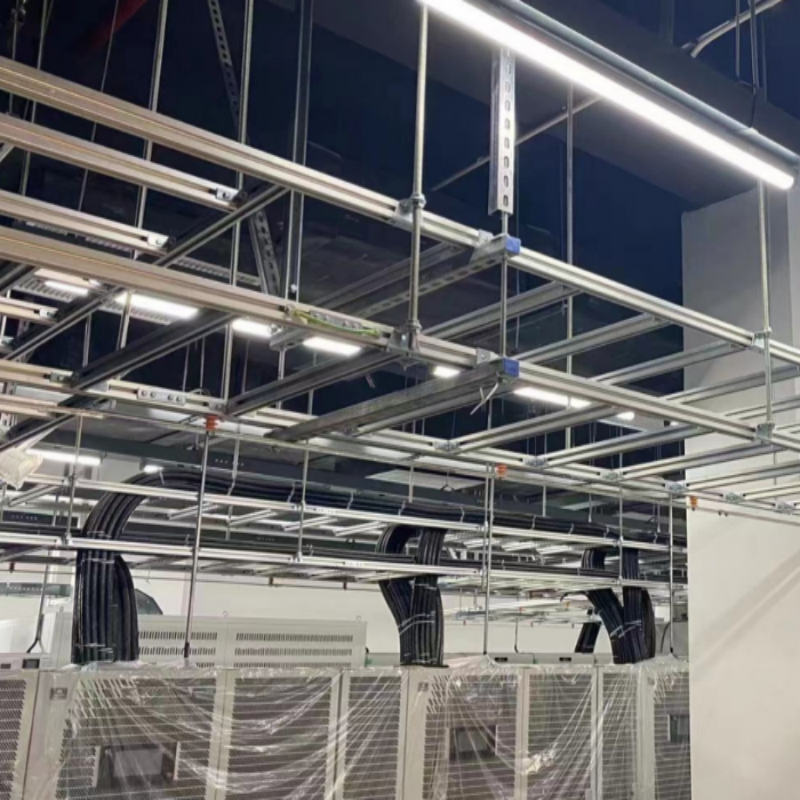

Support Methods Center Hung (Rod & Clamp), Wall Mounted (Cantilever Brackets), Underfloor

Advantages

Bending as a excellent fire rated cable ladder factory possesses the following qualities:
1.Complete certification
2.Stable quality control
3.Strong technical support
4.Reliable delivery
5.Professional after-sales service

Electrical 6 Inch Stainless Steel Cable Ladder Pre Galvanized

Electrical 6 Inch Stainless Steel Cable Ladder Pre Galvanized

Electrical 6 Inch Stainless Steel Cable Ladder Pre Galvanized
