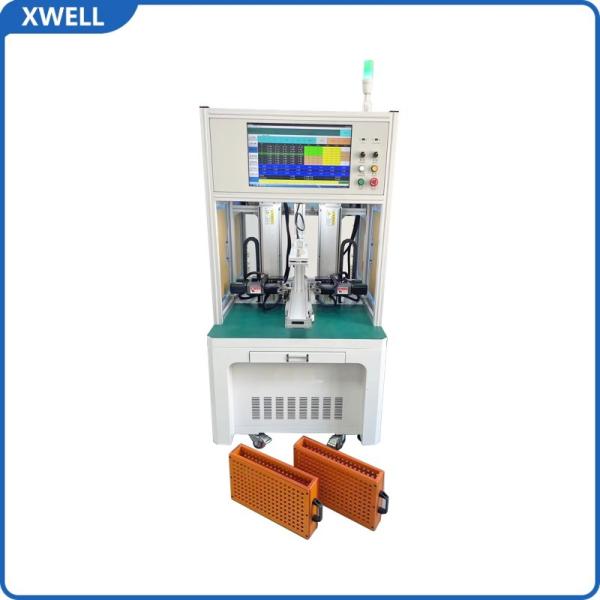

Double Side Numerical Control Spot Welding Machine With 5000A 8000A Inverter Spot Welder
Double Side Numerical Control Spot Welding Machine With 5000A 8000A Inverter Spot Welder
Specifications
Brand Name :
XWELL
Model Number :
XW-ADW
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
10000-1000000USD/Negotiable
Payment Terms :
D/A,D/P,T/T,L/C
Supply Ability :
30 pcs a month
Delivery Time :
7-15days
Packaging Details :
wooden case
Warranty :
1 year
Order(Moq) :
1set
Payment :
L/C D/A D/P T/T Western Union
Machine Size :
900L*1200W*1600Hmm
Description

Automatic Double Sides Numerical Control Spot Welding Machine With 5000A/8000A DC Inverter Welding Power Supply

  • quipment Introduction

    It is suitable for electric vehicle battery pack, automobile battery module, street lamp battery, balance car battery pack, scooter battery pack, mobile power supply, startup battery pack module, power tool battery pack, notebook battery pack, etc!

    Features

    1. Support breakpoint start, support automatic start and manual start mode conversion.

    2. Simple programming, support any point programming and array programming, can realize jump spot

    welding, single point, double point mode fast switching, spot welding path optimization, improve efficiency, local disk can store 99 groups of programming files, USB interface can import graphics.

    3. The spot welding head takes the center point of two welding pins as the circle center, and the angle is continuously adjustable, which is suitable for spot welding of various special-shaped split connection pieces.

    4. The system is divided into operator, administrator, super user and so on. It is convenient to use, manage and maintain butt welding machine.

Specification

Welding Head Number 2
Welding Head Types Rotary Welding Head
Rotation Function of Welding Head The welding head supports positive and negative rotation, and is suitable for spot welding of
special-shaped batteries and anti-sticking needle function.
Rotary Welding Head R:180º

The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel Y: 500mm; Z; Z2:350mm
Welding Speed 0.35s/spot,3600pcs/h
Welder Power Suppler 5000/8000A Inverter Spot Welder
Max Motor Speed 1000mm/s
Max Battery Number 200-600 pcs cells
User Interface Touch screen
Power Supply 220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material Pure nickel sheet: 0.03-0.2mm

Nickel-plated steel strip :0.03-0.3mm
