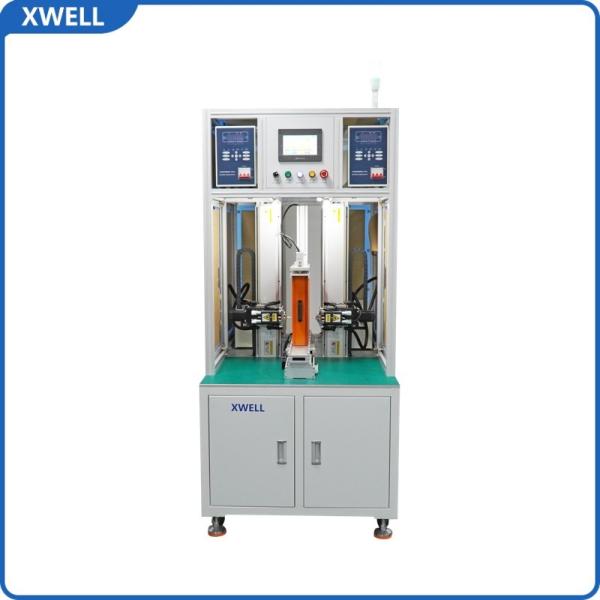

5000A 8000A Double Side Rotary Welding Head Automatic Spot Welding Machine
5000A 8000A Double Side Rotary Welding Head Automatic Spot Welding Machine
Specifications
Brand Name :
XWELL
Model Number :
XW-ADW
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
10000-1000000USD/Negotiable
Payment Terms :
D/A,D/P,T/T,L/C
Supply Ability :
30 pcs a month
Delivery Time :
7-15days
Packaging Details :
wooden case
Compliance :
CE Certified
Input Power :
2KW
Payment :
L/C D/A D/P T/T Western Union
Description

5000A/8000A DC Welding Power Supply Double Side Rotary Welding Head Automatic Spot Welding Machine

Advantages

1) Induce load voltage, control voltage by feedback, and realize high quality welding.

2) Preheat, Main Heat's power mode, preheating before welding, to ensure stable welding quality.

3) Keep the continuity of energy density, shorten the welding time, and reduce the deformation and color of base metal. (Welding time controlled in microseconds, continuous output mode)

4) Easy to change from low current to high current, suitable for precision welding.

5) The upper and lower limits of current can be set to simply judge whether the welding quality is good or not, which is suitable for welding automation platform.

6) The welding current rises with the time of electrification to ensure the welding effect.

Operation:

1.Setting the parameters of welding on the touch screen. (The same product only need to be set once)

2.Put the fixture with the battery pack on the quick clamping position.

3.Press the start button, the machine automatically complete all welding actions.

4.The welder sound to prompt operator replacement of new fixture (battery pack).

Specification

Welding Head Number 2
Welding Head Types Rotary Welding Head
Rotation Function of Welding Head The welding head supports positive and negative rotation, and is suitable for spot welding of
special-shaped batteries and anti-sticking needle function.
Rotary Welding Head R:180º

The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel Y: 500mm; Z; Z2:350mm
Welding Speed 0.35s/spot,3600pcs/h
Welder Power Suppler 5000/8000A Inverter Spot Welder
Max Motor Speed 1000mm/s
Max Battery Number 200-600 pcs cells
User Interface Touch screen
Power Supply 220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material Pure nickel sheet: 0.03-0.2mm

Nickel-plated steel strip :0.03-0.3mm
