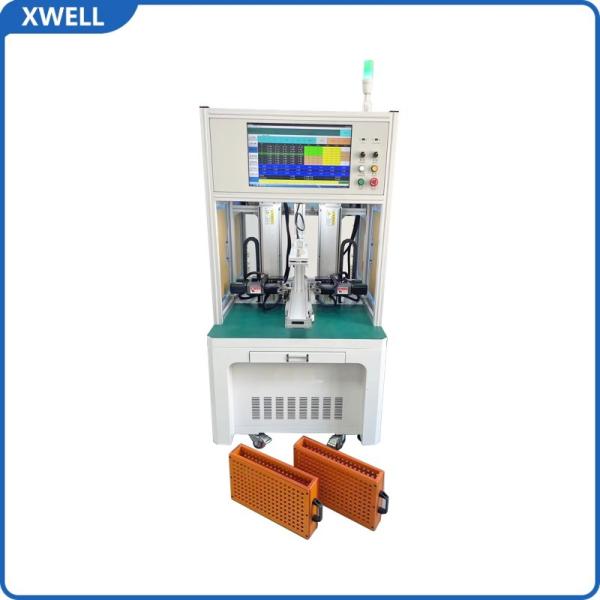

18650 Double Side Battery Pack Spot Welding Machine 2KW
18650 Double Side Battery Pack Spot Welding Machine 2KW
Specifications
Brand Name :
XWELL
Model Number :
XW-ADW
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
10000-1000000USD/Negotiable
Payment Terms :
D/A,D/P,T/T,L/C
Supply Ability :
30 pcs a month
Delivery Time :
7-15days
Packaging Details :
wooden case
Type :
Automatic
Input Power :
2KW
Payment :
L/C D/A D/P T/T Western Union
Description

Double Side Battery Pack Spot Welding Machine For 18650

Working Principle
This type of spot welder operates based on the principle of resistive welding. It uses high - current and low - voltage electricity to generate heat at the contact points between the welding electrodes and the workpiece. The heat produced is sufficient to melt the metal surfaces, forming a strong and reliable weld joint. In the case of double - sided spot welding, two electrodes are applied simultaneously on both sides of the workpiece, ensuring uniform welding and better mechanical strength.
Applications
The battery pack double - sided spot welder is widely used in the battery manufacturing industry, especially for the production of lithium - ion battery packs, nickel - metal hydride battery packs, and other types of rechargeable battery packs. It is applicable to various applications, including electric vehicles, energy storage systems, portable electronic devices, and more. In these applications, the reliable connection of battery cells and components is crucial for the performance and safety of the entire battery pack.
In conclusion, the battery pack double - sided spot welder is an indispensable device in the battery manufacturing process. Its high - precision welding capabilities, double - sided welding design, automation features, and safety - reliable performance make it an ideal choice for ensuring the quality and reliability of battery packs.
Features

1. Support breakpoint start, automatic start, and manual start.

2. Cold solder joint and sealing off alarm.

3. Easy program, support matrix, array and point program, can store 99 group parameters.

4. Welding needle abrasion alarm.

5. Build-in welding current monitor, can display real time welding current.

6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.

7. High productivity: 0.35s/spot

8. Can be matched with the production line of lithium battery group.

9. Automatic battery pack spot welder adopts traditional pneumatic single point dynamic, ensure the welding accuracy, and improve the welding appearance quality and reliability.

10. Can store dozens process of different battery packs product, switching products without re-setting parameters.

11. Can match a variety brand of spot welders.

Specification

Welding Head Number 2
Welding Head Types Rotary Welding Head
Rotation Function of Welding Head The welding head supports positive and negative rotation, and is suitable for spot welding of
special-shaped batteries and anti-sticking needle function.
Rotary Welding Head R:180º

The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel Y: 500mm; Z; Z2:350mm
Welding Speed 0.35s/spot,3600pcs/h
Welder Power Suppler 5000/8000A Inverter Spot Welder
Max Motor Speed 1000mm/s
Max Battery Number 200-600 pcs cells
User Interface Touch screen
Power Supply 220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material Pure nickel sheet: 0.03-0.2mm

Nickel-plated steel strip :0.03-0.3mm
