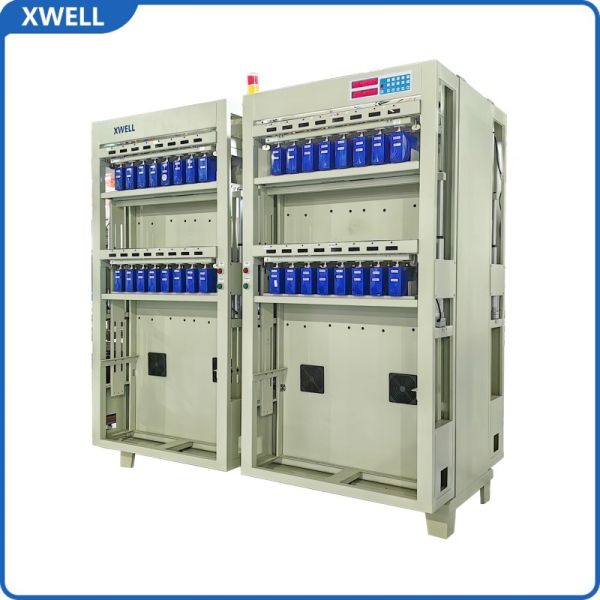

32 Channel Prismatic Battery Testing Machine Cell Grading Machine
32 Channel Prismatic Battery Testing Machine Cell Grading Machine
Specifications
Brand Name :
XWELL
Model Number :
XW-5V120A32CH
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
$4000-$6000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100PCS a month
Delivery Time :
7-15days
Packaging Details :
wooden case
Model :
XW-5V120A32CH
Brand :
XWELL
Current range :
120A
voltage :
5V
Compliance :
CE Certified
Description

32 Channel Prismatic Battery Testing Machine Cell Grading Machine

1. System features:

Single point independence, each battery has an independent constant current and constant voltage source, which is stable without impact.

The accuracy of the equipment is 0.05% and the stability is high.

The software has powerful functions and friendly man-machine interface.

Four wire test interface to ensure high measurement accuracy.

Modular design concept, easy to maintain.

The equipment structure is mainly composed of the following parts:

1,Independent CPU board and supporting keyboard board, front and rear double-sided independent operation, and the whole cabinet sends control uniformly ;

2,4-channel constant current and constant voltage control module ;

3,Bidirectional AC/DC inverter module.

4,Flat head clamp, electric automatic unclamping. Compatible crocodile clip.

2. System composition:

1. Lithium battery into capacity sharing equipment.

2. Computer with USB interface (self provided).

3,USB to 485 interface converter and conmmunication line.

4,Battery scanning system

5,Software.

Technical Parameters

Number of equipment channels The whole machine has 32chs
Case color Standard gray / black (customizable)
Clamp type Custom
Working power supply Three phase five wire AC380V土10%, 50Hz
Voltage measurement range DC 0~5V
Current range Charge DC 6120mA～120A; Discharge DC 120mA～120A
Negative pressure range (-100KPa-0)adjustable
Data processing Can record voltage, current, time, capacity etc,
automatically calculate constant current charging ratio,
capacity loss, discharge efficiency, average voltage, median
voltage, provide data curve and cycle diagram; can output text,
excel,word or mdb format data file
Charging mode Constant current; constant pressure; constant current & pressure
Charging cut-off conditions Voltage, current, time, capacity
Protection function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity
protection, power off protection, data breakpoint recovery
