512 Channel 5V 6A Lithium Polymer Battery Charge Discharge Capacity Tester
512 Channel 5V 6A Lithium Polymer Battery Charge Discharge Capacity Tester
Specifications
Brand Name :
XWELL
Model Number :
XW-5V3A512CH
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
1000-100000USD/Negotiable
Payment Terms :
T/T
Supply Ability :
100 pcs per month
Delivery Time :
10-15 working days
Packaging Details :
Wooden box
Voltage Range :
2.5V–5V
Current Accuracy :
±0.1% FS.
Temperature Control :
25±2°C (critical for stable readings).
Channel :
512
Lead Time :
7-15days
Description

512 Channel 5V 6A Lithium Polymer Battery Charge Discharge Capacity Tester

This battery testing machine can be used for cylindrical battery capacity, internal resistance, charging and discharging test, etc.(Optional: Battery tester with tray loading and Energy feedback function.)

1. Each channel can be started and stopped at a single point, and the response speed is fast.

2. The operation is simple, convenient and intuitive.

3. Modular design, easy to maintain..

4. The digital current and voltage automatic calibration function.

5. Using network connection and SQL database.

6. The hardware technology is advanced, stable and durable.

7.Suitable for testing 18650,21700,26650,32650,32700 battery cell.

Specification:

Channel voltage and
current		 5V/3A
Channel number 512 Channnels
Parallel unit number per channel 1
Input AC type
3 phase AC380V ±10%/50Hz
Maximum input power 14KW
Noise ≤65dB
AC power supply wiring mode
Three-phase five wire connection
The power factor of
power supply		 ≥0.99(The load power is more than 30% of rated power)
Total current distortion rate
THD≤5%
Constant voltage setting
range		 Charging:0.02V~5V
Minimum discharge voltage Discharging:1V~5V
Measuring range 0V~5V
The voltage resolution 0.1mV
The voltage resolution 0.1mV
Charging current setting range 0.02A~3A
Discharging current setting range 0.02A~3A
Measuring range 0A~3A
Single channel maximum
output power		 30W

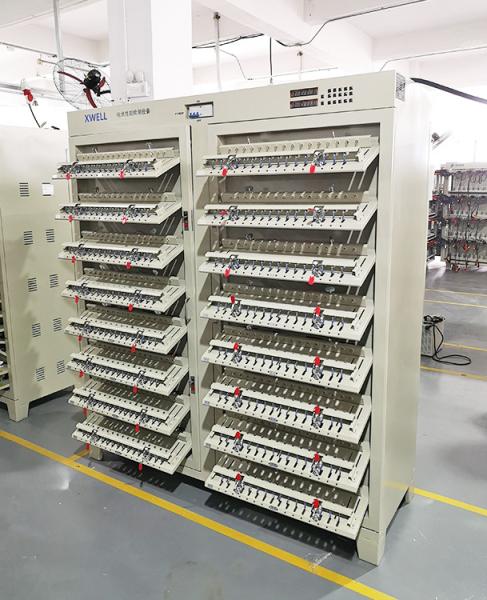

Machine picture:

512 Channel 5V 6A Lithium Polymer Battery Charge Discharge Capacity Tester
