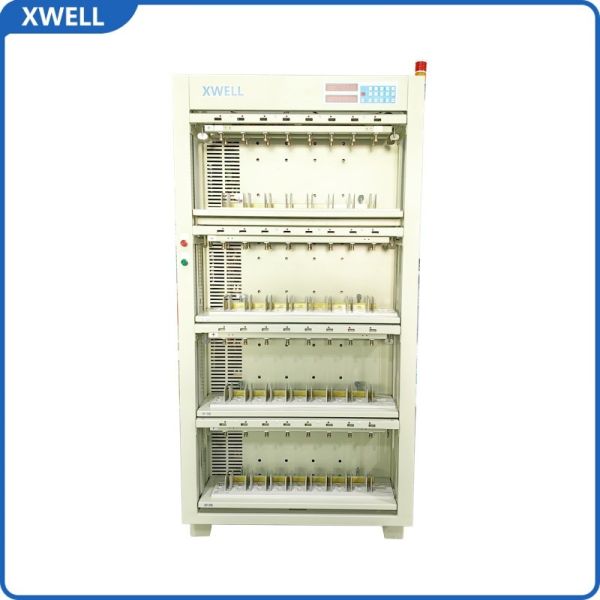

Prismatic Cell Capacity Grading Machine
Prismatic Cell Capacity Grading Machine
Specifications
Brand Name :
XWELL
Model Number :
XW-5V120A32CH
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
$4000-$6000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100PCS a month
Delivery Time :
7-15days
Packaging Details :
wooden case
Model :
XW-5V120A32CH
Brand :
XWELL
Current range :
120A
voltage :
5V
Compliance :
CE Certified
Description

Prismatic Cell Capacity Grading Machine

Products Description

Energy-feedback Prismatic Cell Capacity Grading Machine is used to test the charge and discharge performance of lithium-ion batteries,which can feed back the energy generated by battery discharge to the power grid, so as to achieve the purpose of energy conservation.

Equipment Structure

1.Independent CPU board, double keyboard board, front and back double side operation, the whole cabinet unified transmission control;

2.4-channel constant current and constant voltage control module

3.Two way AC / DC invertor module;

4.Pneumatic automatic clamping mode.

Technical Parameters

Number of equipment channels The whole machine has 32chs
Case color Standard gray / black (customizable)
Clamp type Custom
Working power supply Three phase five wire AC380V土10%, 50Hz
Voltage measurement range DC 0~5V
Current range Charge DC 6120mA～120A; Discharge DC 120mA～120A
Negative pressure range (-100KPa-0)adjustable
Data processing Can record voltage, current, time, capacity etc,
automatically calculate constant current charging ratio,
capacity loss, discharge efficiency, average voltage, median
voltage, provide data curve and cycle diagram; can output text,
excel,word or mdb format data file
Charging mode Constant current; constant pressure; constant current & pressure
Charging cut-off conditions Voltage, current, time, capacity
Protection function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity
protection, power off protection, data breakpoint recovery

Product Details

Prismatic Cell Capacity Grading Machine
