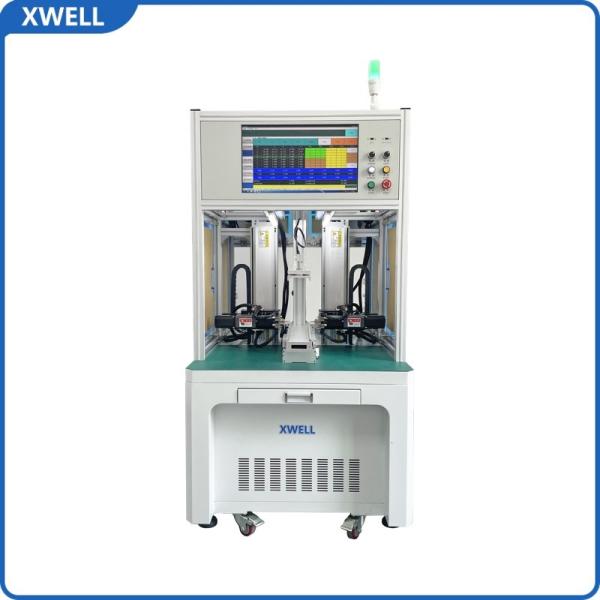

5000A Automatic Double Sides Rotary Welding Head Battery Pack Spot Welding Machine With PLC Control System
5000A Automatic Double Sides Rotary Welding Head Battery Pack Spot Welding Machine With PLC Control System
Specifications
Order(Moq) :
1set
Warranty :
1 year
Brand Name :
XWELL
Model Number :
XW-ADW
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
10000-1000000USD/Negotiable
Payment Terms :
D/A,D/P,T/T,L/C
Supply Ability :
30 pcs a month
Delivery Time :
7-15days
Packaging Details :
wooden case
Payment :
L/C D/A D/P T/T
Machine Size :
900L*1200W*1600Hmm
Description
5000A Automatic Double Sides Rotary Welding Head Battery Pack Spot Welding Machine With PLC Control System
Product Features
  • Support breakpoint start, automatic start, and manual start.
  • Cold solder joint and sealing off alarm.
  • Easy program, support matrix, array and point program, can store 99 group parameters.
  • Welding needle abrasion alarm.
  • Build-in welding current monitor, can display real time welding current.
  • Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding.
  • High productivity: 0.35s/spot
Application Area

With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.

Specifications
Welding Head Number 2
Welding Head Types Rotary Welding Head
Rotation Function of Welding Head The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head R:180º
Adjustment Range The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel Y: 500mm; Z; Z2:350mm
Welding Speed 0.35s/spot,3600pcs/h
Welder Power Suppler 5000/8000A Inverter Spot Welder
Max Motor Speed 1000mm/s
Max Battery Number 200-600 pcs cells
User Interface Touch screen
Power Supply 220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material Pure nickel sheet: 0.03-0.2mm
Nickel-plated steel strip: 0.03-0.3mm
Product Image
5000A Automatic Double Sides Rotary Welding Head Battery Pack Spot Welding Machine With PLC Control System
