7KW OCPP AC EV Charging Pile Wall Mounted Charger
7KW OCPP AC EV Charging Pile Wall Mounted Charger
7KW OCPP AC EV Charging Pile Wall Mounted Charger
7KW OCPP AC EV Charging Pile Wall Mounted Charger
7KW OCPP AC EV Charging Pile Wall Mounted Charger
7KW OCPP AC EV Charging Pile Wall Mounted Charger
7KW OCPP AC EV Charging Pile Wall Mounted Charger
7KW OCPP AC EV Charging Pile Wall Mounted Charger
Specifications
Brand Name :
Essence
Model Number :
EVP7
Certification :
TUV CE
Place of Origin :
China
MOQ :
1
Price :
USD200~400/unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/month
Delivery Time :
20days
Packaging Details :
1units/pck
Model Nunber :
EVP7
Type :
AC Charger, Slow charger
Input Current :
32A
Maxium output Power :
7KW
Input Voltage :
230Vac
Charging Mode :
Mode 3
Operating Temperature :
-25~50C
Operating Humidity :
5~95%
Max Effeciency :
94%
Dimension :
250*139*445mm
Degree Protection :
IP54
Installation :
Wall Mounted
Description

AC EV charger 7KW Mode 3 Charging Mode Electric Car 11kw Power Wall Mounted Ev charger

Product Parameters:

Techanical Ratings
AC Input
Connection type U/V/W+N+PE
Input voltage 230Vac
Input frequency 50Hz±10%
Rated power 7kW
Max input current 32A
Power factor ≥0.98, Maximum value
Max. efficiency >94%
Charging Interface
Vairant-A Type 2 cable, 4M
Vairant-B Type 2 socket without shutter
Charging Mode Mode 3
HMI
Access Control RFID, APP, CARD
LED Operating status
Wireless network WIFI 2.4GHz with OCPP 1.6J
Wired network RJ45, RS485
Protocol for backend3 --
Ambient Conditions
Operating temp, range -10°C~+50°C
Operating humidity 5-95%
Operating altitude ≤2000m
Mechanical Data
Dimension (W*D*H) 250*139*445mm
Degree of protection IP54
Charging cable length optional
Noise level ≤75dB
Installation Wall Mounted
Standard and Compliance
Charging System IEC 61851-1, IEC 62196-2
IEC 61851-21-2, IEC 61800-2, IEC 61800-4
EMC IEC61000-6-1 IEC61000-6-3
Certification mark TUV CE

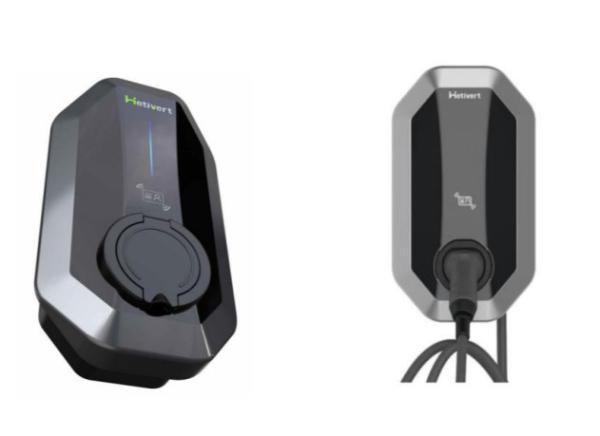

Products HD pictures:

7KW OCPP AC EV Charging Pile Wall Mounted Charger

7KW OCPP AC EV Charging Pile Wall Mounted Charger

7KW OCPP AC EV Charging Pile Wall Mounted Charger

Product Feasures:


AC Chargers we have:

Our R&D AND TECH TEAM:

Our Research Labs:
Our Testing:

Reference Projects:

Contact Form:
