3phase Type 2 EV Charging Pile 11kw Portable EVSE for Electric Car

Specifications

Brand Name :

Essence

Model Number :

EVP11

Certification :

TUV CE

Place of Origin :

China

MOQ :

Price :

USD200~400/unit

Payment Terms :

L/C, T/T, Western Union

Supply Ability :

1000pcs/month

Delivery Time :

20days

Packaging Details :

1units/pck

Model Nunber :

EVP11

Type :

AC Charger, Semi Fast charger

Input Current :

16A

Maxium output Power :

11KW

Input Voltage :

400V+10%

Charging Mode :

IEC61851-1

Operating Temperature :

-25~50C

Operating Humidity :

5~95%

Max Effeciency :

94%

Dimension :

250*139*445mm

Degree Protection :

IP54

Installation :

Wall Mounted

Description

3phase type 2 Charger for Electric Car 11kw Power with 4m cables portable Ev charger

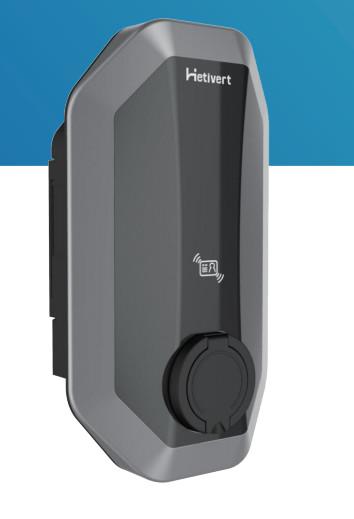

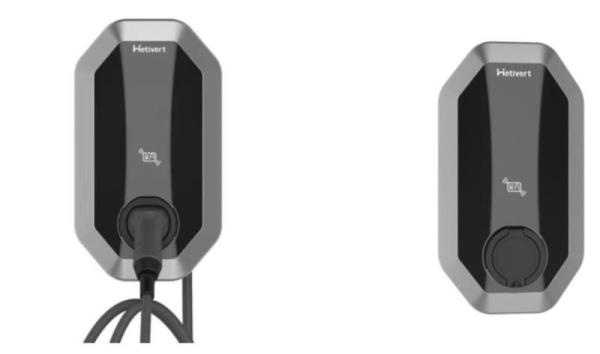

Products HD pictures:

3phase Type 2 EV Charging Pile 11kw Portable EVSE for Electric Car

Product Feasures:

Product Parameters:

Techanical Ratings
AC Input
Connection type		U/V/W+N+PE
Input voltage		400V±10%
Input frequency		50Hz±10%
Rated power		11kW
Max input current		16A
Power factor		≥0.98, Maximum value
Max. efficiency		>94%
Charging Interface
Vairant-A		other cable length optional
Vairant-B		--
Charging Mode		IEC61851-1
DC Output - When both guns are used for charging at the same time
HMI
Access Control		--
LED		--
Wireless network		--
Wired network		--
Protocol for backend3		--
Ambient Conditions
Operating temp, range		-10°C~+50°C
Operating humidity		5-95%
Operating altitude		≤2000m
Mechanical Data
Dimension (WDH)		250139445mm
Degree of protection		IP54
Charging cable length		optional
Noise level		≤75dB
Installation		Pedestal Mounting optional
Standard and Compliance
Charging System		IEC 61851-1, IEC 62196-2
		IEC 61851-21-2, IEC 61800-2, IEC 61800-4
EMC		IEC61000-6-1 IEC61000-6-3
Certification mark		TUV CE
