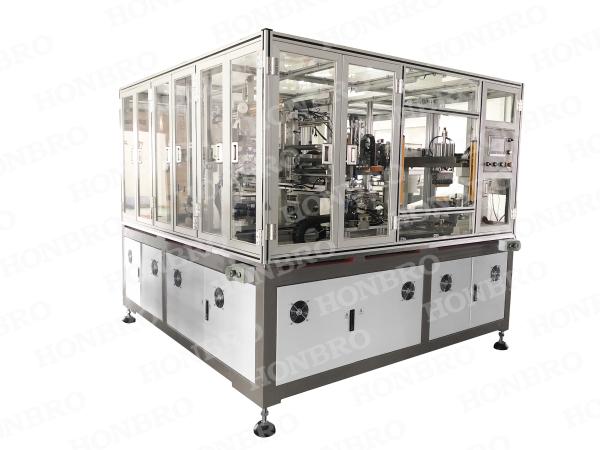

Li-Ion Battery Stacking Machine Assembling Pouch Cell
Li-Ion Battery Stacking Machine Assembling Pouch Cell
Specifications
Brand Name :
Honbro
Model Number :
150 Type
Certification :
CE certification
Place of Origin :
Dongguan, China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
350 sets/year
Delivery Time :
lab machine: 7-8 weeks, Mass production machine: 13-14 weeks
Packaging Details :
Fumigation-free wooden box and vacuum moisture-proof treatment
Separator cut-off and reverse closure time :
≤12S
Dusting mode :
The top of the equipment is equipped with FFU to remove dust
Separator electrostatic removal :
Standard
MES function :
It can dock with MES system
Description

CCD Stacking Machine , 150 Type , Cells Making

Function Description

  • This deviceis suitable for z-shaped lamination of anode and cathode plates and separator of lithium ion battery cell. The anode is folded first (the same side or the opposite side of anode and cathode ears). After lamination is completed, the separator is heated and side glue is attached
  • Optional configuration: pasting mode can be pasting side glue or flat glue, the end coil separator and the number of end coil coil can be set, the discharge of the cell can butt the whole line conveying line, it can be upgraded to a cutting and folding machine, the end of the cell dust removal after the separator is cut.

Technical Parameters

Item 150type
Electrode location mode Mechanical positioning
Single piece efficiency 0.5-1S/PCS
Compatible electrode size L70-150mm
L50-100mm
Stacking table structure Air Cylinder pressure claw
Ultrasonic missing Angle detection Standard
Alignment of adjacent electrode ≤±0.2mm
Overall alignment of electrode ≤±0.4mm
Alignment between the electrode and the adjacent separator ≤±0.4mm
Separator cut-off and reverse closure time ≤12S
Dusting mode The top of the equipment is equipped with FFU to remove dust
Separator electrostatic removal Standard
MES function It can dock with MES system
